| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF4H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:RHF4H orward

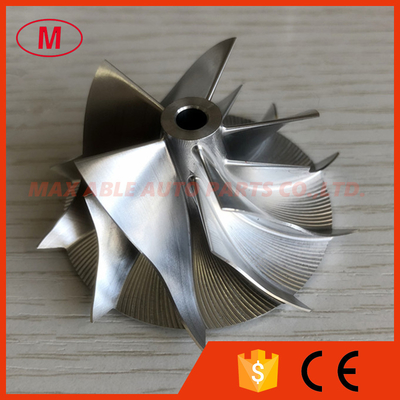

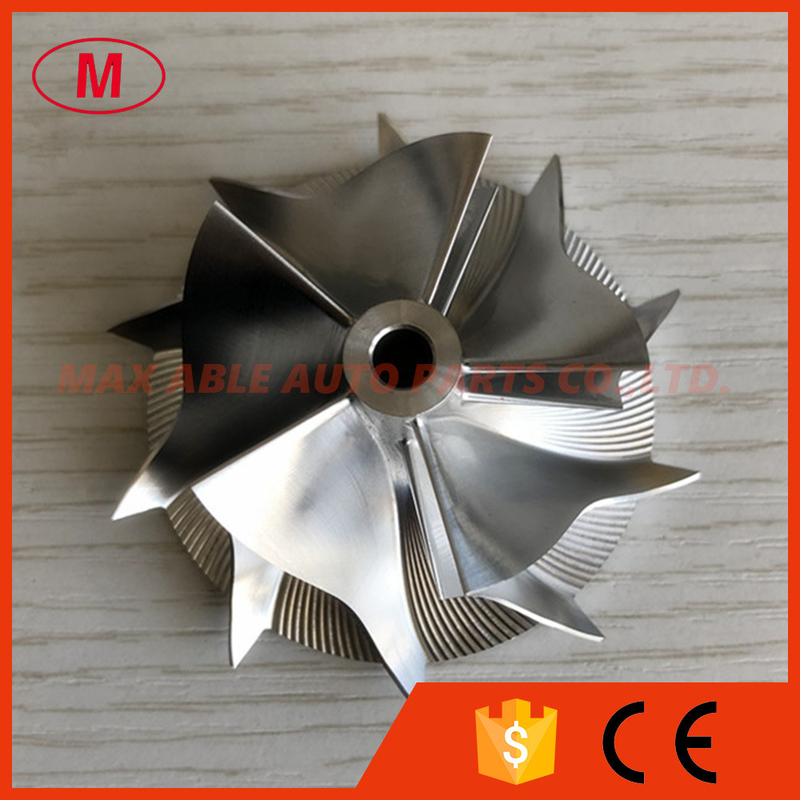

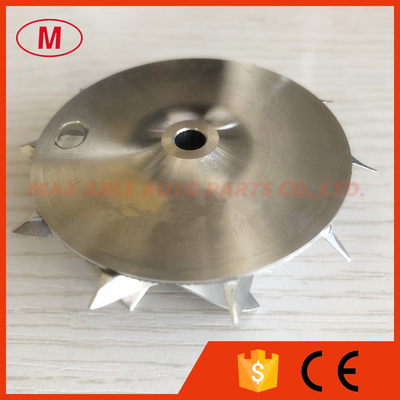

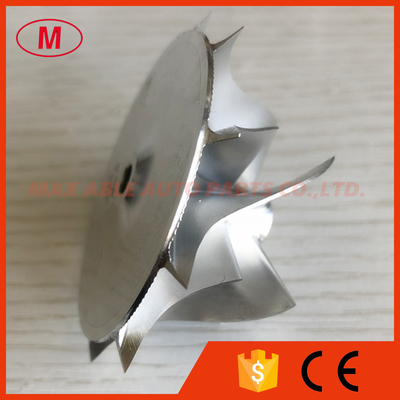

2.RHF4H 40.66/52.51mm 5+5 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:10.16mm
inducer:40.66mm
Exduder:52.51mm
Tapered tip:62.47mm
Tip height:3.20mm
Superback:1.42mm
Overall height:25.80mm
bore size :5.11mm
Trailing angle:60
Cutback:-13.00
Sp height angle:1.40
Splitter height:15.50
Blade height:25.90mm
5+5 blades
Forward rotation
Tapred tip angle:66.2 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
