| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | S200 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model: S200 foward

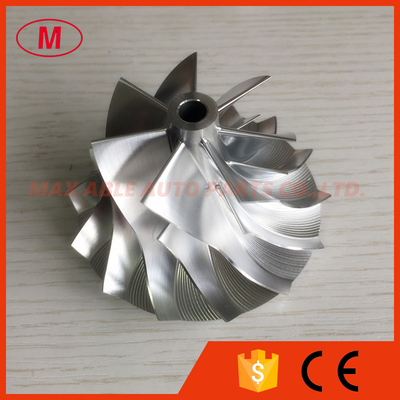

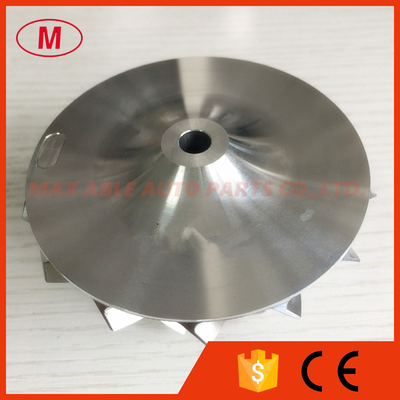

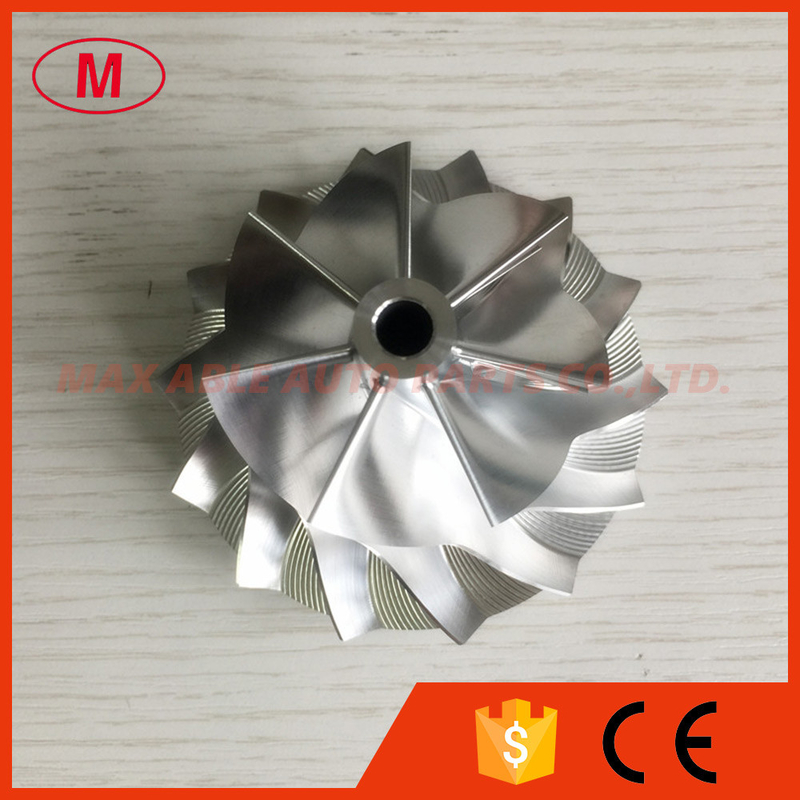

2.S200 51.80/77.10mm 7+7 blades high performance turbo aluminum 2618/milling/billet compressor wheel
3.SIZE:
Nose Diameter:12.60mm
inducer:51.80mm
Exducer:77.10mm
Tapered tip exducer:82.47mm
Tip height:5.65mm
Superback:6.05mm
Overall height:50.20mm
bore size :7.00mm
Trailing angle:45
Cutback:0.0
Sp height angle:-1.50
Splitter height:22.65
Blade height:39.65mm
7+7 blades
Foward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:30 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
