| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

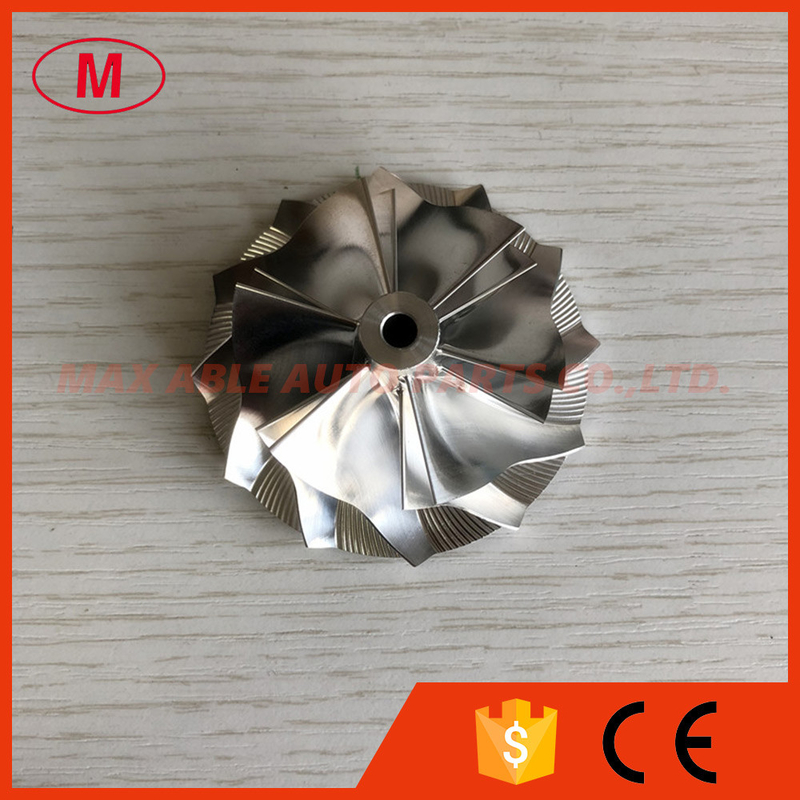

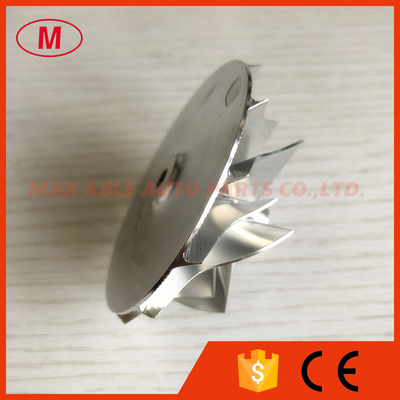

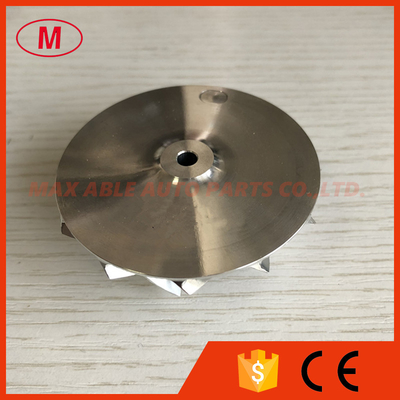

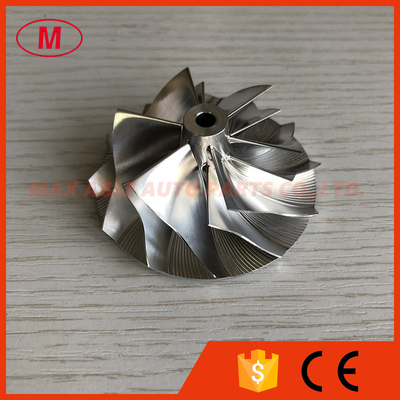

1.Model: K04 5306-123-2014 upgrade 5304-970-0064 upgrade 46.39/56.08mm 6+6 blades aluminum 2618/millining billet compressor wheel for turbo
2.turbo Part no.:53049700064 5304-970-0064 upgrade
Compressor Part number:5306-123-2014 53061232014 upgrade
3.SIZE:
Nose Diameter:10.91mm
inducer:46.39mm
Exducer:60.00mm
Tapered tip exducer:62.83mm
Tip height:3.90mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
Trailing angle:60
Cutback:0.0
Sp height angle:-2.50
Splitter height:14.60
Blade height:20.06mm
6+6 blades
Foward rotation
Standard size ,the exducer is larger,modified backplate
Tapered tip angle:26 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
