1. MODEL:RHF5 forward

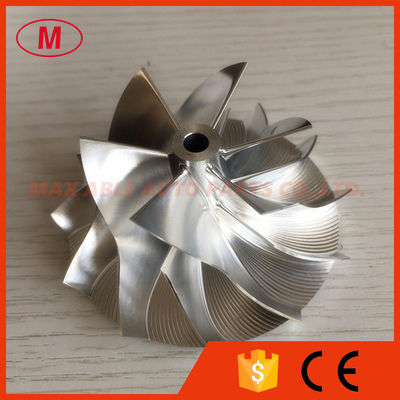

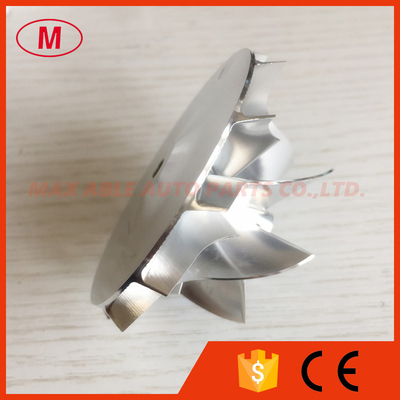

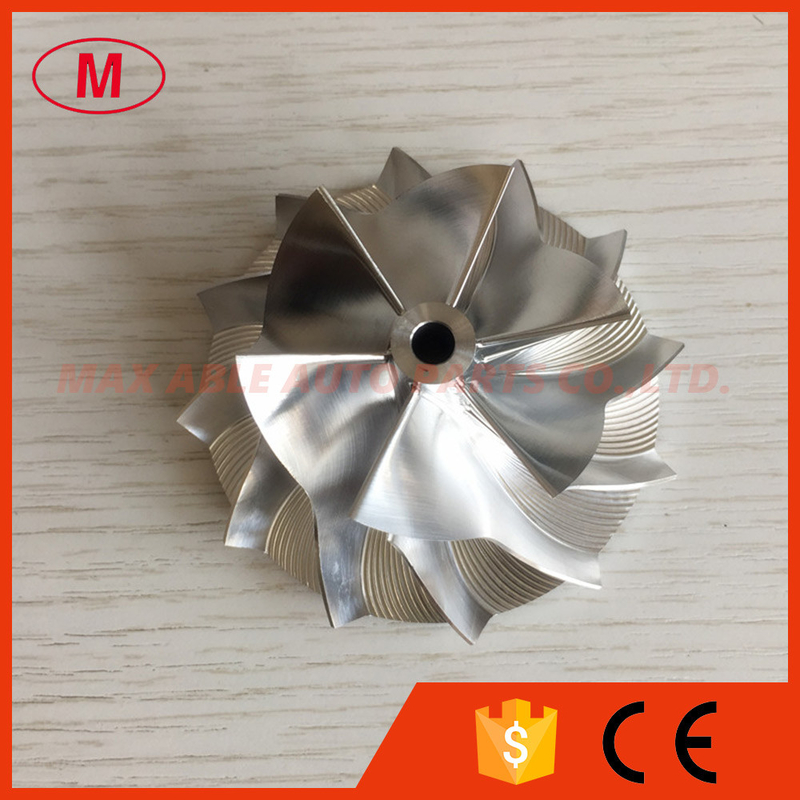

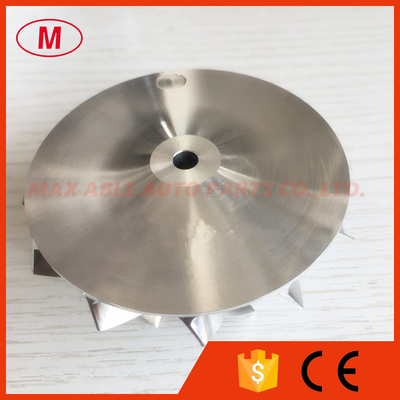

2.RHF5 6+6 blades 45.00/64.89mm high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:10.05mm
Inducer:45.00mm
exducer:64.89mm
Tapered tip exducer:70.86mm
Tip height :6.28mm
superback:1.85mm
Overall height:29.00mm
Bore size:5.10mm
Trailing Angle:60
Cutback:-19.3
SP height Angle:-8.50
Blade height:30.17mm
Splitter Height:15.00
6+6 blades
Tapered tip Angle:29.5 degree
It is Custom size,please check carefully before buying.
Forward rotation
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
