| Brand Name: | no |
| Certification: | ISO |
| Model Number: | TD05H 20G UPGRADE |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

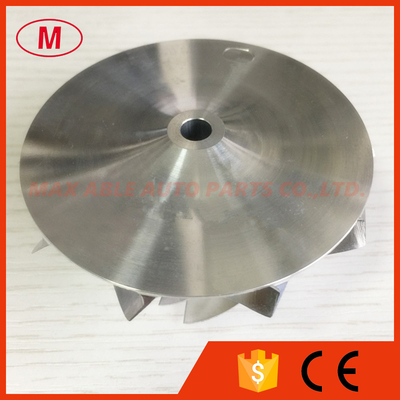

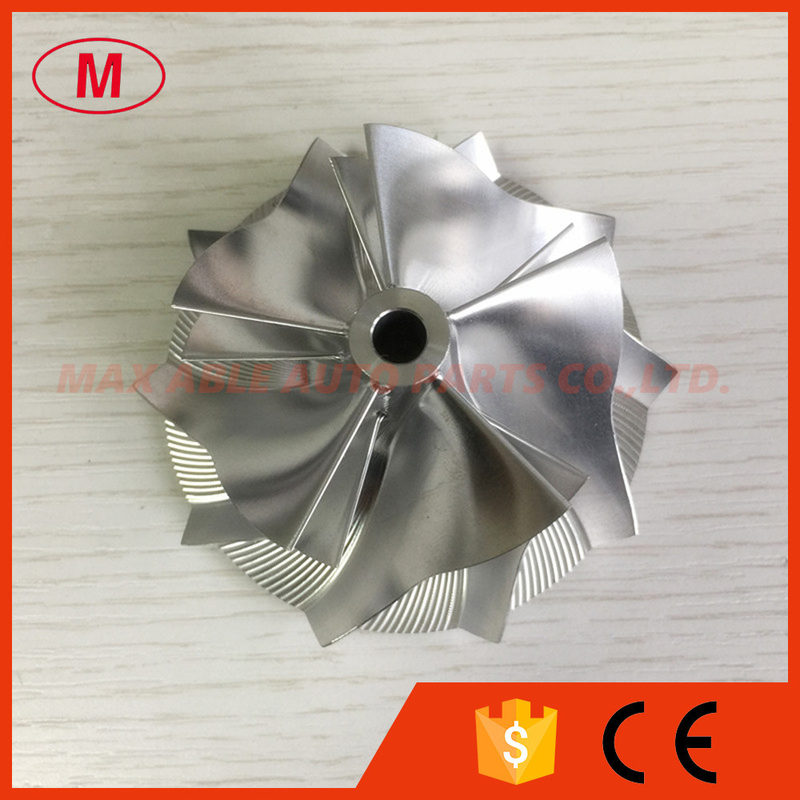

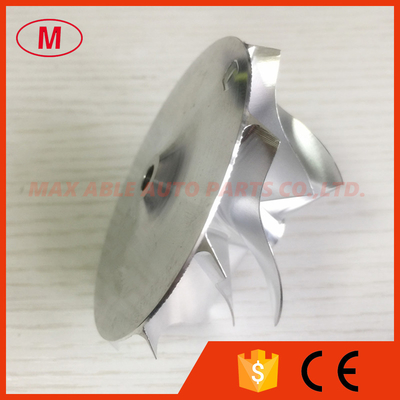

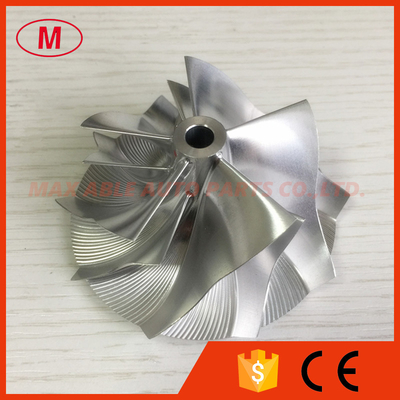

1. MODEL:TD05H 20G upgrade reverse
2.TD05H 20G upgrade reverse 56.58/73.04mm 5+5 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for MITSUBISHI
3.Size:
Nose diameter:12.06mm
inducer:56.58mm
Inducer:73.04mm
Tapered tip exducer:79.34mm
Tip height:6.46mm
Superback:2.90mm
Overall height:35.04mm
bore size :6.50mm
bore type:through
Trailing angle:50 degree
Cutback:1.0
Blades height:30.36mm
Splitter height:23.15mm
Sp height angle:-11.00
5+5blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet compressor wheels have been balanced
