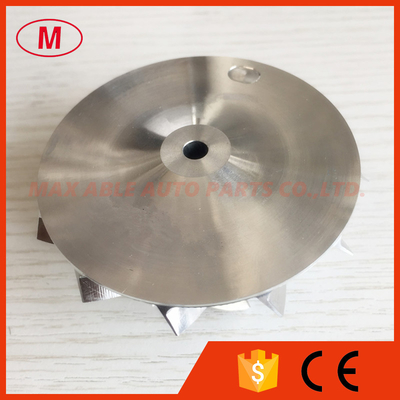

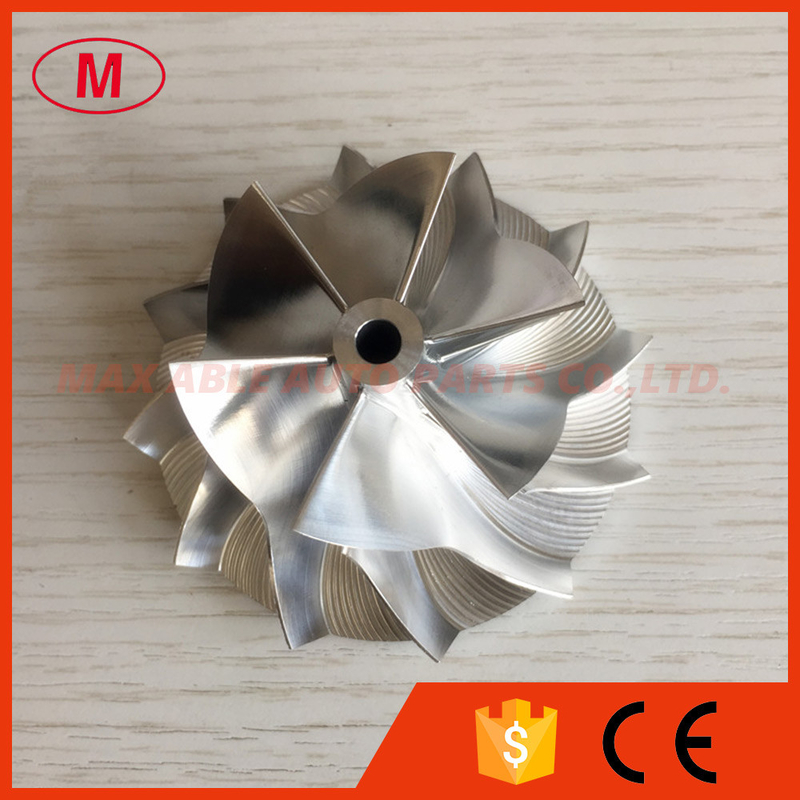

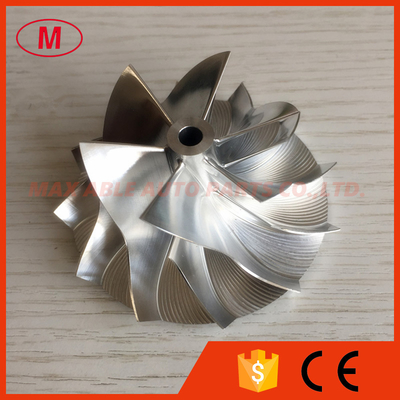

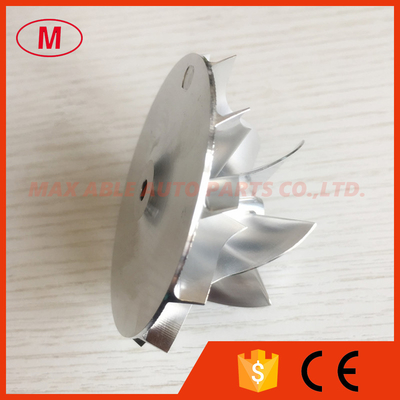

TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel

TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel

    • TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel
    • TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel
    • TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel
    • TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel
    • TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description


    1. MODEL:TD04HL forward
    2.TD04HL 6+6 blades 45.00/64.89mm high performance Turbocharger Billet/milling/aluminum 2628 compressor wheel
    3.Size:
    Nose Diameter:10.05mm
    Inducer:45.00mm
    exducer:64.89mm
    Tapered tip exducer:70.86mm
    Tip height:6.28mm
    Superback:1.85mm
    bore size :5.00mm
    Overall height:29.00mm
    Trailing angle:60
    Cutback:-19.3
    Blade height:30.17mm
    Sp Height angle:-8.50
    Splitter height:15.00mm
    6+6 blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip angle:29.5 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
