Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | CT26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:CT26 forward rotation

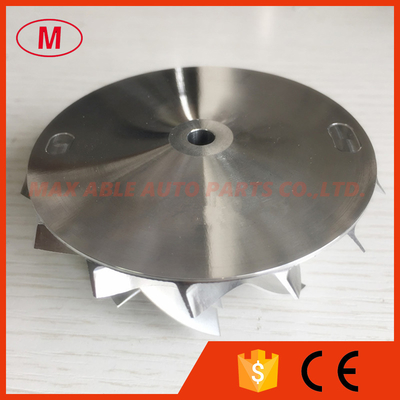

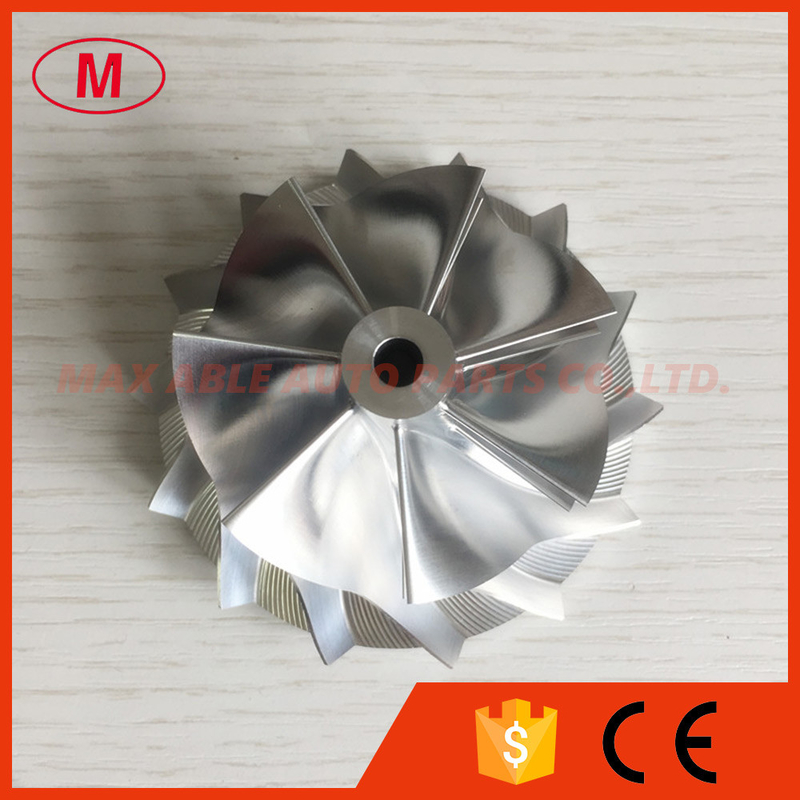

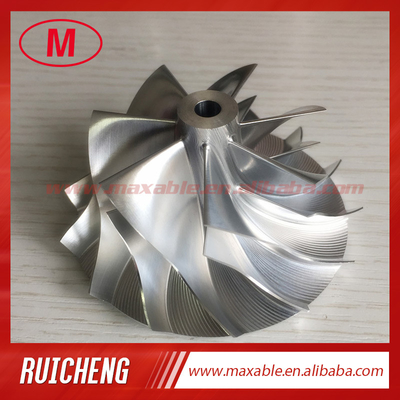

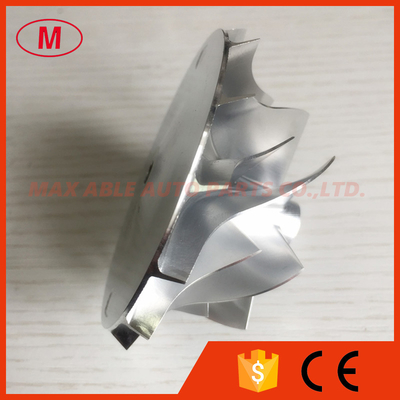

2.CT26 54.64/70.98mm 7+7 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.97mm
Inducer:54.64mm
Exducer:70.98mm
Tapered tip exducer:76.94mm
Tip height:6.16mm
super back:2.00mm
overall height:36.83mm
bore size :5.70mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
SP Height angle:-13.00
Blades height:29.88mm
Splitter height:20.10mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is Custom size,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
