| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF4H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF4H reverse

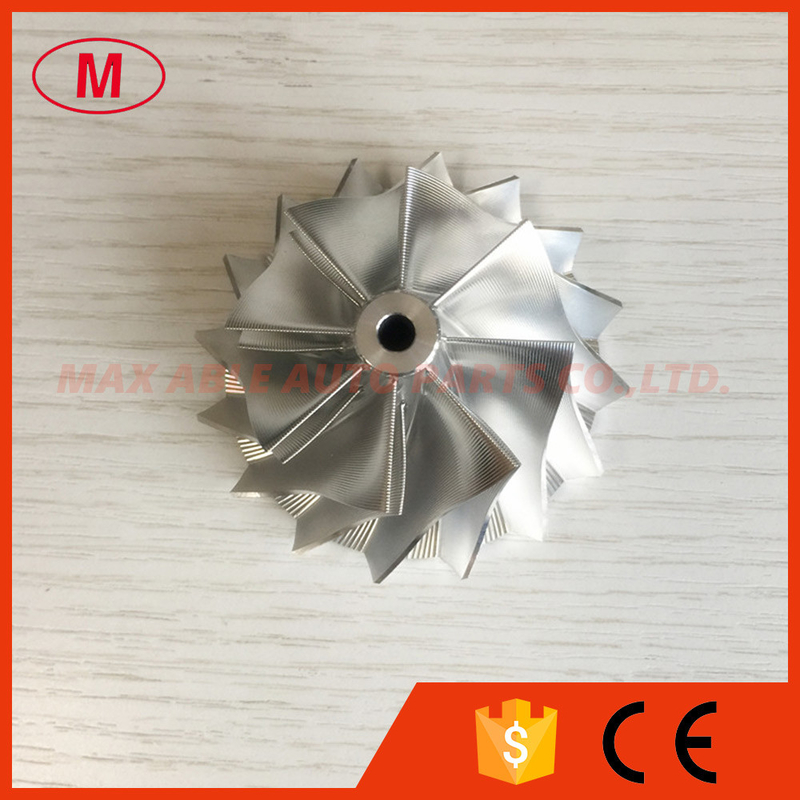

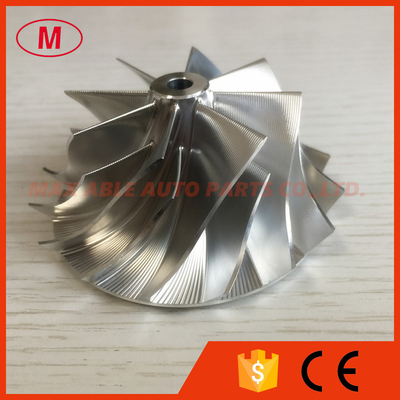

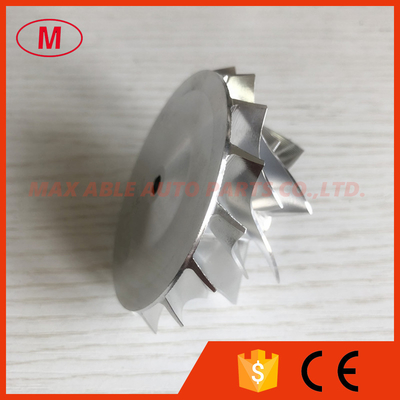

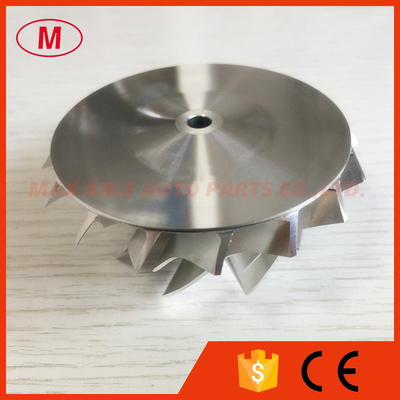

2.RHF4H 47.87/62.00mm 8+8 blades reverse Point milling turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:12.00mm
Inducer:47.87mm
exducer:62.00mm
Tapered tip Angle:33 degree
Tapered tip exducer:70.00mm
Tip height :7.15mm
superback:1.33mm
Overall height:32.00mm
Bore size:5.10mm
Trailing Angle:70
Cutback:0.0
SP height angle:0.00
Splitter height:20.70mm
It is Custom size,please check carefully before buying.
Blade height:28.90mm
8+8 blades
reverse rotation
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
