| Brand Name: | NO |
| Model Number: | TF08L-30KY |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TF08L-30KY

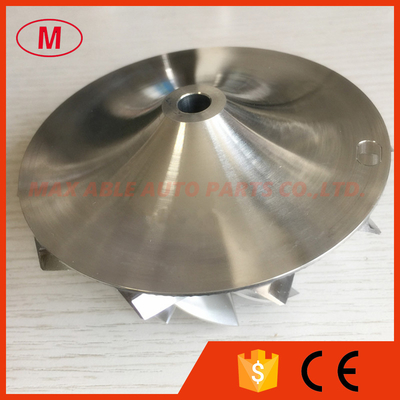

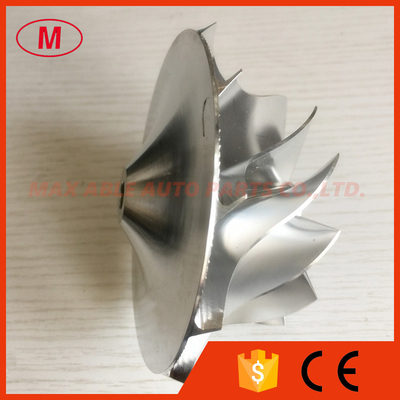

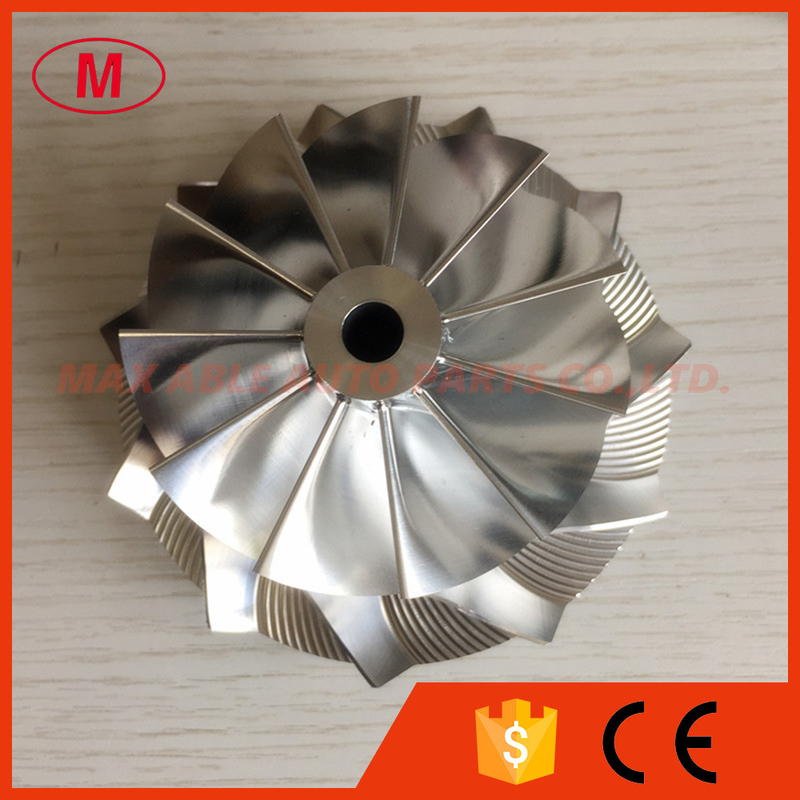

2.TF08L-30KY high performance 67.50/92.00mm 11+0 blades Turbo Billet/milling/Aluminum 2024 compressor wheel
3.Size:
Nose diameter:17.90mm
Inducer:67.50mm
Exducer:92.00mm
Tapered tip exducer:97.66mm
Tip height:5.90mm
Superback:11.00mm
Overall height:50.30mm
bore size :7.95mm
Trailing angle:60
Cutback:0.0
SP height angle:0.00
Splitter height:0.00
Blade height:36.98mm
11+0 Blades
foward rotation
Tapered tip angle:30 degree
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the bille wheel have been balanced.
