| Brand Name: | NO |
| Model Number: | RHF5HB |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5HB forward

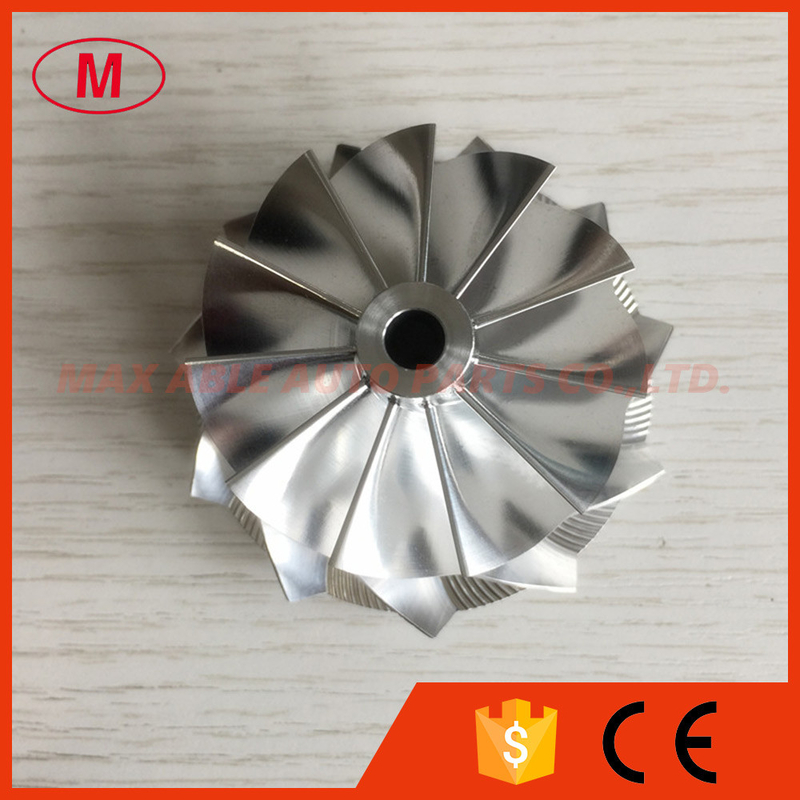

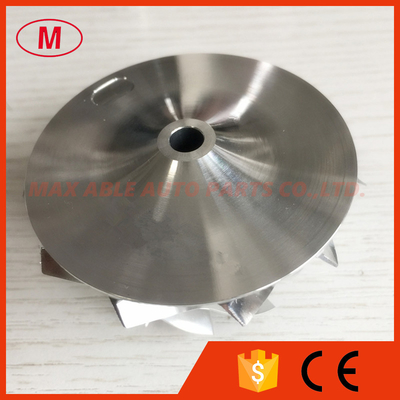

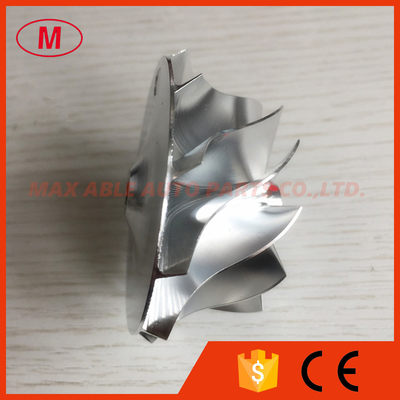

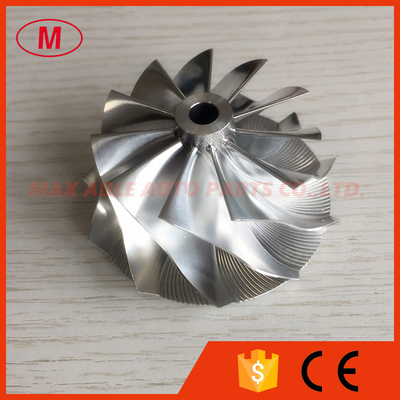

2.RHF5HB 11+0 blades high performance 48.50/59.94mm turbo turbocharger aluminum 2618/Billet/milling compressor wheel for VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52 Upgrade
3.Size:
Nose diameter:12.02mm
Inducer:48.50mm
exducer:59.94mm
Tapered tip exducer:64.92mm
Tip height :5.72mm
superback:3.71mm
Overall height:34.00mm
Bore size:6.10mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:27.05mm
11+0 blades
foward rotation
Tapered tip Angle: 30 degree
It is for custom size ,please check carefully before buying.
Application:
VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52 Upgrade
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
