Home ProductsBillet compressor wheel

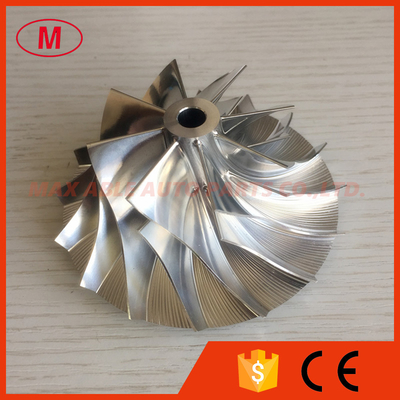

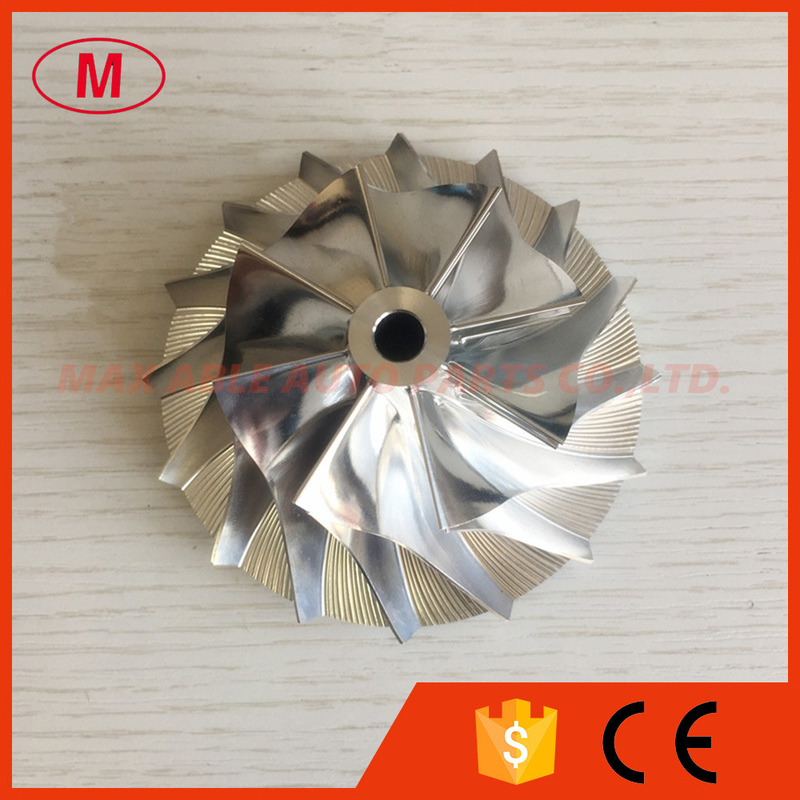

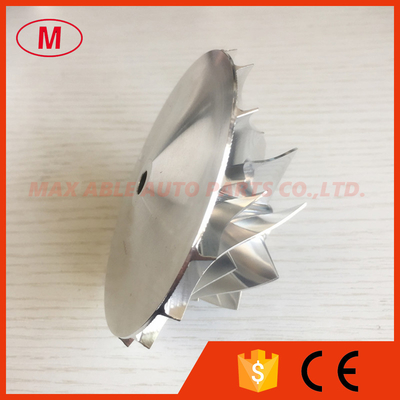

HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918

HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918

    • HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918
    • HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918
    • HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918
    • HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918
    • HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918

    Product Details:

    Brand Name: NO
    Model Number: HX40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:HX40 forward
    ​
    2.HX40 53.88/83.03mm 8+8 blades 3599594 high performance turbo Billet/milling/aluminum 2024 compressor wheel for 3593918/3599725/3598036/3599479/3596192/3598898/3596628/4036369/3593920/3592005

    3.Size:
    Nose diameter:14.11mm
    Inducer:53.88mm
    exducer:83.03mm
    Tapered tip exducer:87.86mm
    Tip height:5.18mm
    Superback:5.01mm
    bore size :7.00mm
    Overall height:39.86mm
    Cutback:3.0
    Trailing Angle:60
    Blade height:33.21mm
    8+8 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:30 degree

    Application:
    3593918
    3599725
    3598036
    3599479
    3596192
    3598898
    3596628
    4036369
    3593920
    3592005

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
