1. MODEL:S200 forward rotation

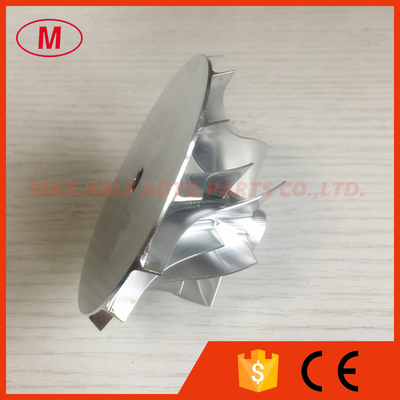

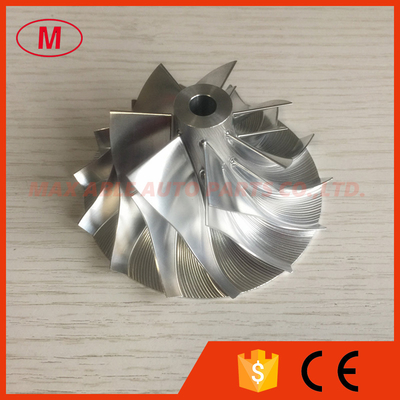

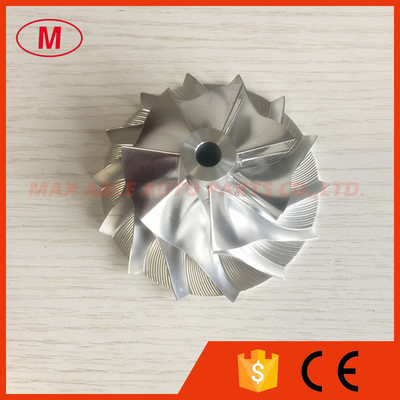

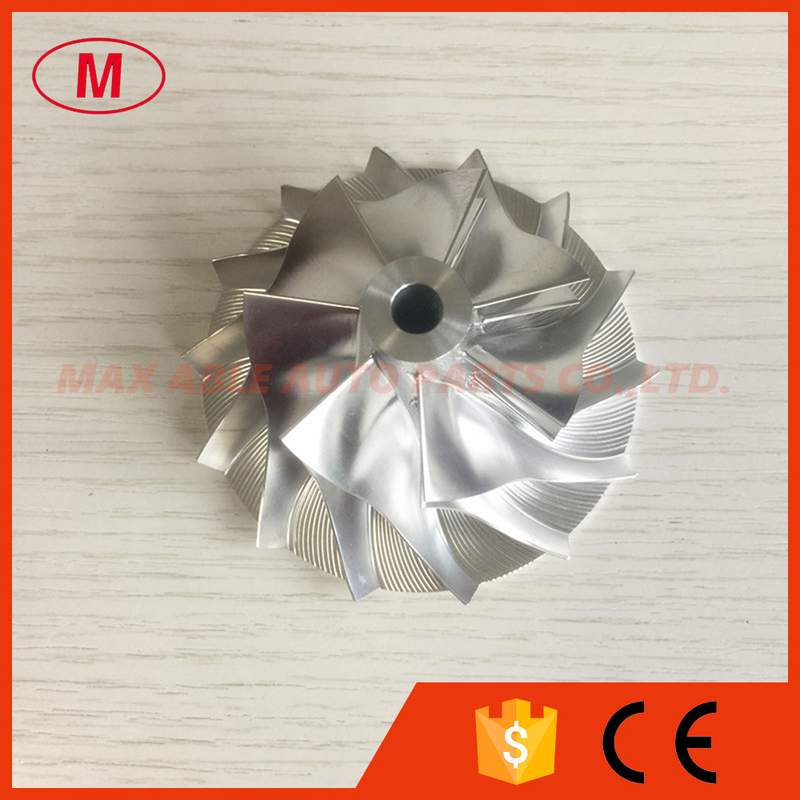

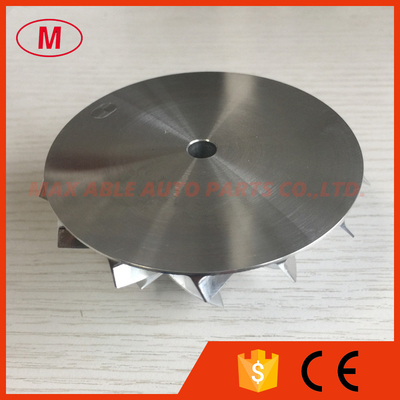

2. S200 50.60/75.20mm 7+7 blades High performance turbo billet/milling/aluminum compressor wheel
3.Size
Nose diameter:14.94mm
inducer:50.60mm
Exduder:75.20mm
Tapered tip:80.53mm
Tip height:5.82mm
Superback:0.00mm
Overall height:38.00mm
bore size:7.00mm
Trailing Angle:45
Cutback:6.0
Blade height:33.38mm
Tapered tip Angle: 30 degree
7+7 blades
Forward rotation
it is for custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
