Brand Name: | NO |
Model Number: | TE06H 16M |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TE06H 16M forward

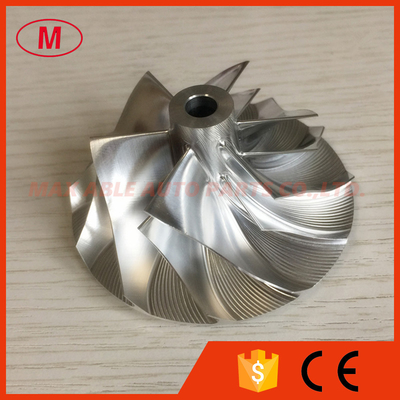

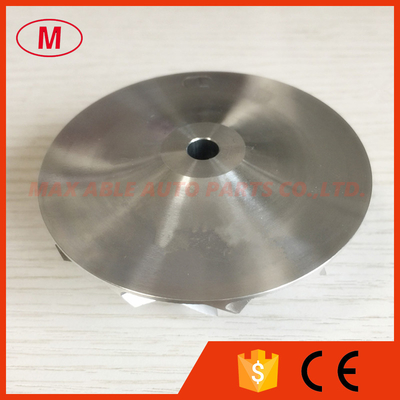

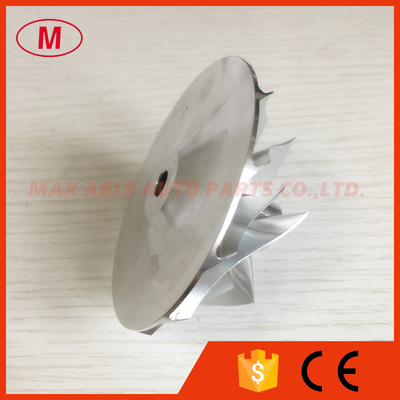

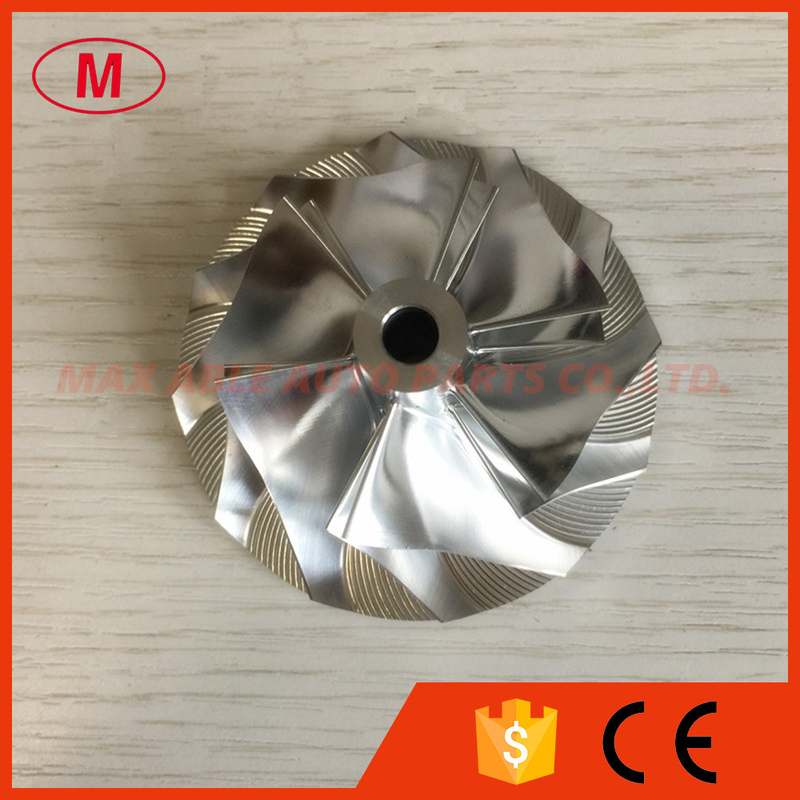

2.TE06H 16M 49185-40700 49185-01041 48.04/68.01mm 6+6 blades Turbo Billet/aluminum 2024/milling compressor wheel for 49179-02250
3.Size:
Nose diameter:13.50mm
Inducer:48.04mm
Exducer:68.01mm
Tip height:5.00mm
Superback:2.90mm
Overall height:31.50mm
bore size :6.50mm
Trailing Angle:45
Cutback:0.0
SP height angle:-4.50
Splitter height:15.55mm
Blade height :22.94mm
6+6 BLADES.
Forward rotation
Tapered tip angle:0 degree
FIT FOR OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
