| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT1252 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 38.40/52.00mm | Type: | Turbochargers |
|---|
1. MODEL:GT1252 forward

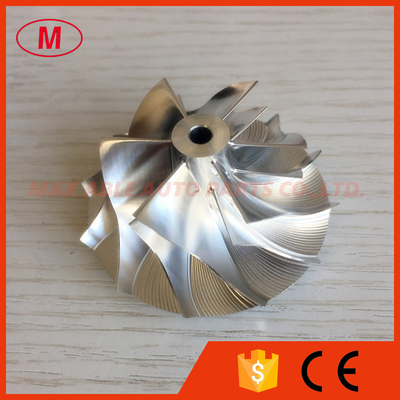

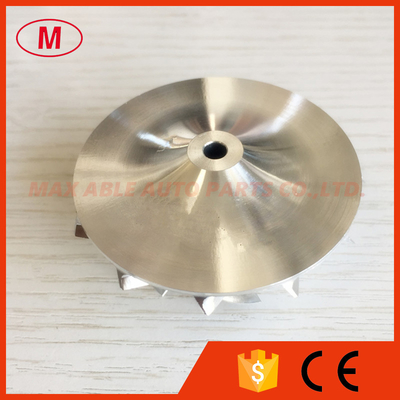

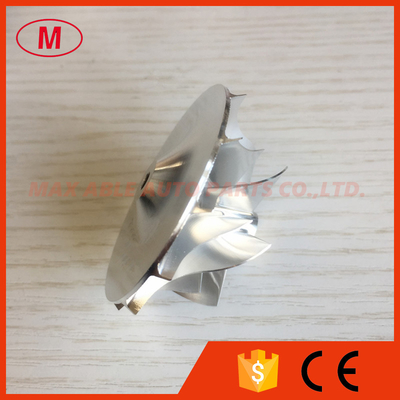

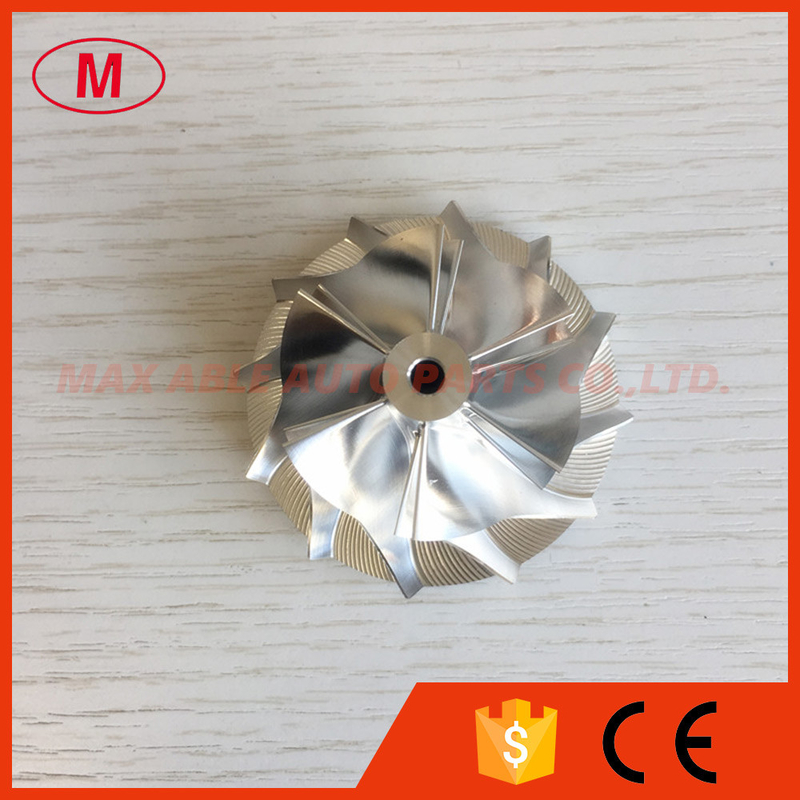

2.GT1252 786556-0002 Upgrade 38.40/52.00mm 6+6 blades high Performance for turbo Billet/aluminum 2618/milling compressor wheel for 783583-0004
3.Size:
Nose diameter:10.59mm
Inducer:38.40mm
Exducer:52.00mm
Tapered tip exducer:55.49mm
Tip height:3.91mm
Superback:3.90mm
Overall height:26.40mm
bore size :4.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
Blades height :20.35mm
Splitter height:14.55mm
SP height angle:-5.20
6+6 BLADES.
Forward rotation
Tapered tip angle:31 degree
It is custom size ,please check carefully before buying .
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
