| Model Number: | TD04H 15T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL 15T

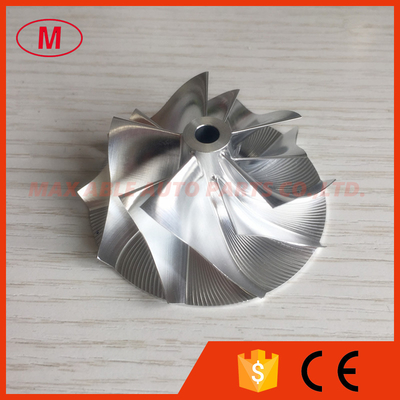

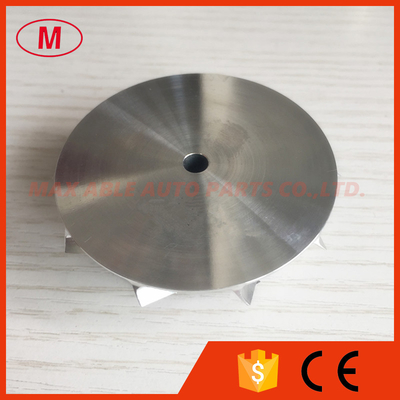

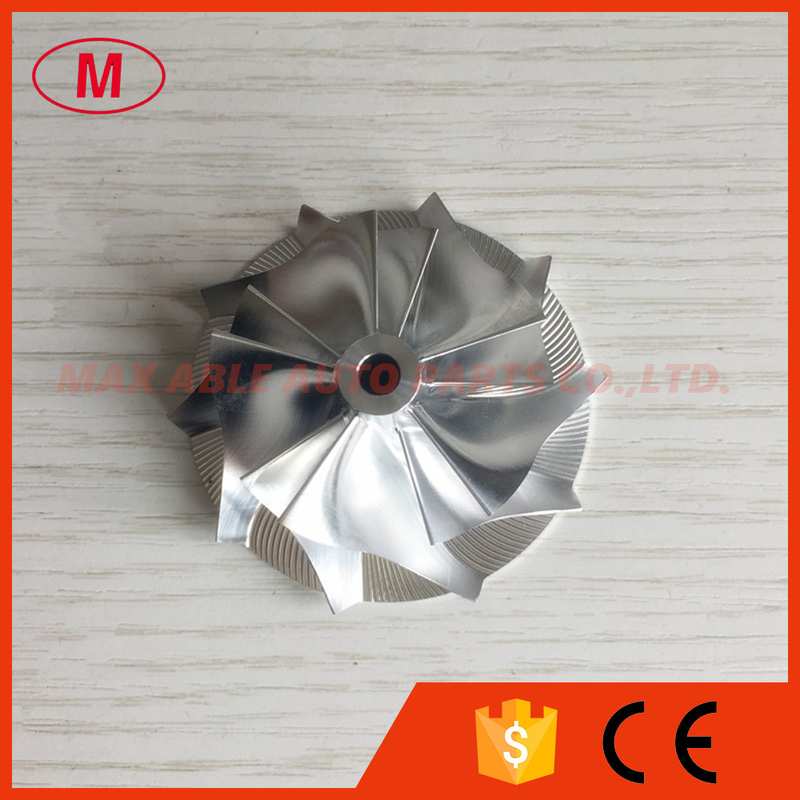

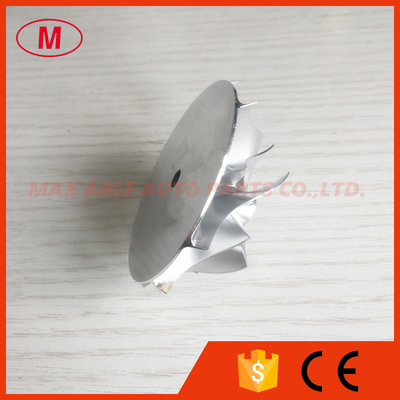

2. TD04HL 15T 41.93/55.69mm 5+5 blades high performance Turbo Billet/Milling/aluminum compressor wheel for 49189-01700/49377-06351
3.Size:
Nose diameter:9.94mm
Inducer:41.93mm
Exducer:55.69mm
Tapered tip:59.97mm
Tip height:4.71mm
Superback:0.00mm
Overall height:22.00mm
Bore size:5.00mm
Trailing angle:60
Cutback:0.0
Blade height:20.46mm
5+5 blades
foward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application: ISUZU
All the compressor wheels have been balanced.
