Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | no |
| Certification: | ISO |
| Model Number: | RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:RHF55 forward

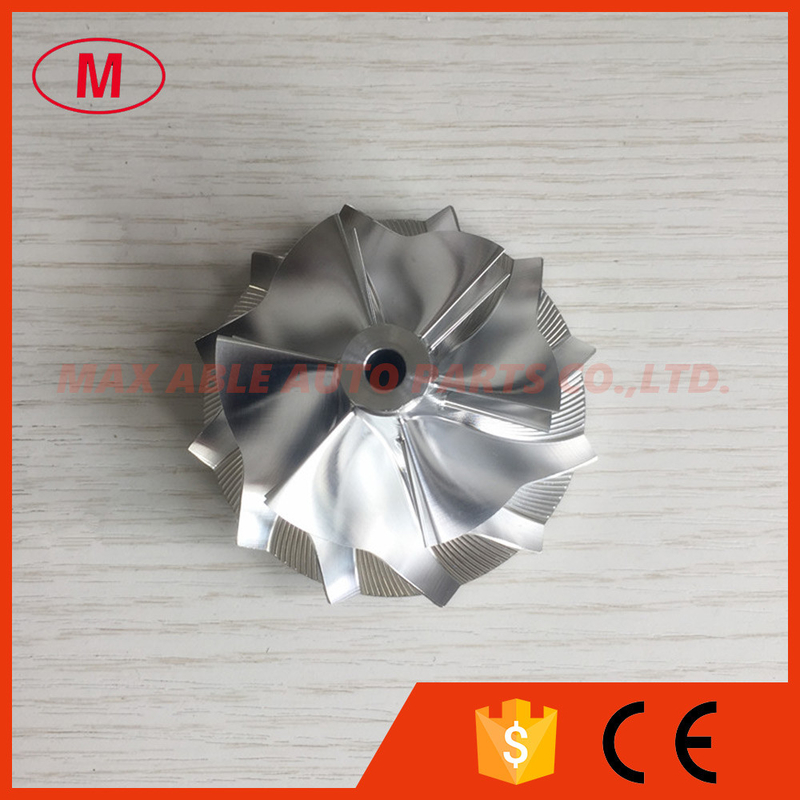

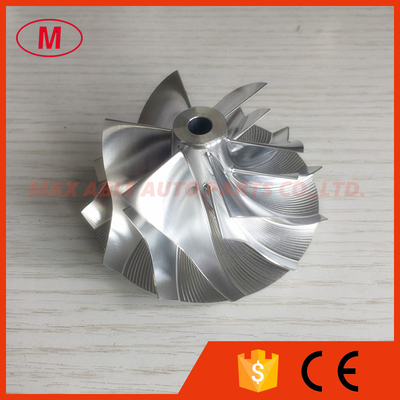

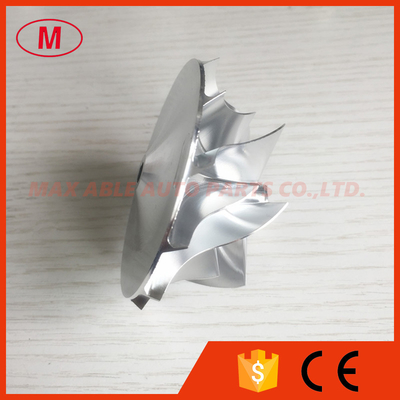

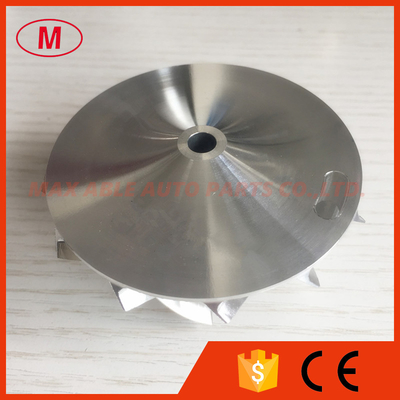

2.RHF55 52.56/68.00mm 6+6 blades high peroformance high blade height turbo aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:13.51mm
Inducer:52.56mm
exducer:68.00mm
Tapered tip exducer:73.04mm
Tip height :5.37mm
superback:4.53mm
Overall height:36.63mm
Bore size:6.10mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
Blades height:28.70mm
Splitter height:20.20mm
SP height angle:-8.50
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
