| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT1238 Forward

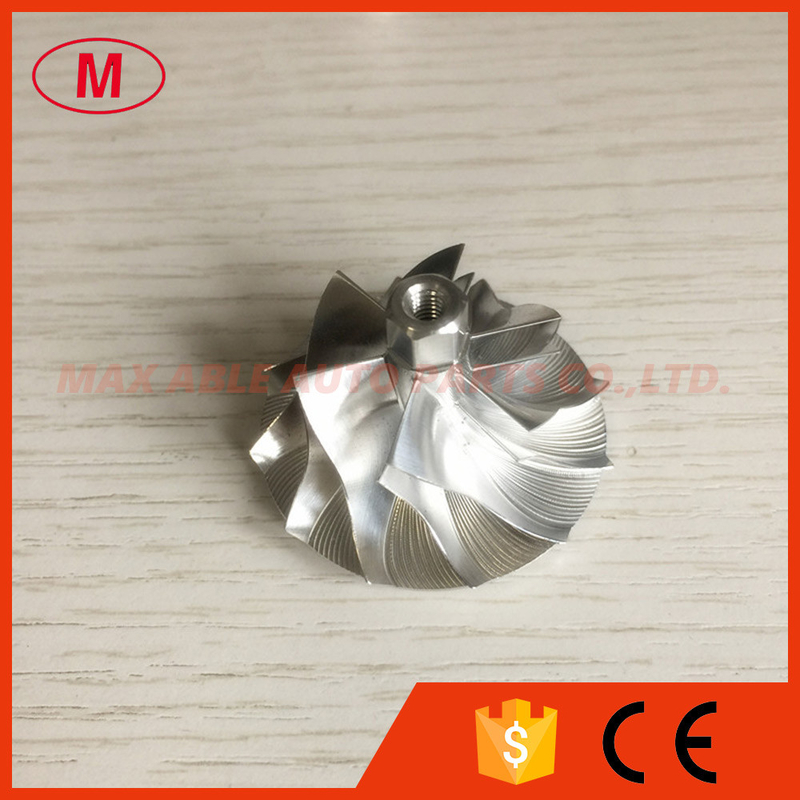

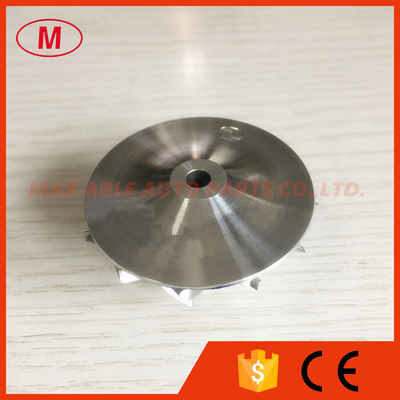

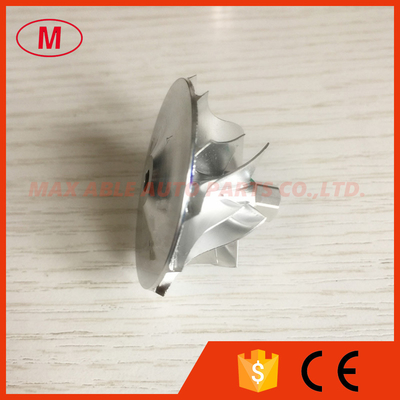

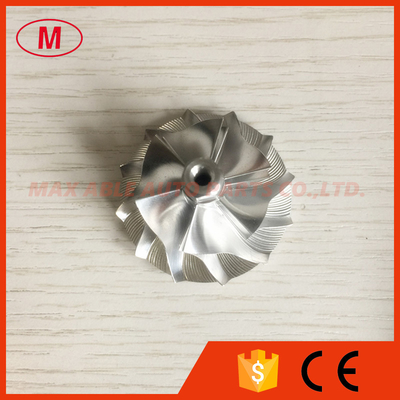

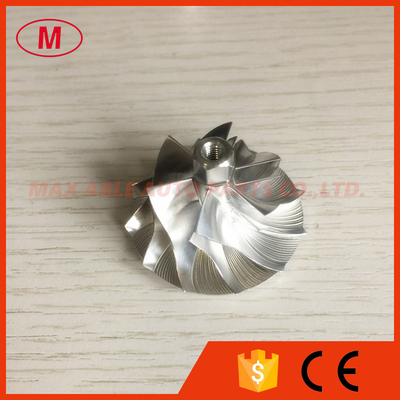

2.GT1238 26.87/38.00mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel for 799171-0001
3.Size:
Nose diameter:8.15mm
inducer:26.87mm
Exduder:38.00mm
Tapered tip exducer:40.25mm
Tip height:2.67mm
Superback:2.35mm
Overall height:25.28mm
bore size :4.08mm
Trailing angle:45 degree
Bore type:Threaded-M4x0.7LHT
Cutback:0.0
Blades height:15.84mm
Splitter height:11.70mm
Sp height angle:-6.20
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
