1. MODEL:S300 forward rotation

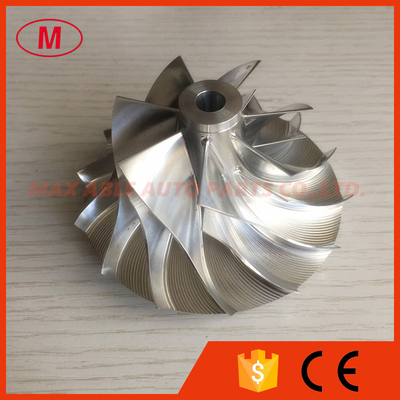

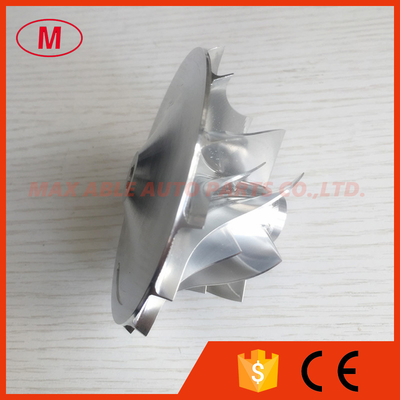

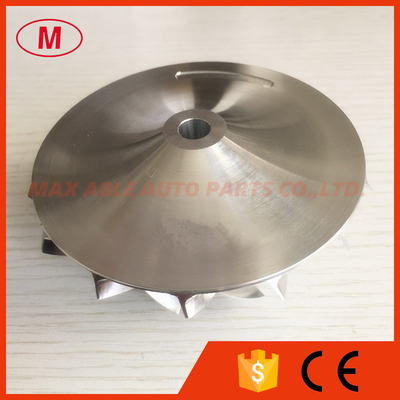

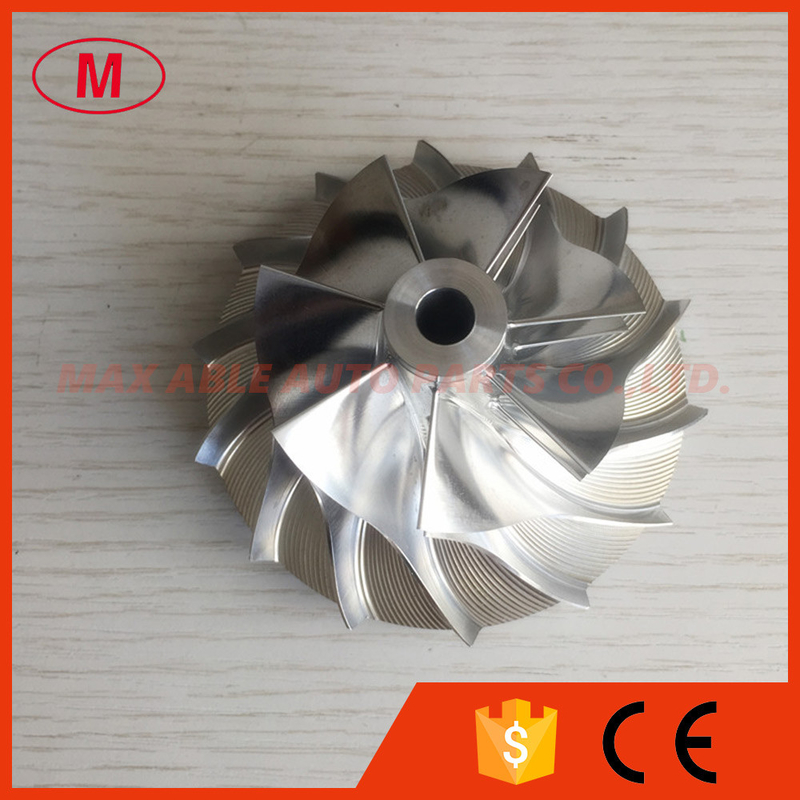

2. S300 57.12/84.62mm 7+7 blades 174424 turbo billet/milling/aluminum compressor wheel
Nose diameter:16.76mm
inducer:57.12mm
Exduder:84.62mm
Tapered tip:90.41mm
Tip height:6.01mm
Superback:7.00mm
Overall height:49.08mm
bore size:8.01mm
Trailing Angle:60
Cutback:0.0
Blade height:36.00mm
Tapered tip Angle: 30 degree
7+7 blades
Forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
