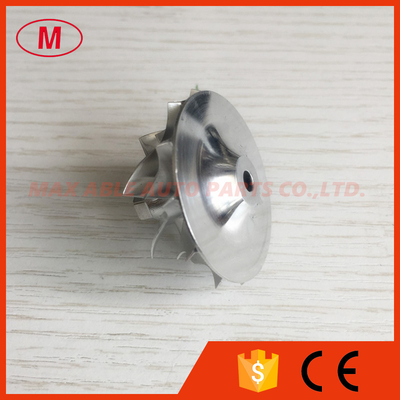

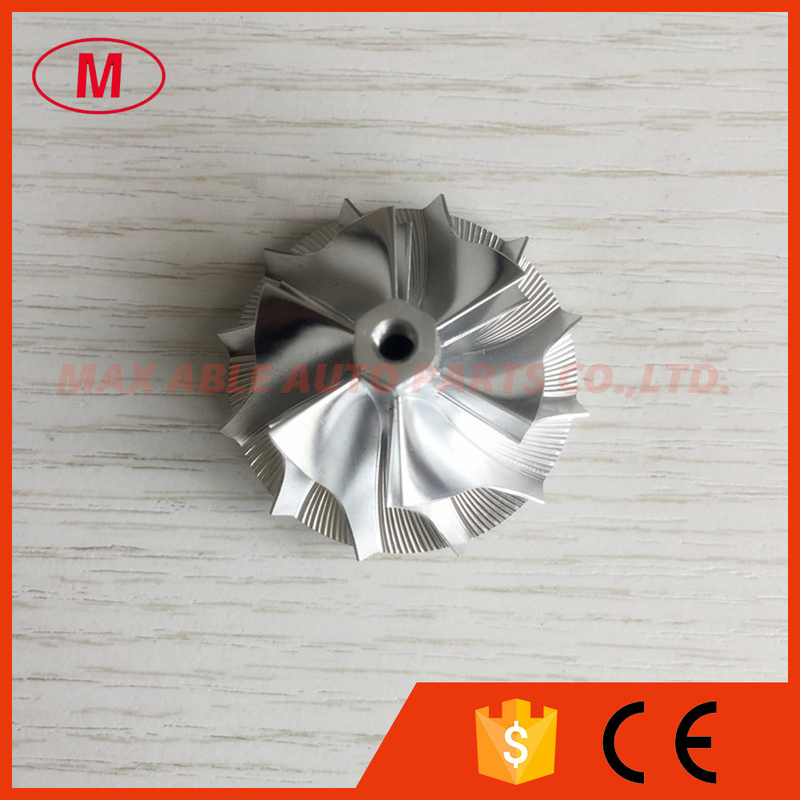

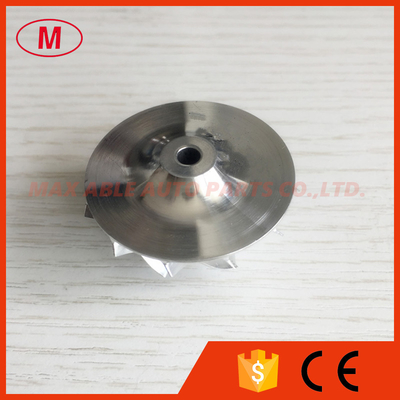

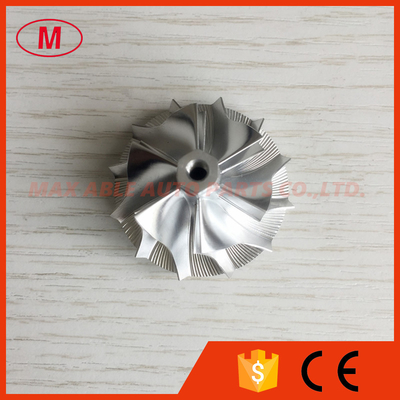

GT15-25 28.50/38.00mm 6+6 blades 704237-0001R Turbo Billet/milling/aluminum 2024 compressor wheel

Brand Name:	NO
Model Number:	GT15-25

Contact Now

Detailed Product Description

1. MODEL:GT1238 forward

2.GT15-25 28.50/38.00mm 6+6 blades 704237-0001R Turbo Billet/milling/aluminum 2024 compressor wheel

3.Size:

Nose diameter:8.20mm

Inducer:28.50mm

exducer:38.00mm

Tapered tip exducer:40.53mm

Tip height:3.19mm

Superback:3.90mm

bore size :4.08mm

Overall height:25.60mm

Trailing Angle:45

Bore type:Threaded-M4x0.7LHT

Cutback:0.0

Tapered tip Angle:30 degree

Blade height:16.14mm

6+6 blades forward

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
