| Brand Name: | NO |
| Model Number: | RHB5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 62.50/88.40mm | Type: | Turbochargers |
|---|

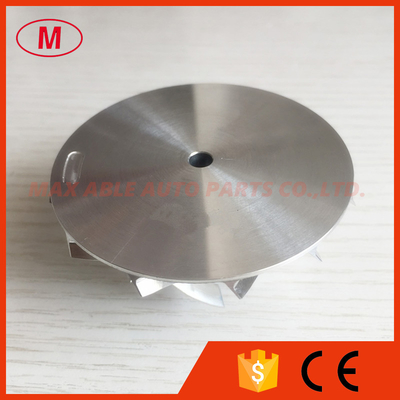

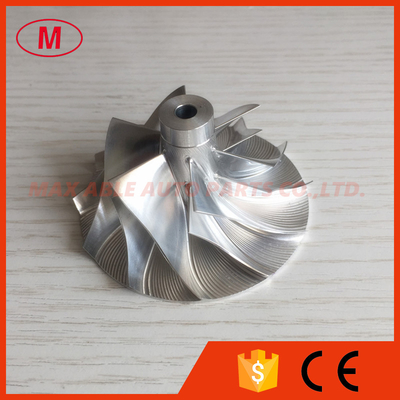

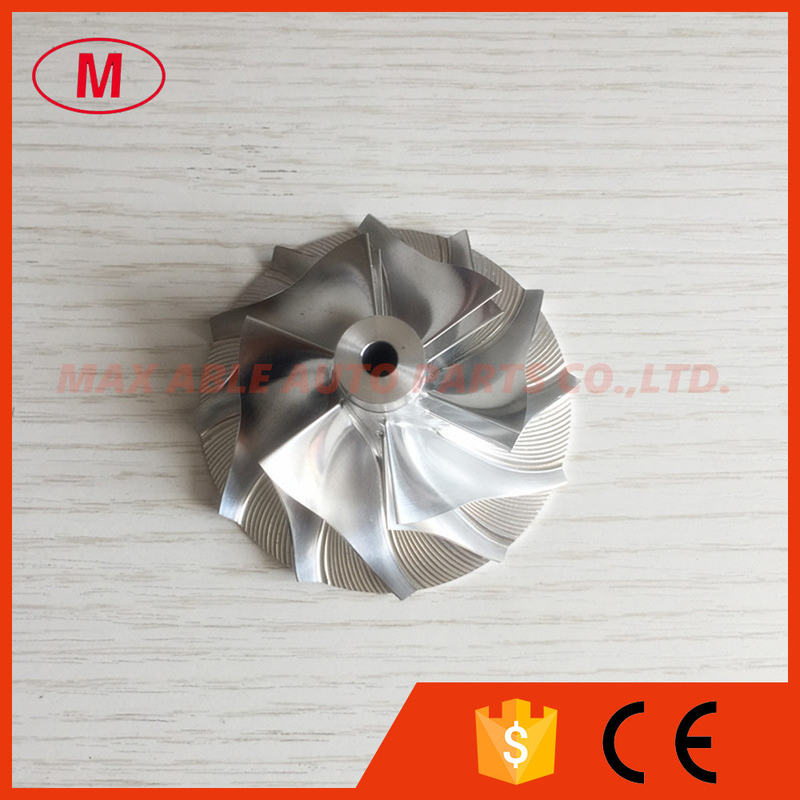

1. MODEL:RHB5 forward
2.RHB5 45.50/65.00mm 6+6 blades turbo Billet/aluminum 2618/milling compressor wheel for VF10 Upgrade
3.Size:
Nose diameter:13.59mm
inducer:45.50mm
Exduder:65.00mm
Tapered tip exducer:67.71mm
Tip height:5.17mm
Superback:0.00mm
Overall height:33.39mm
bore size :5.10mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
Blades height:23.92mm
Splitter height:16.35mm
Sp height angle:-3.50
Tapered tip Angle:18 degree
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
