1. MODEL:K24 forward

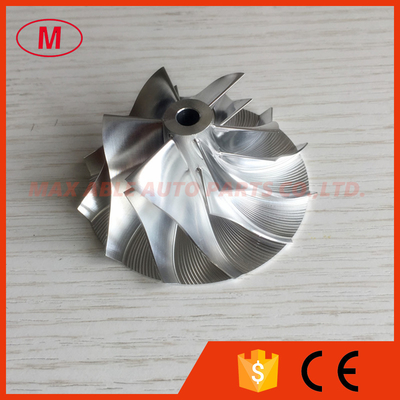

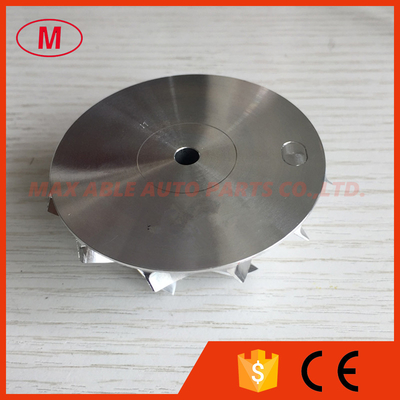

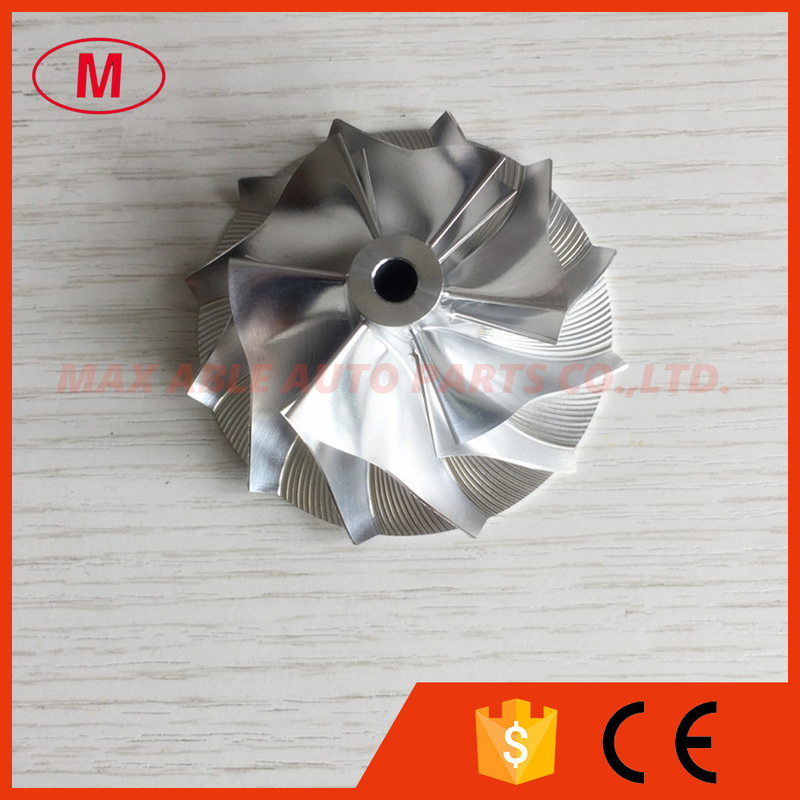

2.K24 42.37/60.50mm 6+6 blades 5324-123-2007 Turbo Billet/milling/aluminum 2618 compressor wheel for 5314-970-7026, 5316-970-7001, 5324-970-7000, 5324-970-7001, 5324-970-7002, 5324-970-7003, 5324-970-7004, 5324-970-7005 Mercedes S Class 3.0L D, engine OM606964 – 1996-2008/Vauxhall Calibra 2.0L P, engine C20LET – 1992-1996/Audi S2 2.0L D, engine 3B,ABY – 1988-1990/Porsche 911 3.6L P, engine 993USTGTR2 – 1995-1999/Porsche 911 (993) 3.6L P, engine M64.60R – 1995-1997/Porsche 911 3.6L P, engine M96/70S – 2001-2001
3.Size:
Nose diameter:11.67mm
Inducer:42.37mm
exducer:60.50mm
Tapered tip exducer:64.60mm
Tip height:4.55mm
Superback:-0.02mm
bore size :5.41mm
bore type:through
Overall height:27.00mm
Trailing Angle:55 degree
Cutback:0.0
SP Height angle:-8.50
Blades height:25.09mm
Splitter height:17.50mm
6+6 blades forward
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
5314-970-7026
5316-970-7001
5324-970-7000
5324-970-7001
5324-970-7002
5324-970-7003
5324-970-7004
5324-970-7005
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
