Brand Name: | NO |
Certification: | ISO |
Model Number: | K16 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |
1. MODEL:K16 foward

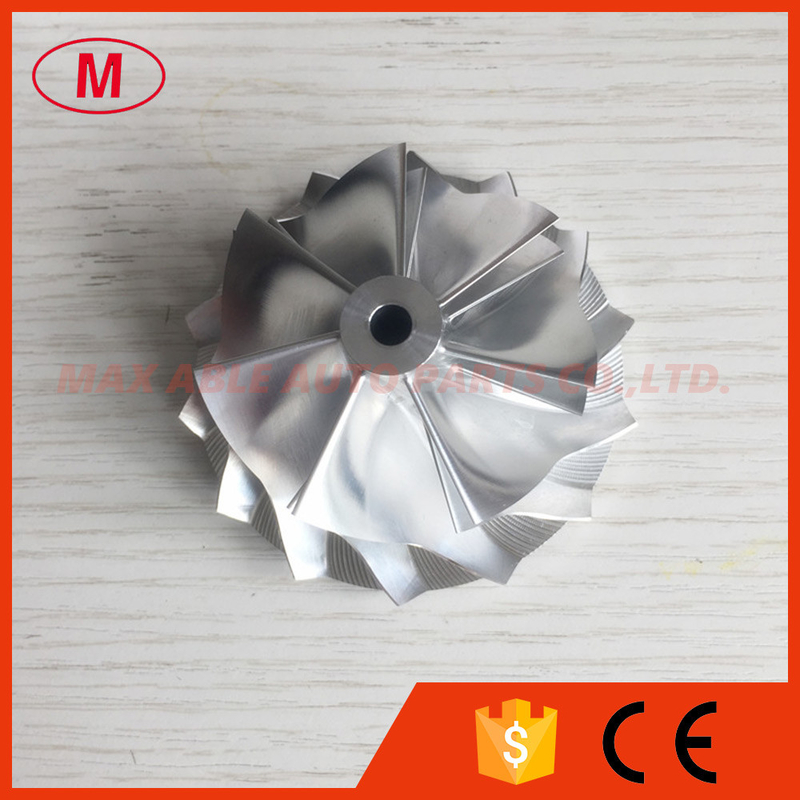

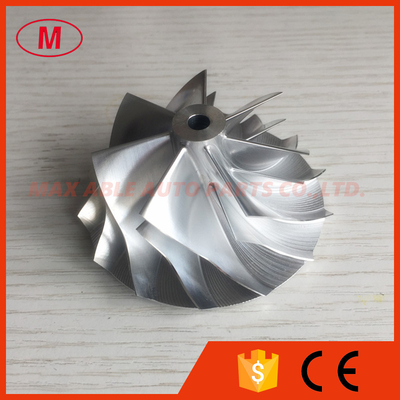

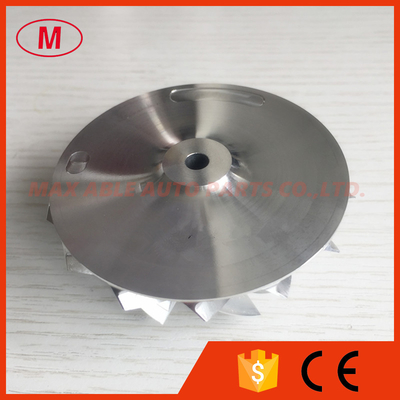

2.K16 54.20/68.00mm 7+7 blades high performance turbo billet/milling/aluminum 2024 compressor wheel
3.Size:
Nose diameter:11.80mm
inducer:54.20mm
Exduder:68.00mm
Tapered tip exducer:72.09mm
Tip height:4.55mm
Superback:2.67mm
Overall height:33.90mm
bore size :5.41mm
Trailing Angle:45
Cutback:8.0
Blade height:29.20mm
SP height Angle:-4.00
Splitter height:14.20mm
7+7 blades
foward rotation
It is Custom size
Tapered tip Angle: 30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
