| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K16 forward

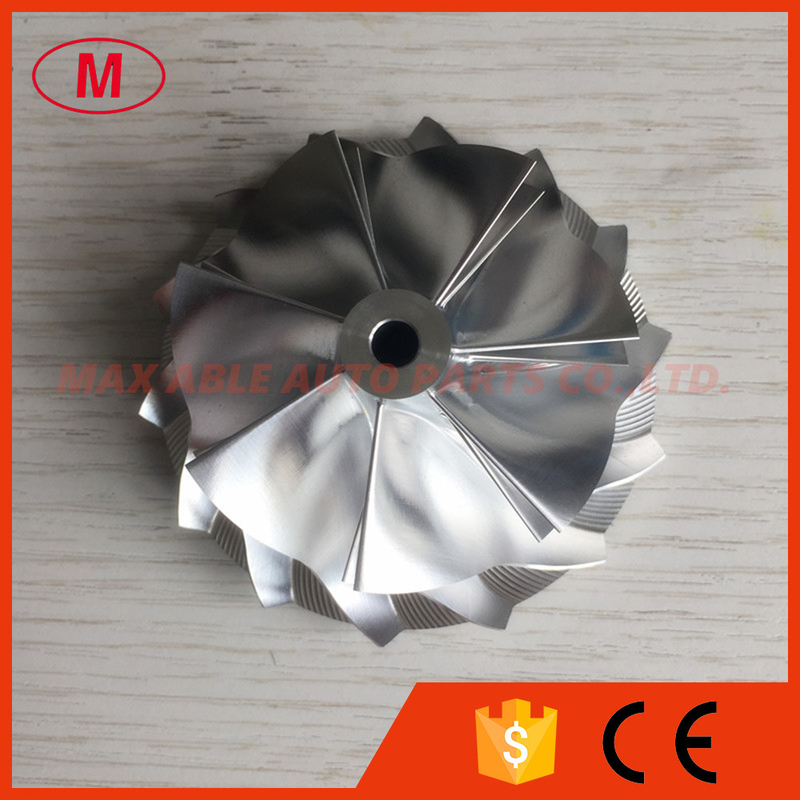

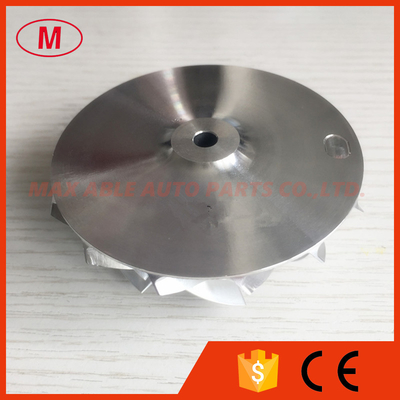

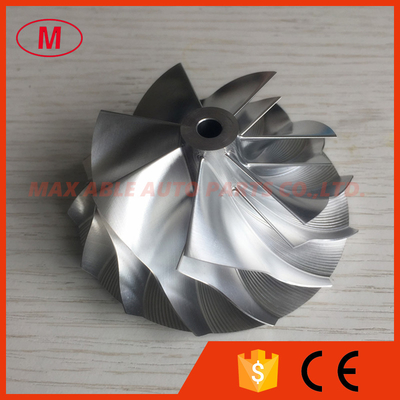

2.K16 57.00/71.00mm 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.78mm
inducer:57.00mm
Exduder:71.00mm
Tapered tip exducer:75.05mm
Tip height:5.09mm
Superback:2.67mm
Overall height:32.32mm
bore size :5.41mm
bore type:through
Trailing Angle:55 degree
Cutback:6.5
Blade height:26.95mm
Splitter height:17.30mm
SP height angle:-3.00
7+7 blades
forward rotation
It is Custom size,please check carefully before buying.
Tapered tip Angle: 30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
