| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL 16T FORWARD

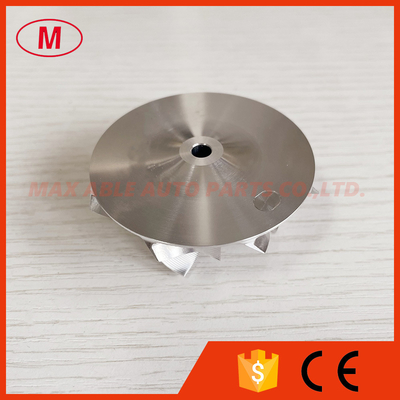

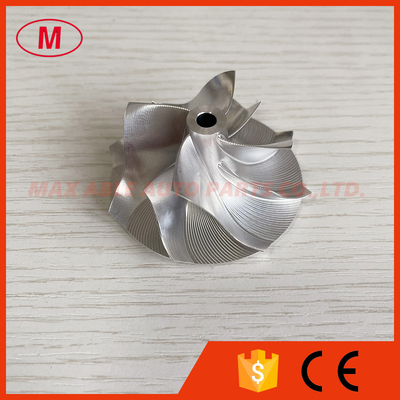

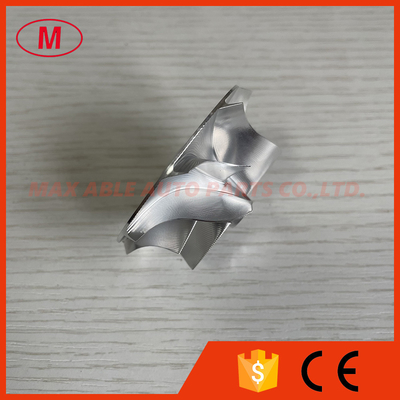

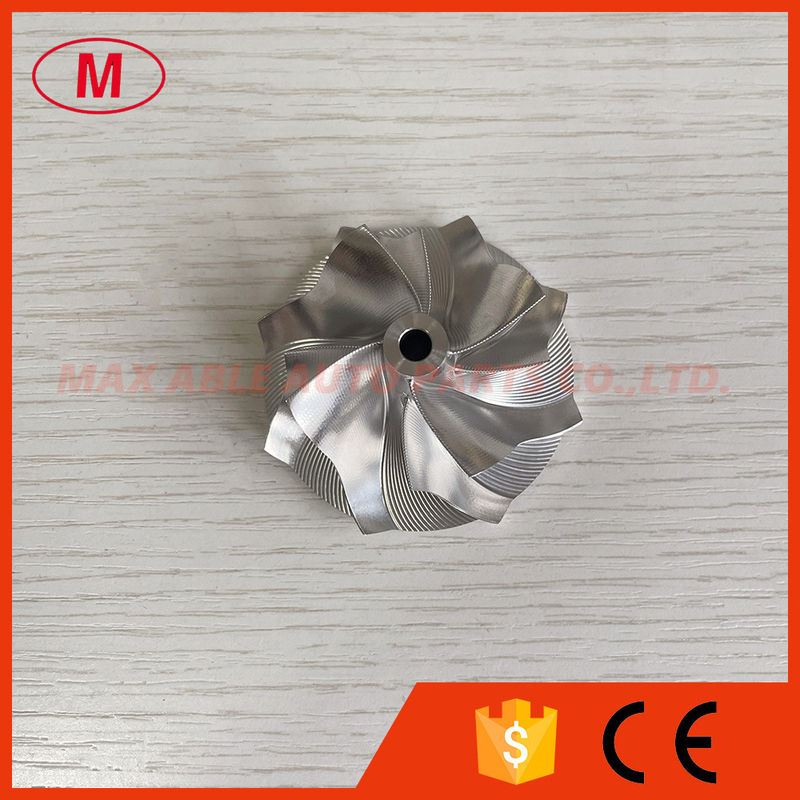

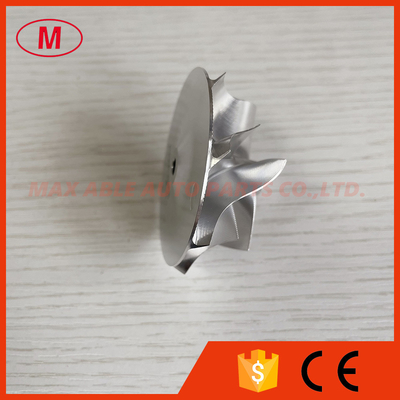

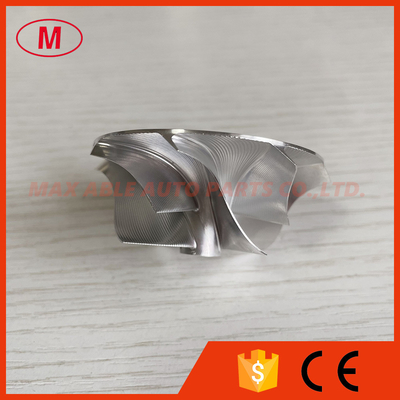

2. TD04HL 16T 49189-00016 43.43/56.02mm 4+4 blades High performance point milling Turbo milling/aluminum 2618/billet compressor wheel for 49189-00561/49189-01330/49189-01335/49189-01350/49189-01355/49189-01450/49189-01455/49189-02310/49189-03200/49189-03201/49189-03210/49189-03211/49189-05000/49189-05010/49189-05100/49189-05101/49189-05102/49189-05111/49189-05112
3.Size:
Nose diameter:10.00mm
Inducer:43.43mm
Exducer:56.02mm
Tapered tip exducer:60.10mm
Tip height:4.53mm
Super back:1.83mm
Overall height:26.18mm
Bore size:5.00mm
bore type:through
Trailing angle:45 degree
Cutback:0.0mm
SP Height angle:-8.00
Blades height:22.50mm
Splitter height:15.73mm
4+4 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
