1. MODEL:GT2256V forward

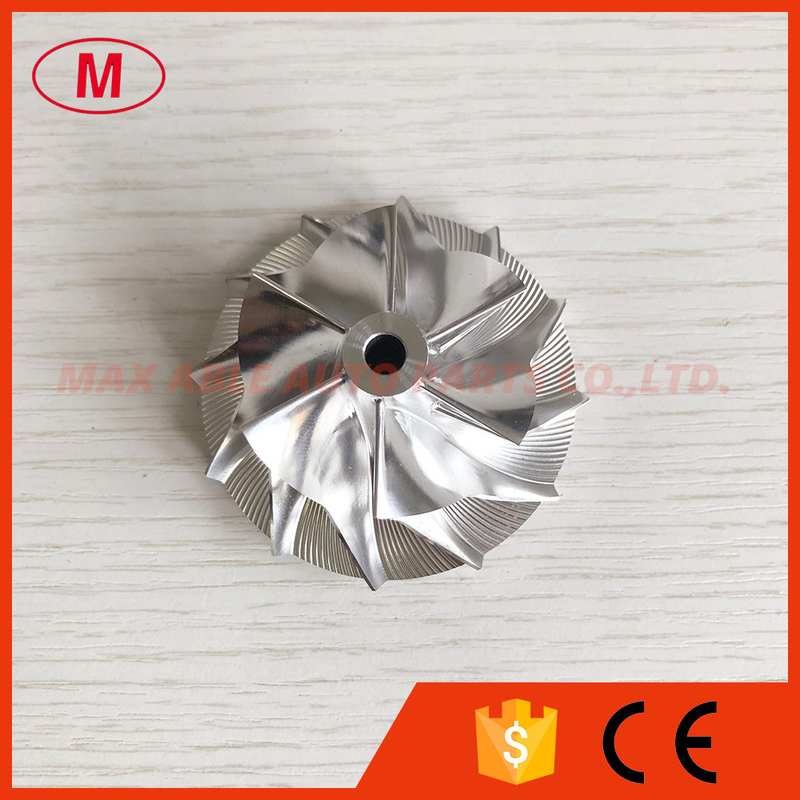

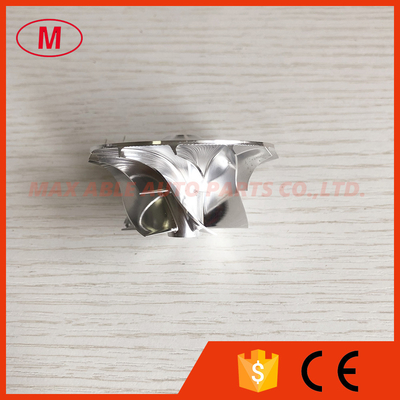

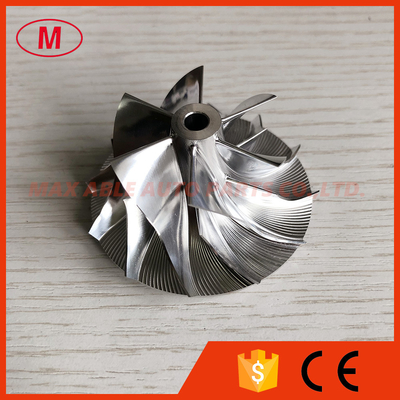

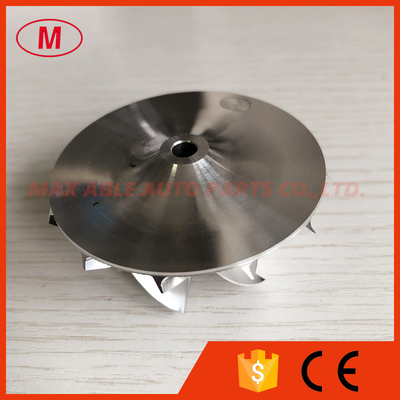

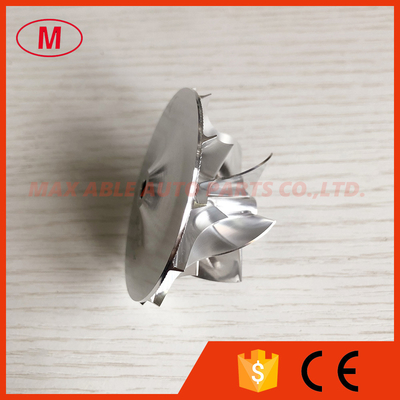

2.GT2256V 39.60/56.03mm 436336-0019, 436563-0002, 436563-0012 6+6 blades high performance Billet/milling/aluminum 2618 compressor wheel for 715910-0001, 715910-0002, 716885-0001, 716885-0002, 716885-0003, 716885-0004, 716885-0005, 720931-0001, 720931-0002, 720931-0003, 720931-0004, 720931-0005, 734868-0001, 751243-0002, 763360-0001 Mercedes OM612, 2.7L engine. Mercedes W210, W163.VW BAC/BLK,2.5L engine. VW Touareg.VW Commercial T4 bus, 2.5L engine.Nissan YD25, 2.5L engine. Nissan Navara Nissan QW25, 2.5L engine. Nissan Navara 2.5 DI, Pathfinder 2.5 DI Jeep R2816K5, 2.8L engine. Jeep Cherokee 2.8L CRD, Liberty CRD
Nose diameter:10.60mm
Inducer:39.60mm
exducer:56.03mm
Tapered tip exducer:59.15mm
Tip height:3.70mm
Superback:3.68mm
bore size :5.08mm
Bore type:through
Overall height:30.90mm
Cutback:0.0
Trailing Angle:50
SP height angle:-1.30
Splitter height:13.55mm
Blade height:25.20mm
6+6 blades forward
It is for OE compressor housing
Tapered tip Angle:30 degree
Application:
715910-0001, 715910-0002, 716885-0001, 716885-0002, 716885-0003, 716885-0004, 716885-0005, 720931-0001, 720931-0002, 720931-0003, 720931-0004, 720931-0005, 734868-0001, 751243-0002, 763360-0001
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced
