Home ProductsBillet compressor wheel

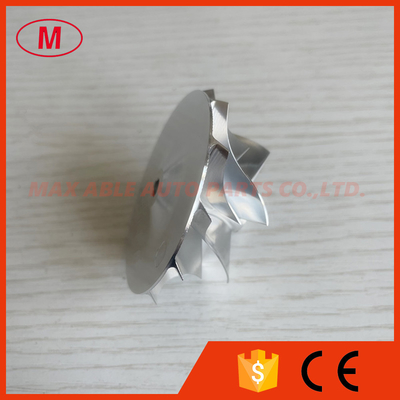

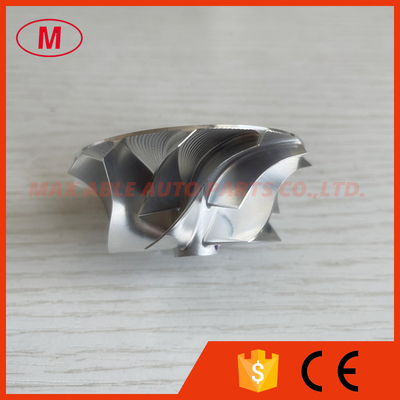

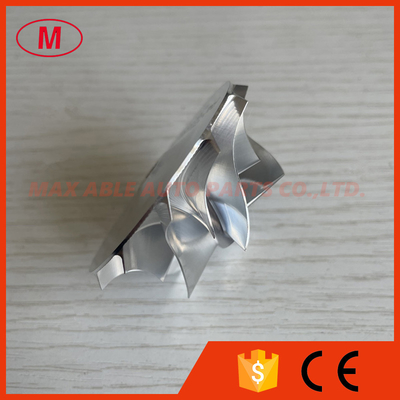

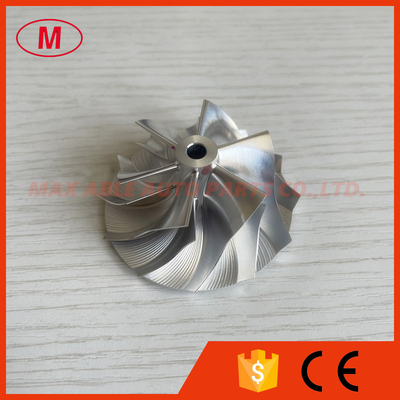

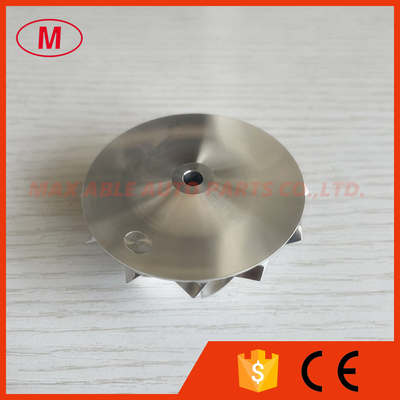

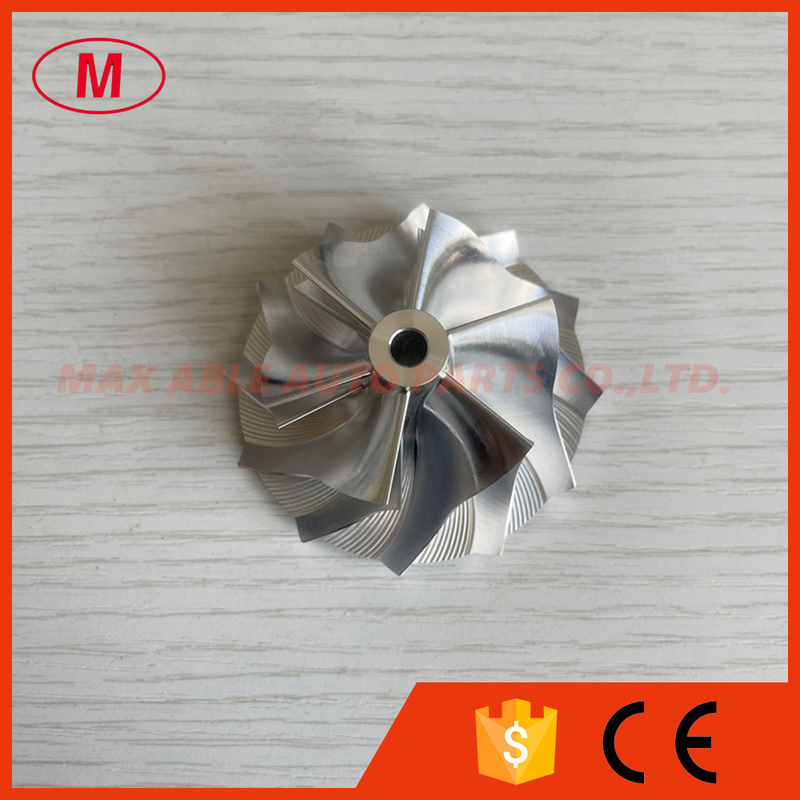

TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,

TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,

    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
    • TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,

    Product Details:

    Brand Name: NO
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model:TD04 reverse

    2.TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
    for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005, 49477-02006, 49477-02007, 49477-02008, 49477-02010, 49477-02011, 49477-02013, 49477-02016, 49477-02020, 49477-02021, 49477-02022, 49477-02023, 49477-02024, 49477-02051, 49477-02052, 49477-02053, 49477-02054, 49477-02055, 49477-02056, 49477-02057, 49477-02058, 49477-02060, 49477-02061, 49477-02062, 49477-02063, 49477-02070, 49477-02104, 49477-02105, 49477-02106, 49477-02107, 49477-02108, 49477-02120
    B-M-W Engine:N20B20A-Euro5/DW12C

    3.Size:

    Nose diamter:11.00mm

    inducer:42.00mm

    Exduder:56.00mm

    Tapered tip exducer:59.87mm

    Tip height:4.36mm

    Superback:1.90mm

    Overall height:26.20mm

    bore size :5.01mm

    bore type:through

    Trailing Angle:50 degree

    Cutback:0.0mm

    SP height angle:-10.00

    Splitter height:15.50mm

    Blades height:22.30mm

    It is for OE compressor housing

    6+6 blades

    reverse rotation

    Tapered tip angle:30 degree

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

    All the billet compressor wheels have been balanced.

    The more models we also have.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,

    TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
