Home ProductsBillet compressor wheel

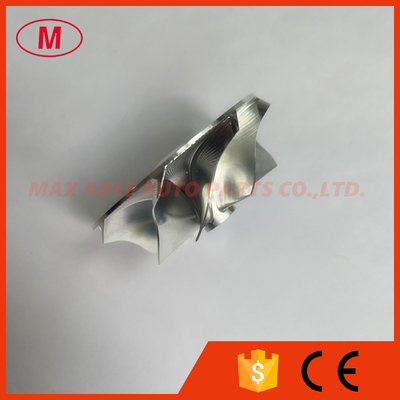

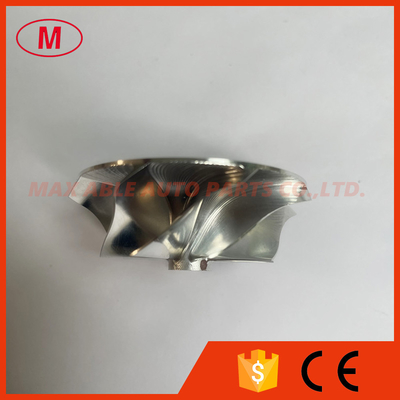

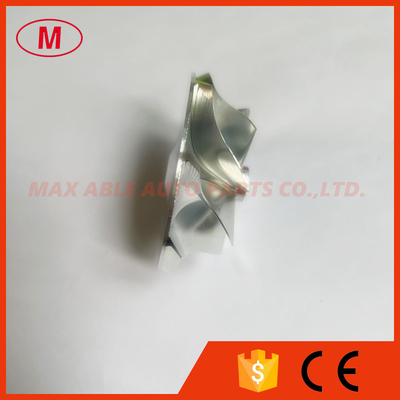

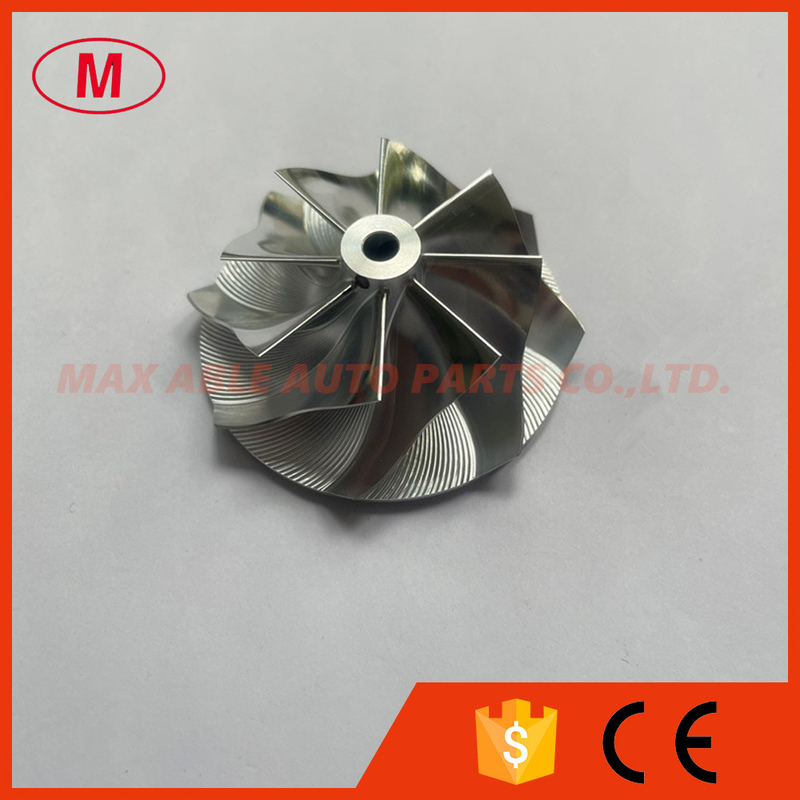

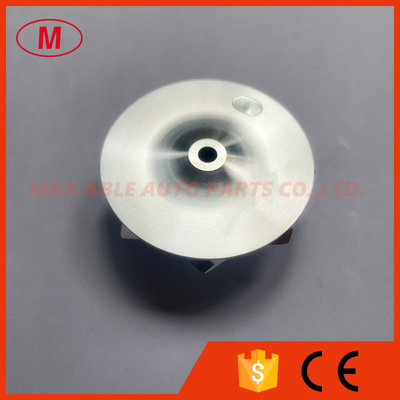

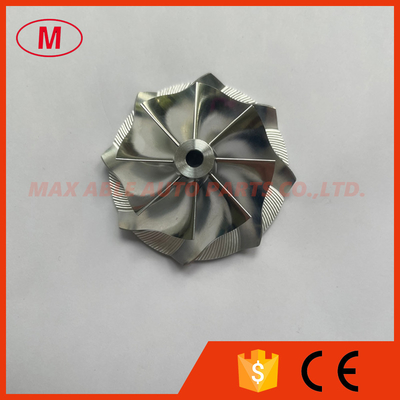

TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel

TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel

    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    • TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: TD03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD03 reverse
    2.TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose Diameter:9.00mm
    Inducer:37.00mm
    exducer:48.00mm
    Tapered tip exducer:50.90mm
    Tip height:4.35mm
    Superback:1.70mm
    bore size :4.01mm
    bore type:through
    Overall height:19.70mm
    Trailing Angle:45 degree
    Cutback:0.7mm
    Blades height:16.00mm
    SP height angle:0.00
    Splitter height:0.00mm
    8+0 blades
    reverse rotation
    Tapered tip angle:23.4 degree
    It is custom size,please check careufully before buying
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.



    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel

    TD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheelTD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheelTD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheelTD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheelTD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheelTD03 Reverse 37.00/48.00mm 8+0blades performance Turbo milling/aluminum 2618/billet compressor wheel
