| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 reverse

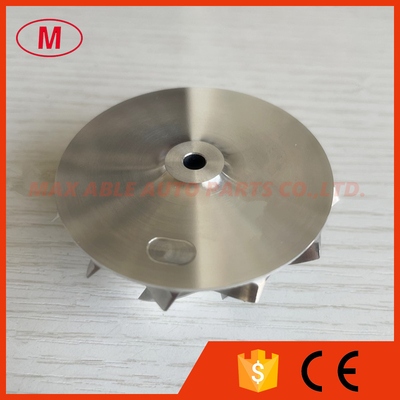

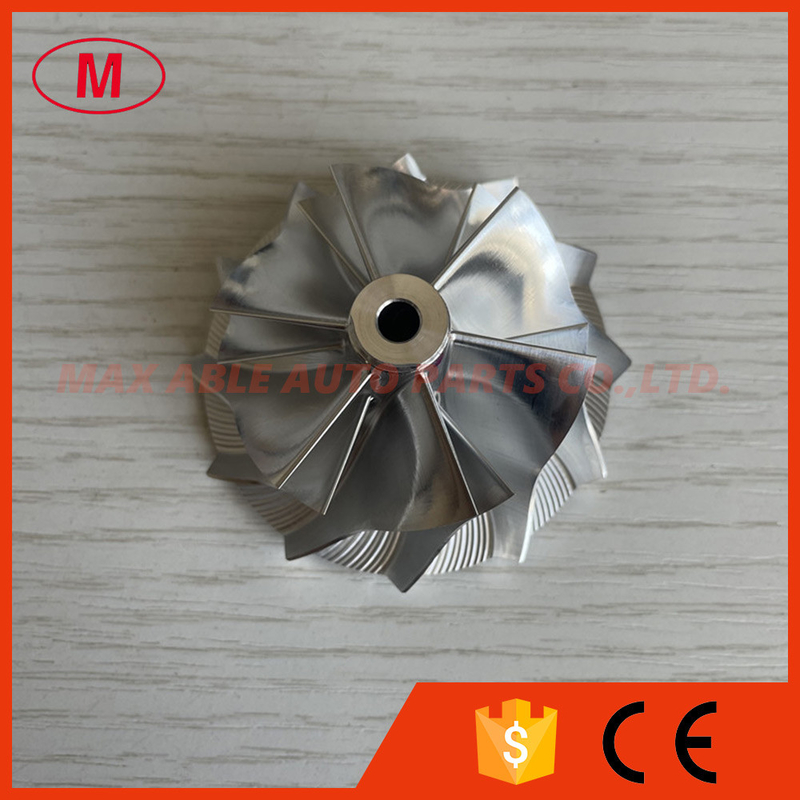

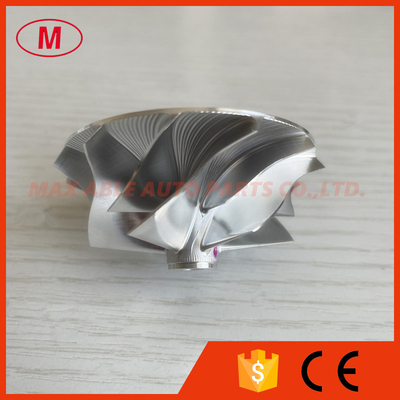

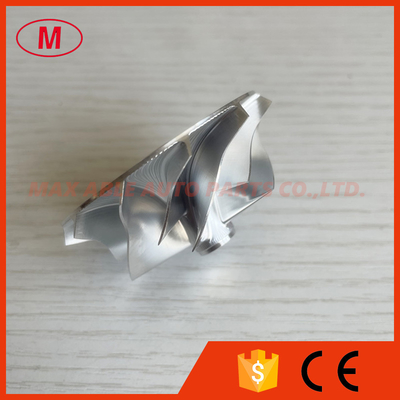

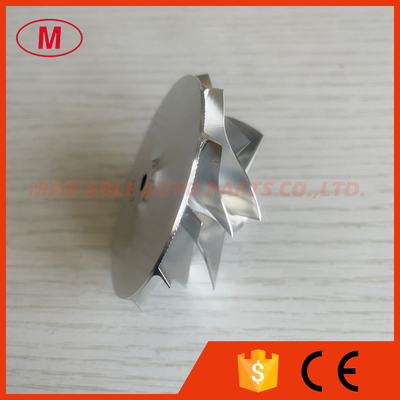

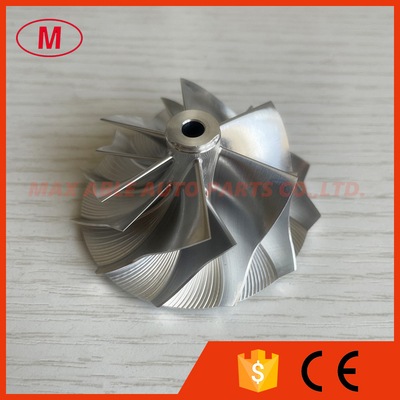

2.K04 reverse 45.09/56.08mm 6+6 blades 5306-123-2216 aluminum 2618/milling/ billet compressor wheel for K0422881 5304-970-0303/0304/0080/0081 TT30 Madza/Porsche 911 GT2 (997) 2007, 3.6L/BV50-2280 Madza/Porsche 911 GT2 (997) 2007, 3.6L/BV50-2280
3.SIZE:
Nose Diameter:11.36mm
inducer:45.09mm
Exducer:56.08mm
Tapered tip exducer:60.10mm
Tip height:4.48mm
Superback:1.80mm
Overall height:27.63mm
bore size :4.61mm
bore type:through
Trailing angle:60 degree
Cutback:7.0
SP Height angle:-5.50
Blades height:22.22mm
Splitter height:15.50mm
6+6 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
Application:
K0422881
5304-970-0303
5304-970-0304
5304-970-0080
5304-970-0081
4.Good quality and competitive price
5. aluminum 2618/milling/ billet compressor wheel.
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheel have been balanced.
