| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K04 forward

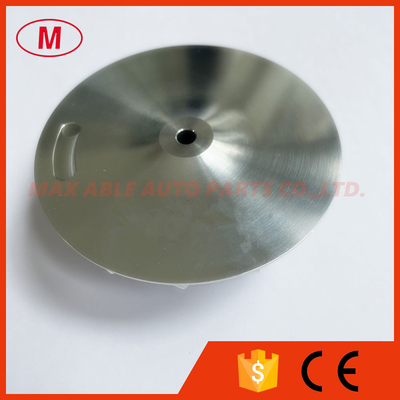

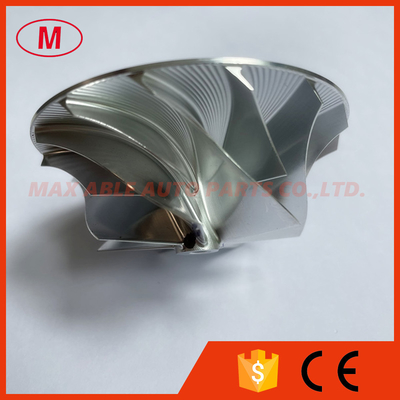

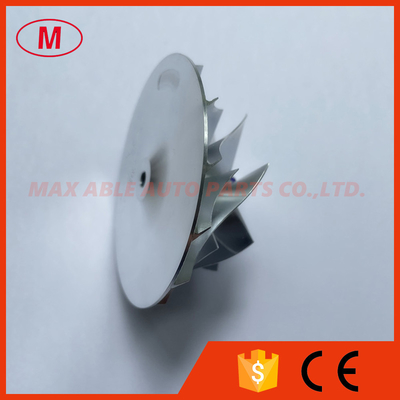

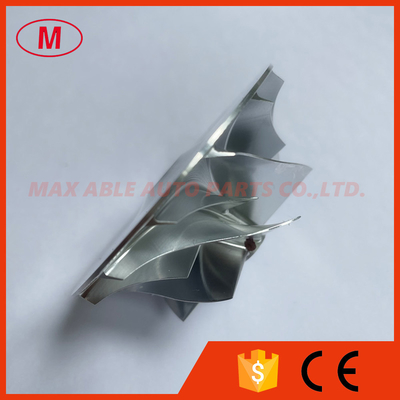

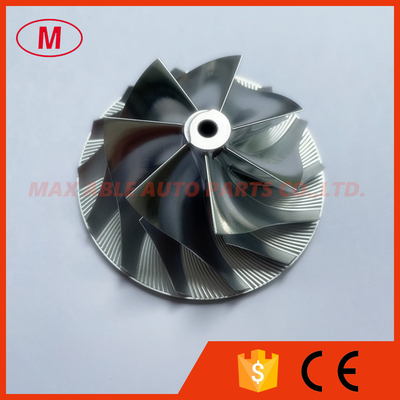

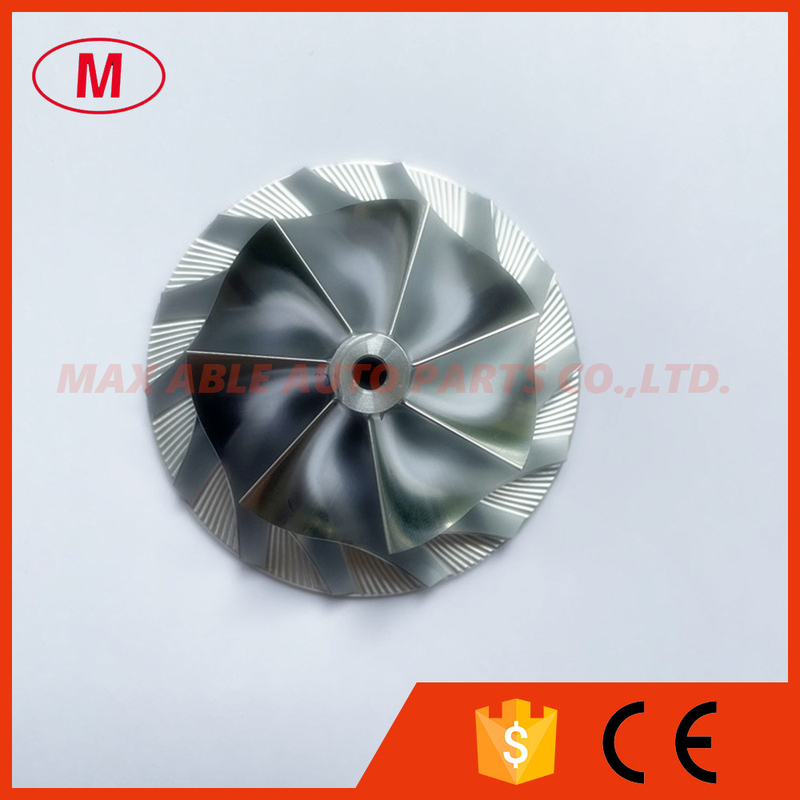

2.K04 50.33/72.60mm 7+7blades small nose billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.00mm
inducer:50.33mm
Exduder:72.60mm
Tip height:5.06mm
Superback:1.80mm
Overall height:29.50mm
bore size :4.61mm
Trailing Angle:50 degree
Cutback:3.0mm
SP height angle:-2.50
Blade height:26.20mm
Splitter height:15.70mm
7+7 blades
Tapered tip Angle:0 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
