| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TD03 14T Close FORWARD

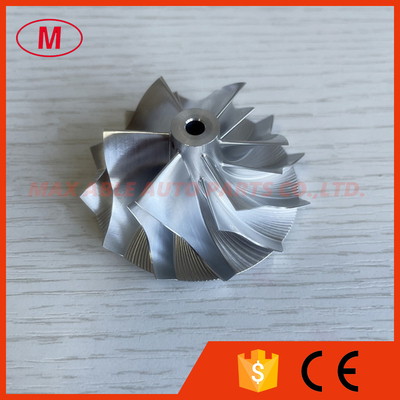

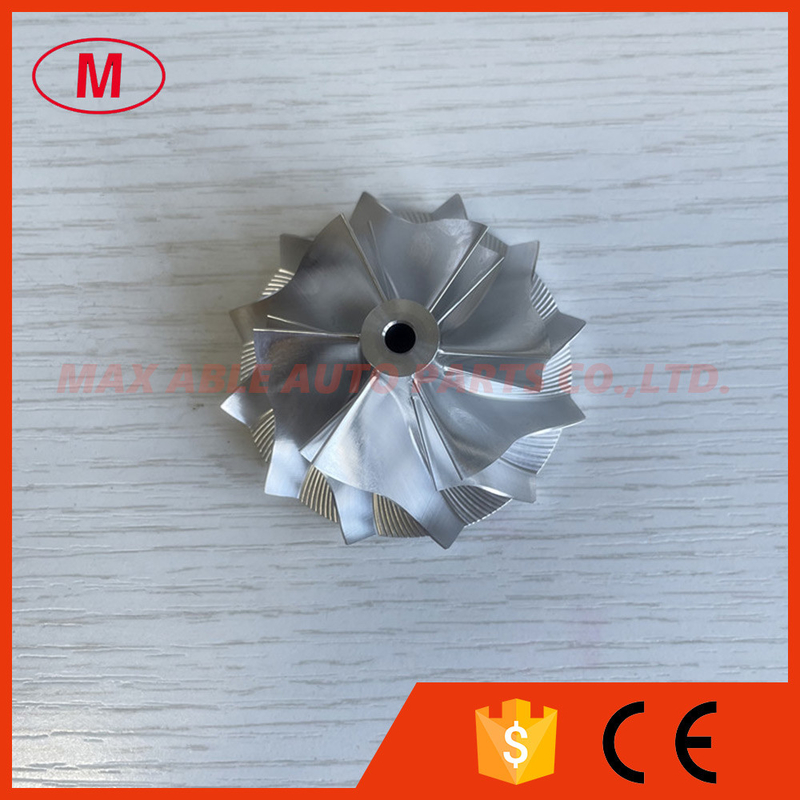

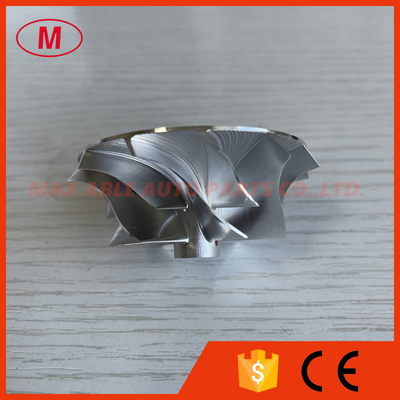

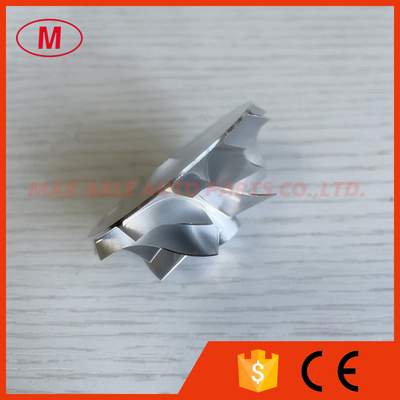

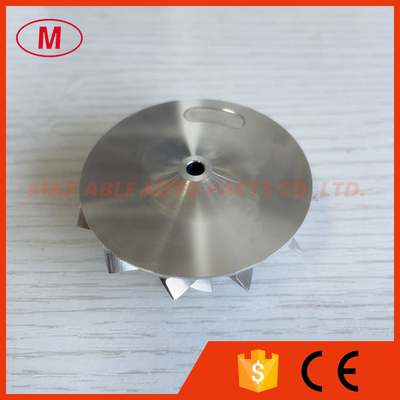

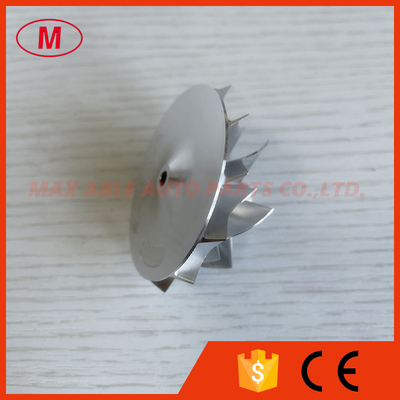

2.TD03 14T close 39.55/51.00mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.29mm
Inducer:39.55mm
Exducer:51.00mm
Tapered tip exducer:55.61mm
Tip height:5.00mm
Superback:1.90mm
Overall height:24.50mm
Trailing angle:60 degree
Cutback:0.0mm
blade height:19.39mm
bore size :4.00mm
bore type: through
SP height angle:-5.00
Splitter height:13.40mm
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
