| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | RHV5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:RHV5 forward

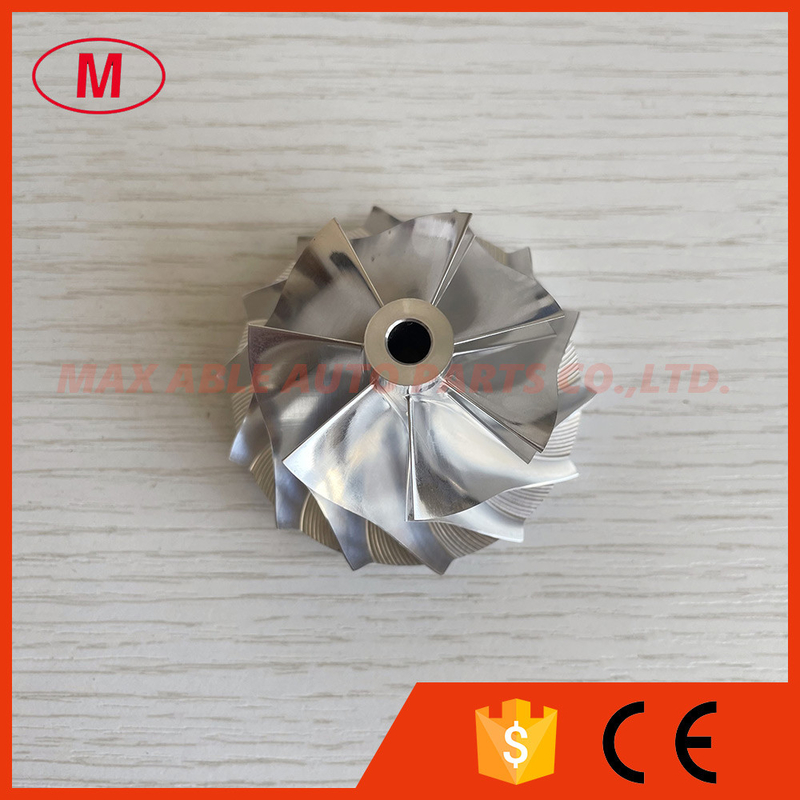

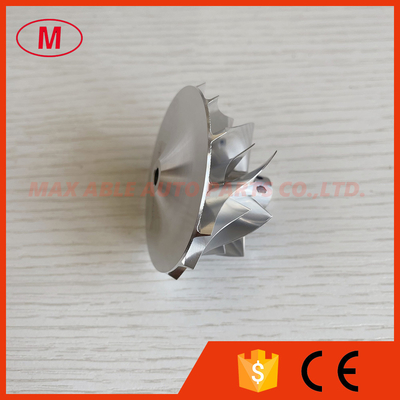

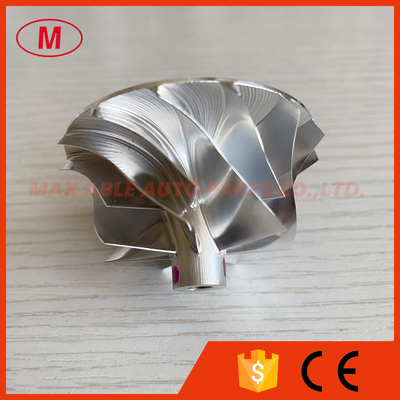

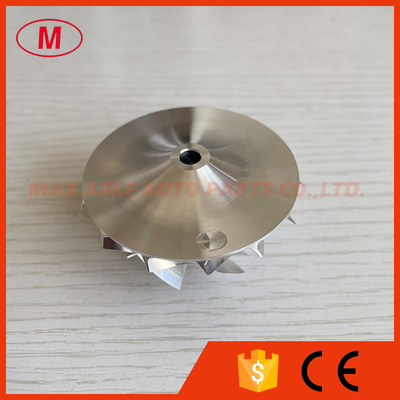

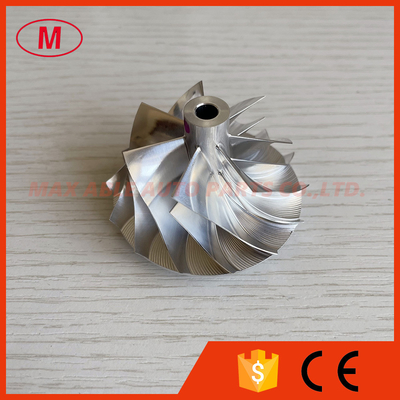

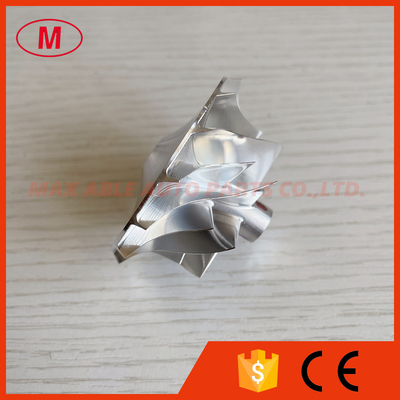

2.RHV5 40.65/52.51mm 7+7 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel for VIEZ, VFD30013, VDD30013, VBD30013, VED30013,8980115293, 8980115294, 8980115295, 8980115296 Isuzu D-MAX 3.0 CRD, Rodeo with 4JJ1T
3.Size:
Nose diameter:10.53mm
Inducer:40.65mm
exducer:52.51mm
Tapered tip exducer:55.90mm
Tip height :3.94mm
superback:4.50mm
Overall height:34.60mm
Bore size:5.10mm
Trailing Angle:60 degree
Blades height:23.67mm
Cutback:3.0mm
Splitter height:16.50mm
SP height angle:-6.20
Tapered tip angle:30 degree
7+7 blades
Forward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
