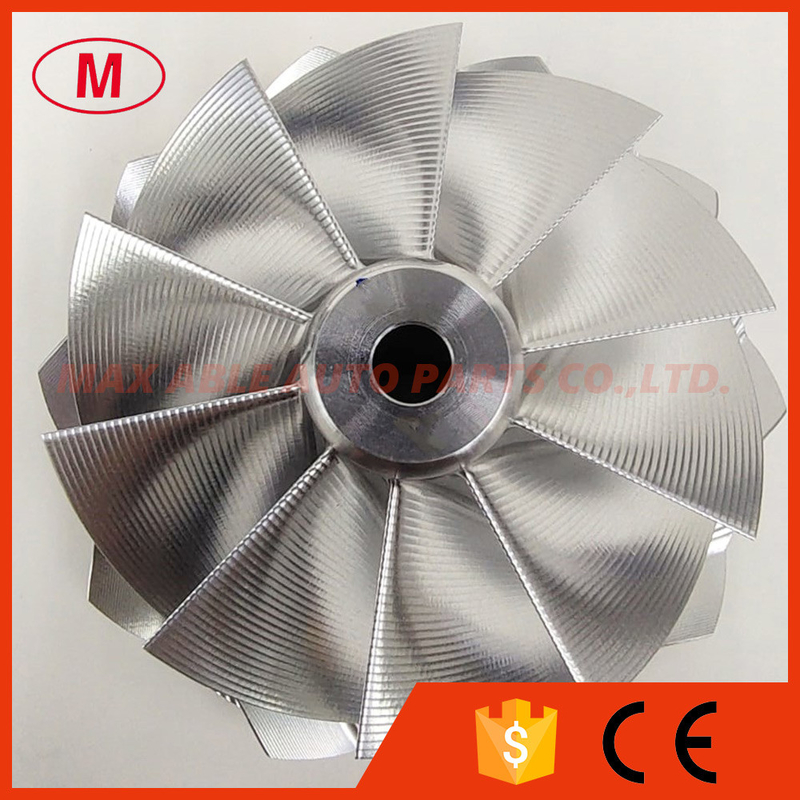

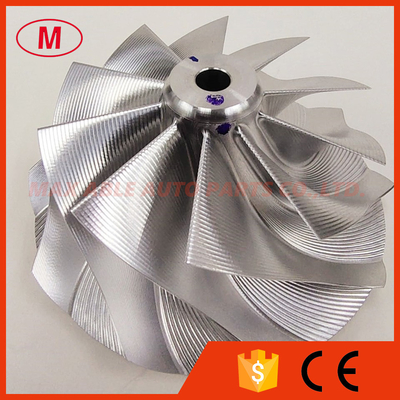

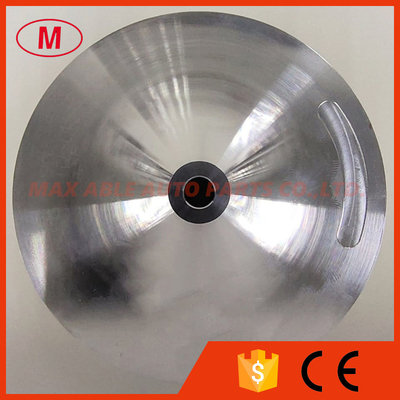

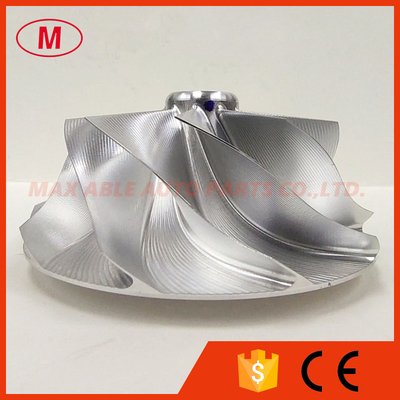

T0E 65.70/82.46mm 10+0 blades point milling turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1.Model:T04E Forward

2.T0E 65.70/82.46mm 10+0 blades point milling turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:18.45mm

Inducer:65.70mm

Exducer:82.46mm

Tapered tIp exducer:85.25mm

Tip height:6.66mm

Superback:4.97mm

Overall height:40.43mm

Bore size:6.35mm

bore type:through

Trailing angle:35 degree

Cutback:6.5mm

SP Height angle:0.00

Blade height:31.20mm

Splitter height:0.00mm

10+0 blades

Forward rotation

Tapered tip angle:13.6 degree

It is custom size ,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

All the billet compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/whatsapp:+ 86-18018657719
