| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | HX82 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:HX82 Forward

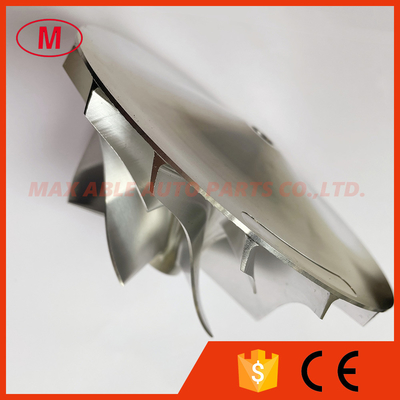

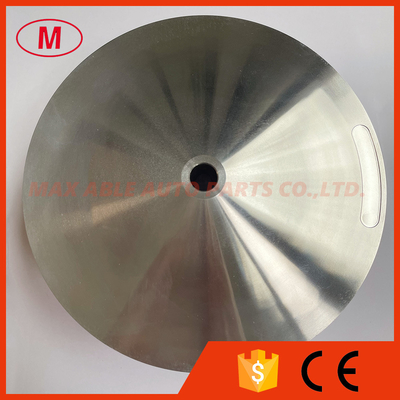

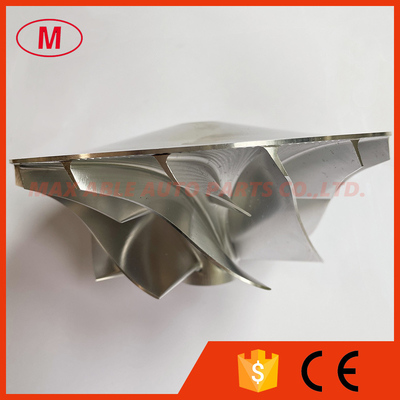

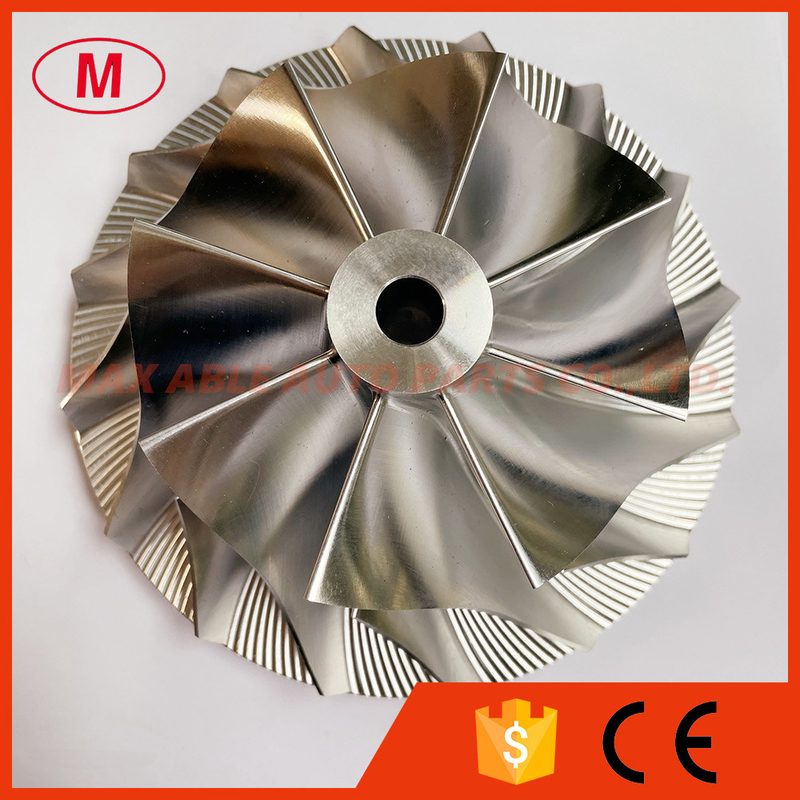

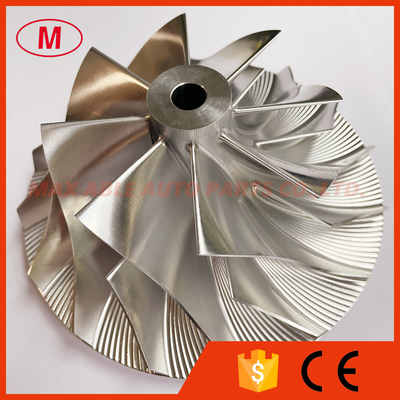

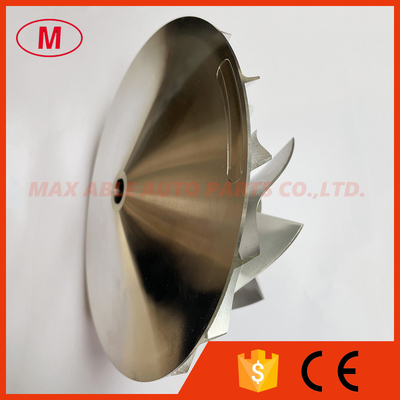

2.HX82 3593926 100.00/152.04mm 8+8 blades Turbo milling/aluminum 2618 /billet compressor wheel
3.Size:
Nose diameter:26.98mm
Inducer:100.00mm
Exducer:152.04mm
Tip height:9.92mm
Superback:10.08mm
Overall height:68.60mm
Bore size:11.12mm
Bore type:through
Trailing angle:60 degree
Blade height:50.48mm
Cutback:0.0mm
SP height angle:-1.50
Splitter height:23.20mm
8+8 blades
Forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
