| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TD02 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TD02 forward

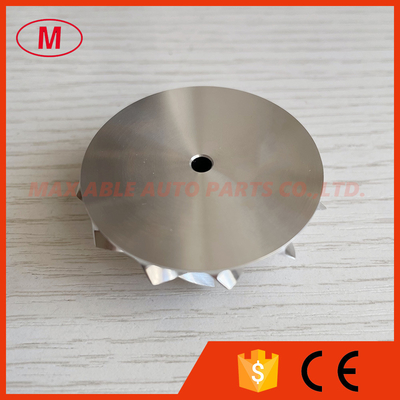

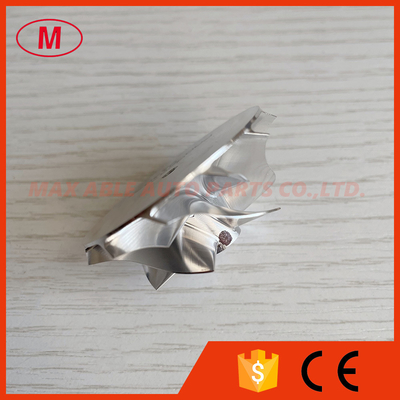

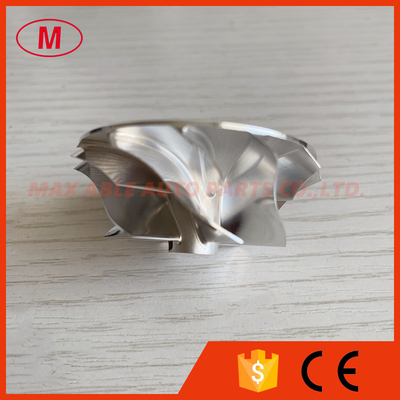

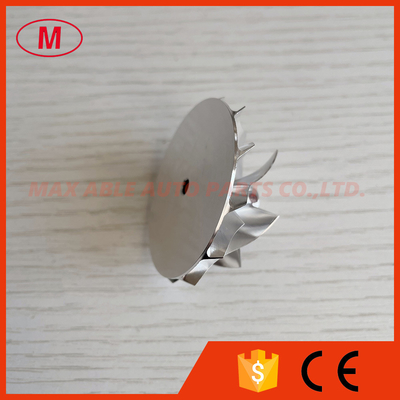

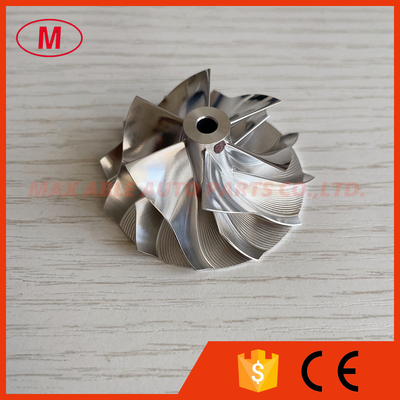

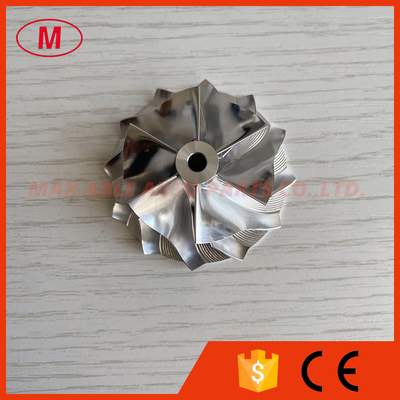

2.TD02 forward 35.65/46.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.55mm
Inducer:35.65mm
Exducer:46.00mm
Tapered tip exducer:49.42mm
Tip height:3.96mm
Superback:0.00mm
Overall height:19.53mm
Trailing angle:45 degree
Cutback:0.0mm
blade height:17.50mm
bore size :4.01mm
bore type: through
SP height angle:0.00
Splitter height:8.85mm
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
