S2B 314767 7+7 blades 52.07/76.18mm point milling milling/aluminum 2618/billet compressor wheel for SA6D108 Komatsu

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1. MODEL:S2B forward

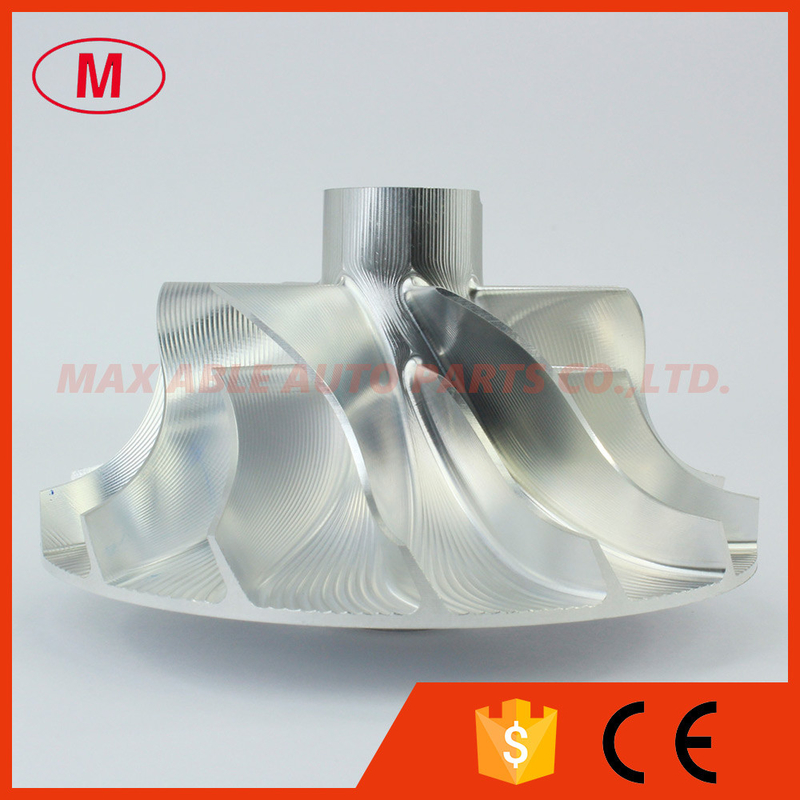

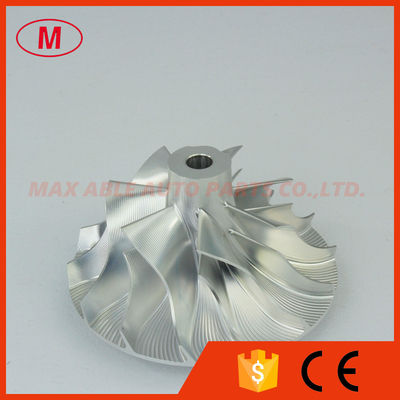

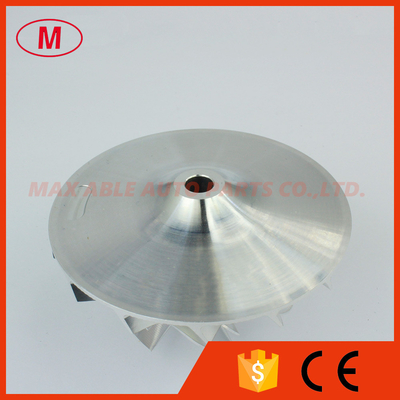

2.S2B 314767 7+7 blades 52.07/76.18mm point milling Turbo milling/aluminum 2618/billet compressor wheel for SA6D108 Komatsu WA300,350-3

3.Size:

Nose diameter:17.10mm

Inducer:52.07mm

exducer:76.18mm

Tip height:7.08mm

Superback:7.68mm

bore size :7.00mm

Overall height:46.22mm

Trailing angle:60

Blades height:28.50mm

Cutback:0.0

Splitter height:20.56mm

Sp height angle:0.00

7+7 blades forward

Tapered tip angle:0 degree

Fit for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

We can produce as your requirement ,the minimum order is 5pcs
