| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

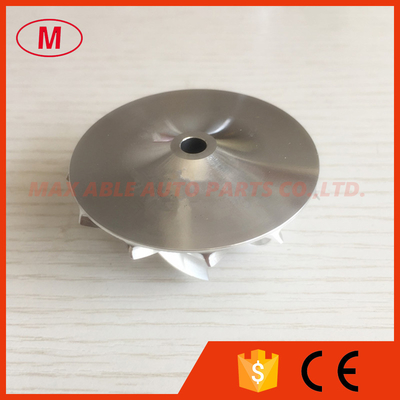

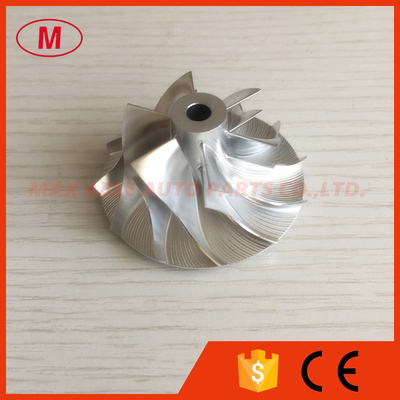

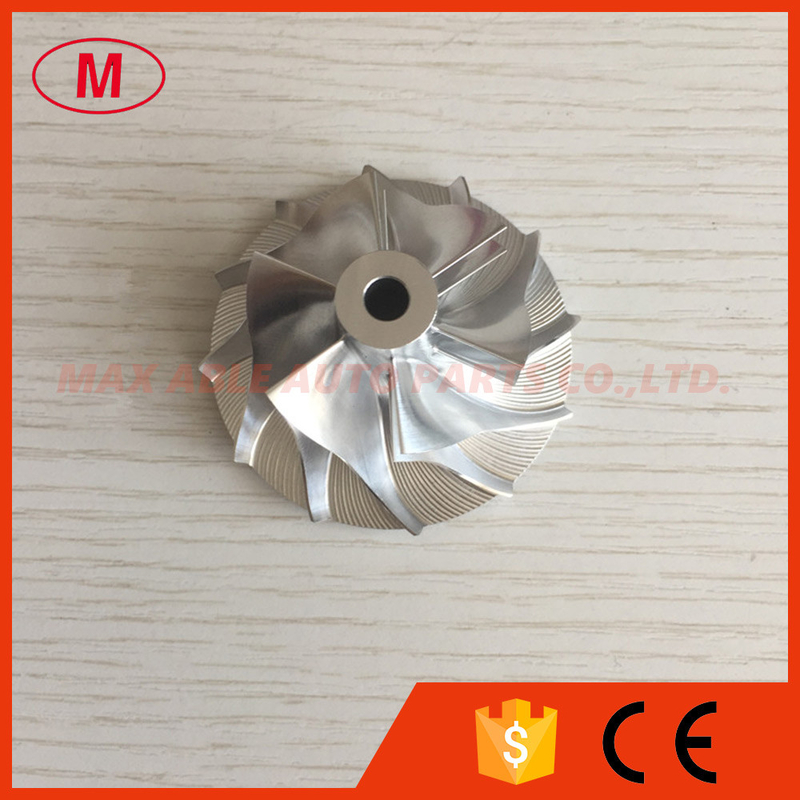

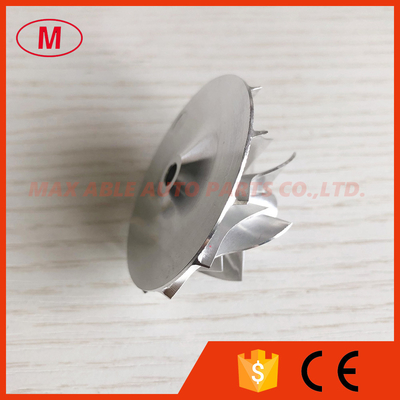

2.GT15-25 702489-0009/6/2 34.62/49.00mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for AUDI/VW 717858/717858/724930/750718
3.Size:
Nose diameter:11.76mm
inducer:34.62mm
Exduder:49.00mm
Tapered tip exducer:51.51mm
Tip height:3.18mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.00
SP height angle:-6.30
Blade height:19.02mm
Splitter height:13.20mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
717858
717858
724930
750718
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
