Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | RHF5 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
1. MODEL:RHF5 forward

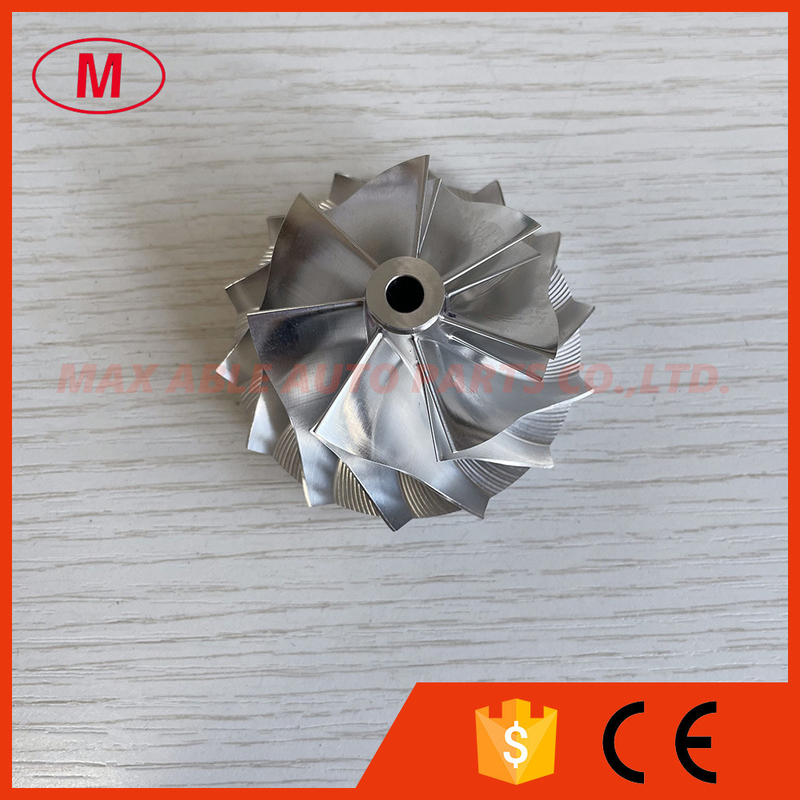

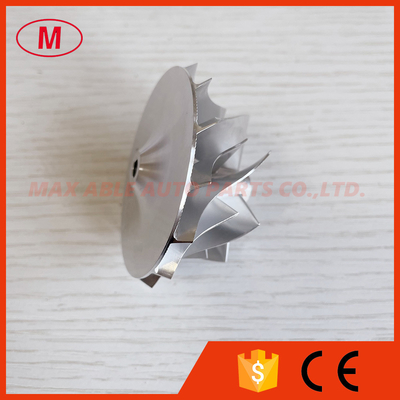

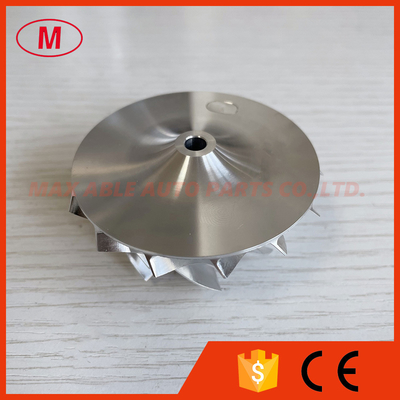

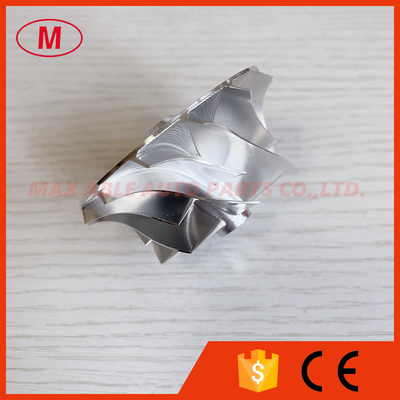

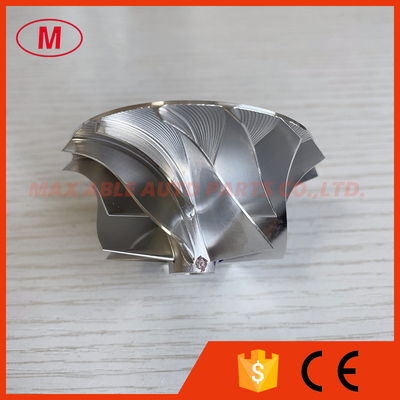

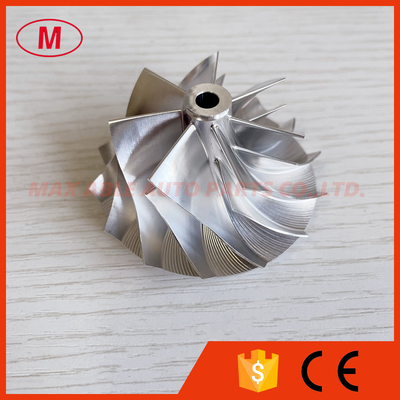

2.RHF5 44.20/58.00mm 7+7 blades high performance turbo turbocharger aluminum 2618/milling/billet compressor wheel
3.Size:
Nose diameter:10.50mm
Inducer:44.20mm
exducer:58.00mm
Tapered tip exducer:62.46mm
Tip height :4.87mm
superback:4.50mm
Overall height:33.70mm
Bore size:5.10mm
bore type:through
Trailing Angle:55 degree
Cutback:5.0mm
Sp height Angle:-6.60
Splitter Height:18.30mm
Blades height:26.55mm
7+7 blades
Forward rotation
Tapered tip angle: 30 degree
It is custom size,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
