1. MODEL:TD0435 Forward

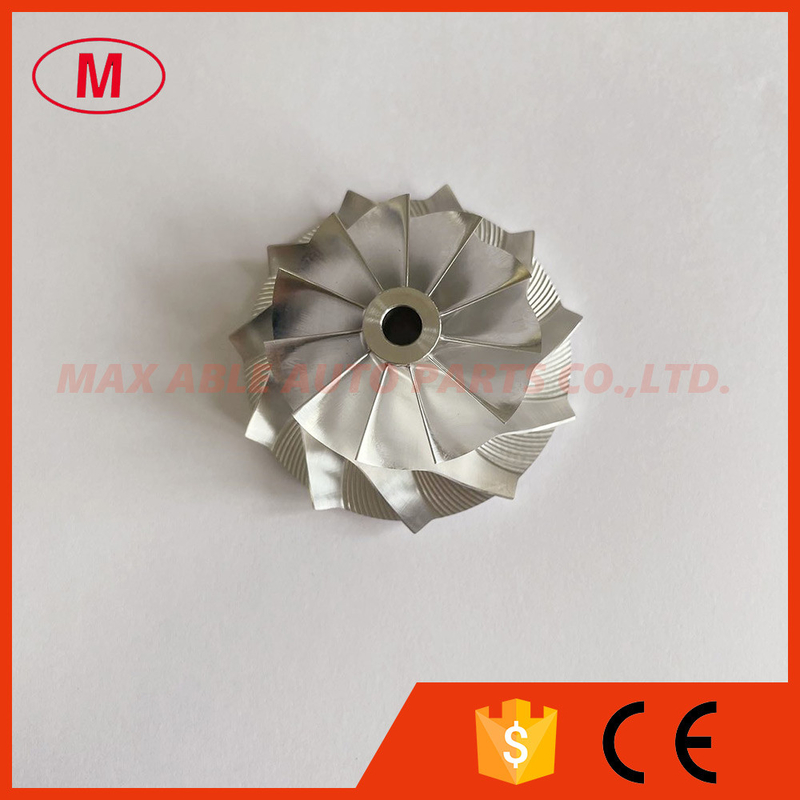

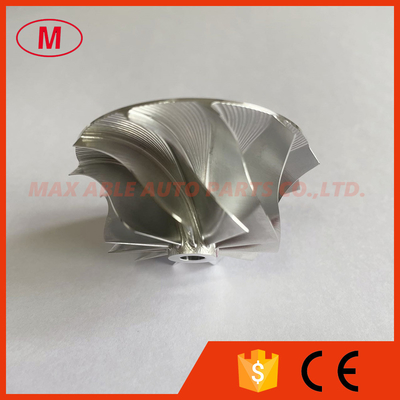

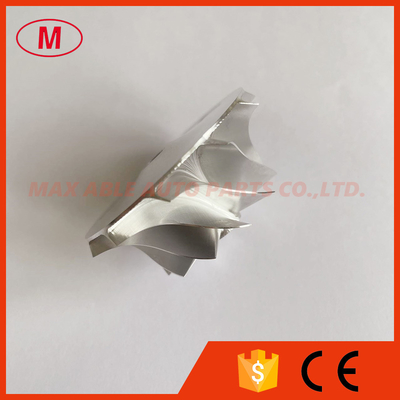

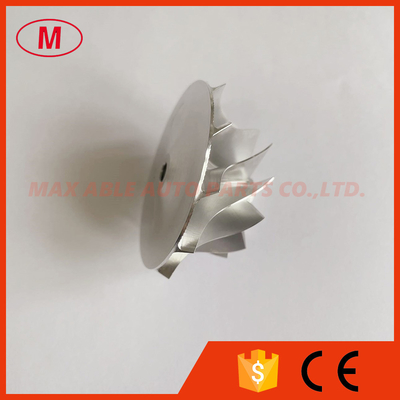

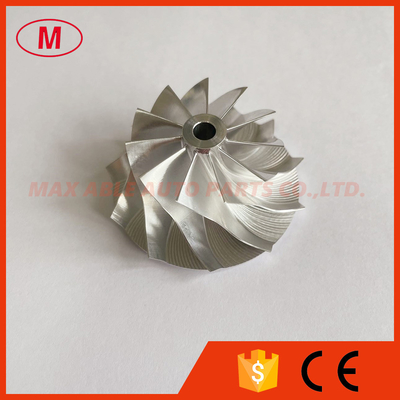

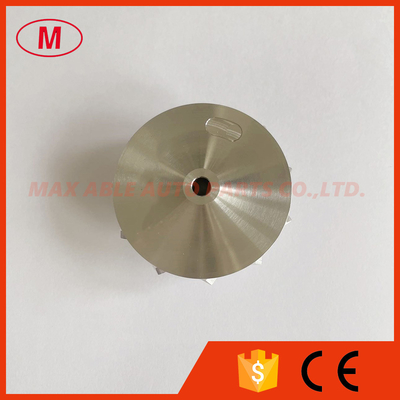

2.TD0435 10T-SB 35.50/49.00mm 11+0 blades high performance Turbo Milling/billet compressor wheel for 49135-04000
3.Size:
Nose Diameter:9.97mm
inducer:35.50mm
Exducer:49.00mm
Tapered tip exducer:52.58mm
Tip height:4.10mm
Overall height:24.00mm
Superback:1.90mm
Bore size:5.00mm
bore type:through
Trailing Angle:50 degree
Cutback:0.0mm
SP height angle:0.0
Blade height:20.40mm
Splitter height:0.00mm
Tapered tip Angle:30 degree
11+0 blades
Fit for OE compressor housing
Forward rotation
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
