Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | China |
Brand Name: | no |
Model Number: | RHG8V |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:RHG8V forward

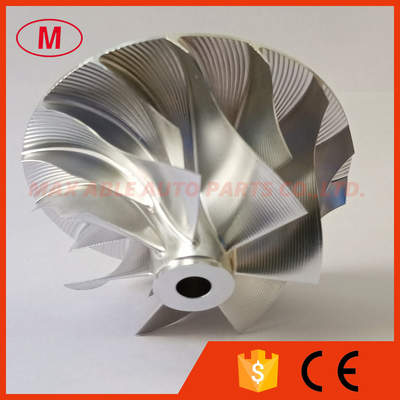

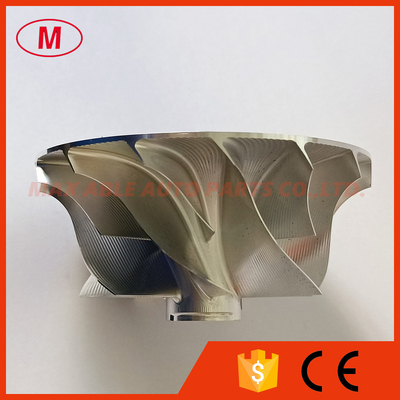

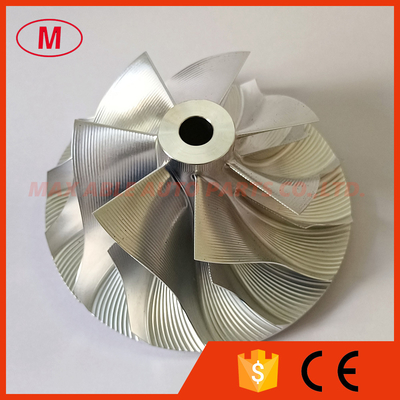

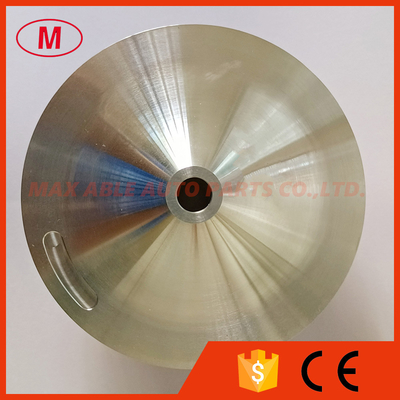

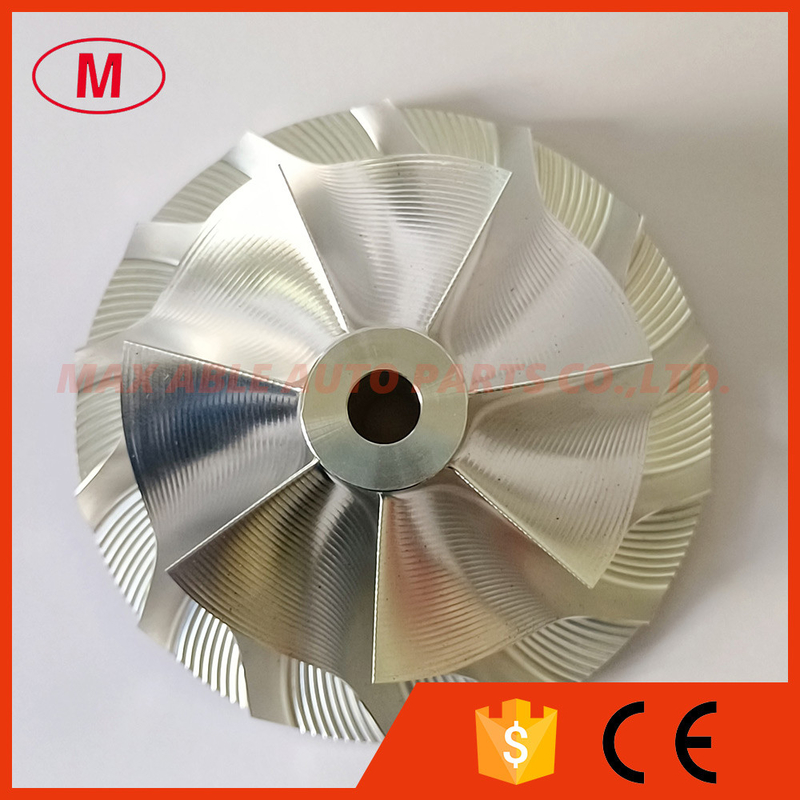

2.RHG8V 68.26/92.01mm 7+7blades point milling turbo billet/milling/aluminum 2618 compressor wheel for 1144004577 IHI VIGK 1610
GIGA Engine:6WGI Euro 5
3.Size:
Nose diameter:20.68mm
inducer:68.26mm
Exduder:92.01mm
Tip height:7.64mm
Superback:7.45mm
Overall height:50.96mm
bore size :9.01mm
bore type:through
Trailing Angle:50 degree
Cutback:1.0mm
Blade height:37.40mm
SP height Angle:1.80
Splitter height:22.10mm
7+7blades
forward rotation
It is for OE compressor housing
Tapered tip Angle: 0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirements
The more models we also have.
