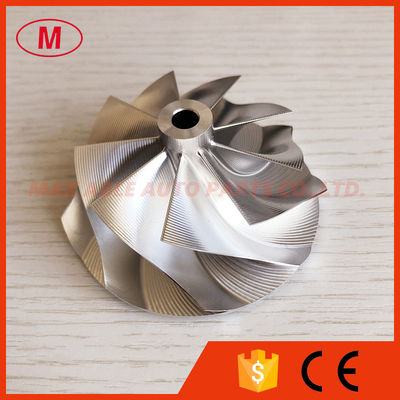

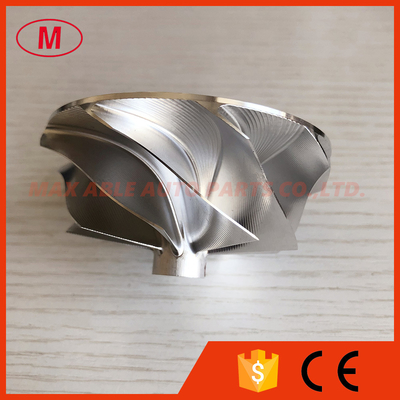

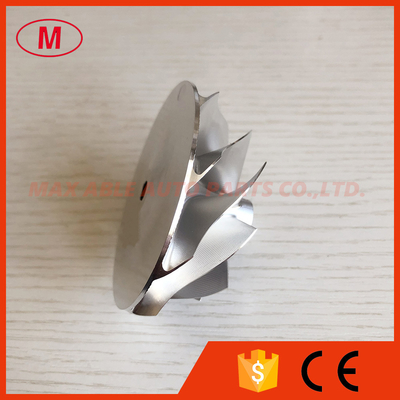

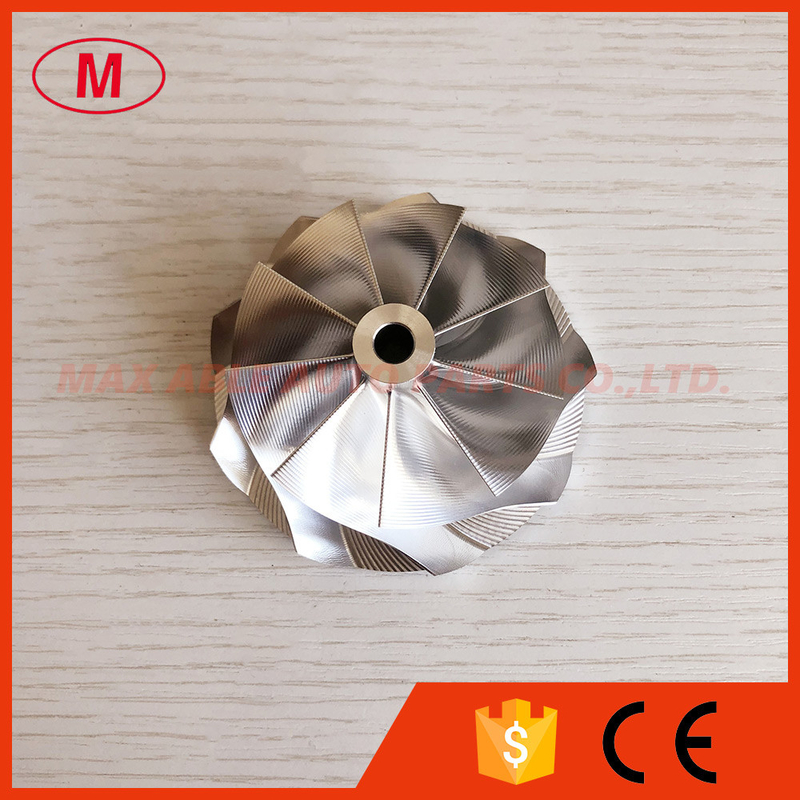

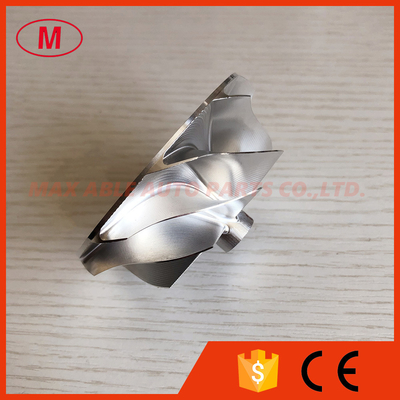

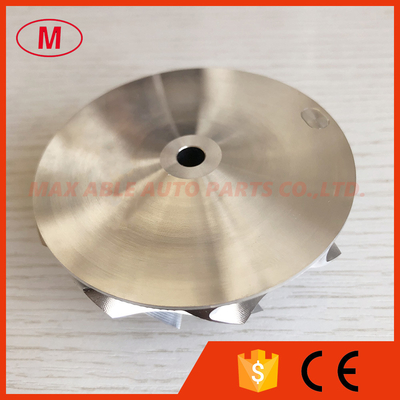

G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S

G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S

    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
    • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
  • G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S

    Product Details:

    Brand Name: NO
    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:G30-770 forward
    2.G30-770 57.52/71.40mm 9+0 blades point milling Billet/milling/aluminum 2618 compressor wheel for 880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
    3.Size:
    Nose diameter:13.15mm
    Inducer:57.52mm
    exducer:71.40mm
    Tapered tip exducer:73.98mm
    Tip height:7.58mm
    Superback:1.75mm
    bore size :6.35mm
    Overall height:35.23mm
    Cutback:6.70
    Trailing Angle:35
    SP height angle:0.00
    Splitter height:0.00
    Blade height:27.60mm
    9+0 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:11.4 degree
    Application:
    880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002SG30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002SG30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002SG30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002SG30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002SG30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel for 880693-5002S
