Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | China |
Brand Name: | no |
Model Number: | K04 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:K04 reverse

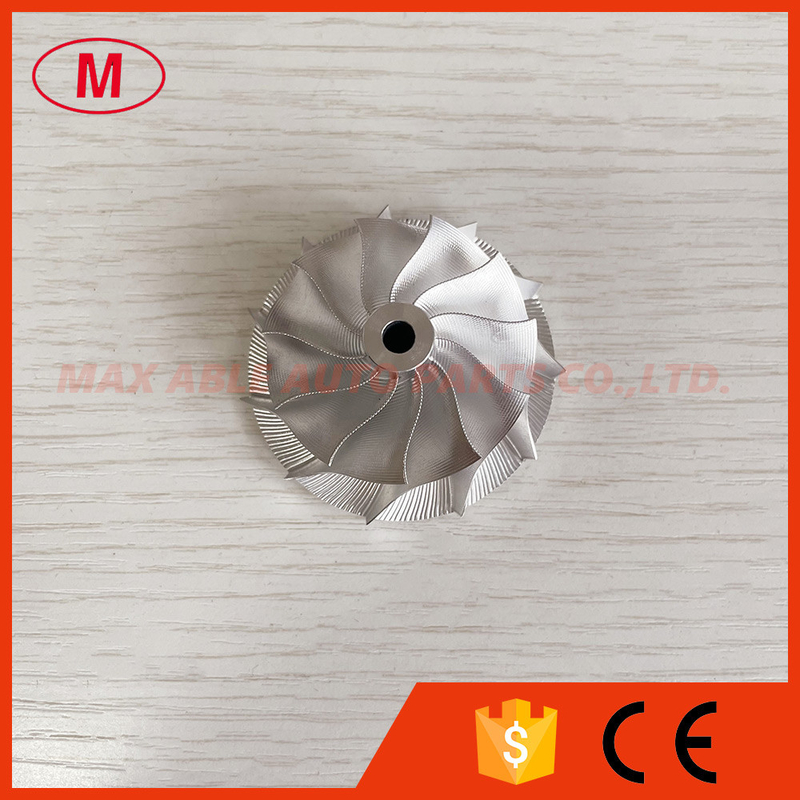

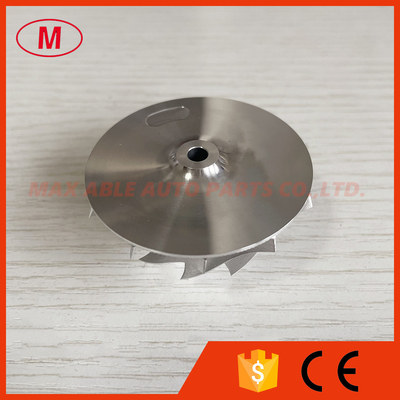

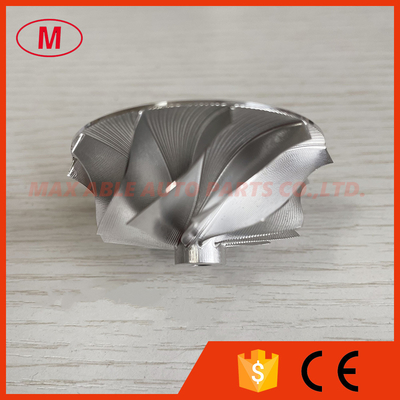

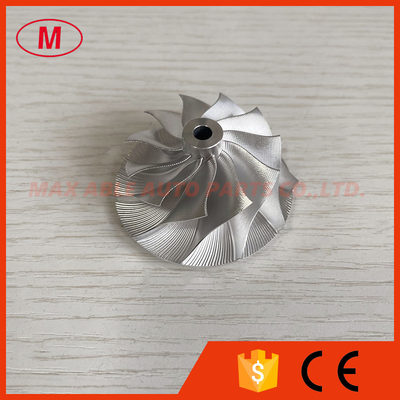

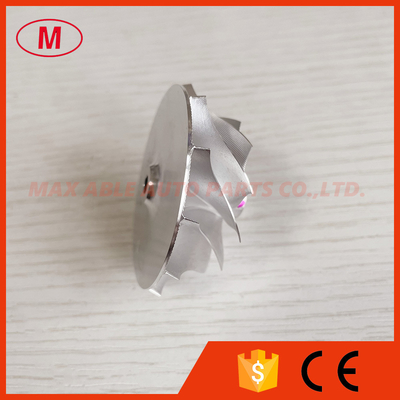

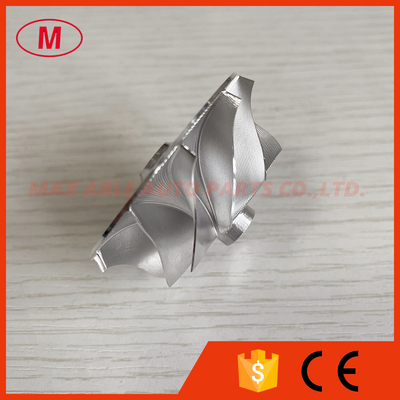

2.K04 reverse 40.80/51.00mm 11+0 blades Point Milling Snake Curve turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.16mm
inducer:40.80mm
Exduder:51.00mm
Tapered tip exducer:53.49mm
Tip height:4.45mm
Superback:2.60mm
Overall height:25.65mm
bore size :4.61mm
Bore type:through
Trailing Angle:35 degree
Cutback:7.5mm
Blades height:19.45mm
SP height Angle:0.00
Splitter height:0.00mm
11+0 blades
reverse rotation
Tapered tip angle:18.8 degree
It is for custom size ,please check carefully before buyig.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
The more models we also have.
