| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |

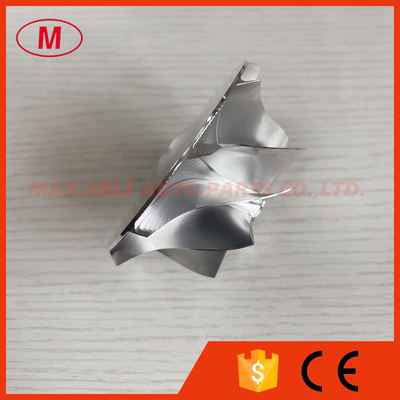

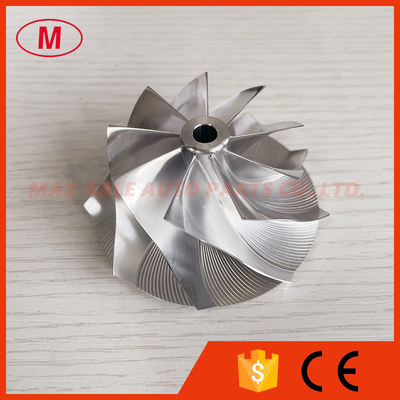

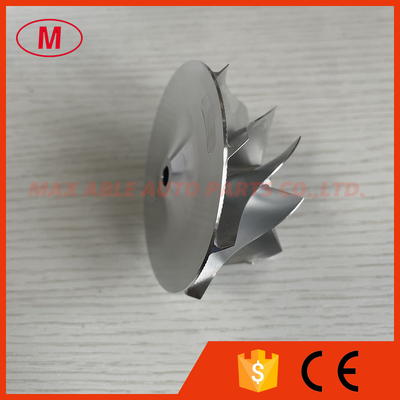

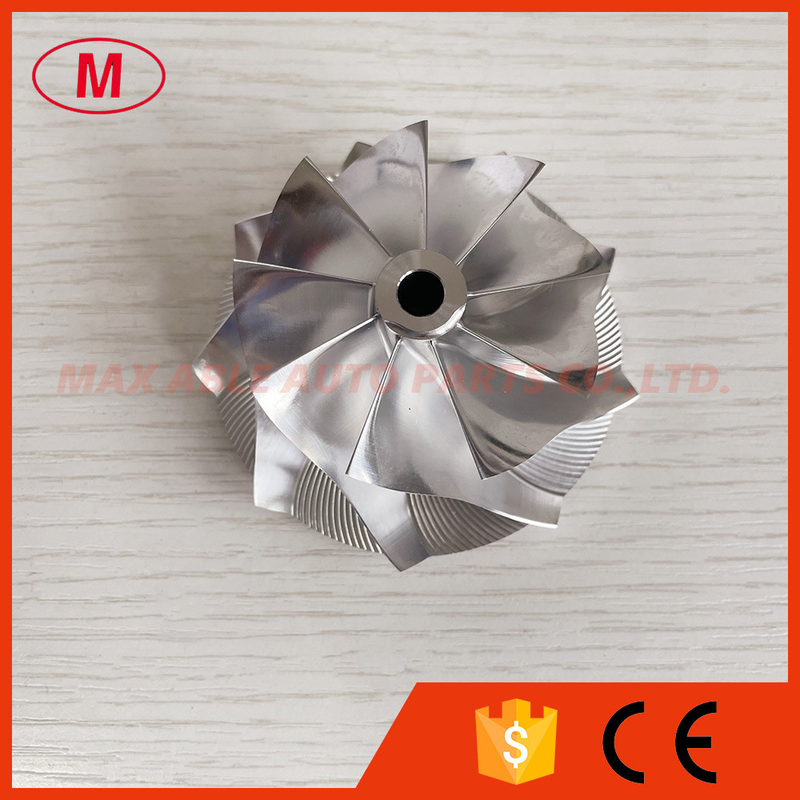

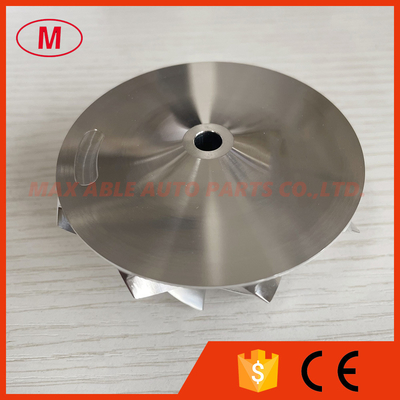

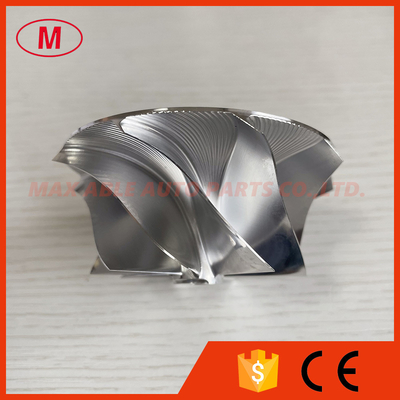

1.TD05H 54.06/71.40mm 9+0 blades high performance aluminum 2618/milling/billet compressor wheel
2.SIZE:
Nose diameter:12.80mm
inducer:54.06mm
Exducer:71.40mm
Tapered tip exducer :76.51mm
tip height:5.43mm
trailing angle:45 degree
Tip height:3.55mm
Superback:2.90mm
Overall height:35.14mm
bore size :6.50mm
Bore type:through
cutback:0.0
splitter height:0.00mm
sp height angle:0.00
Blade height:30.20mm
9+0 blades
It is custom size ,please check carefully before buying.
tapered tip angle:30 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
