| Brand Name: | no |
| Certification: | ISO |
| Model Number: | HE400VG |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:HE400VG Forward

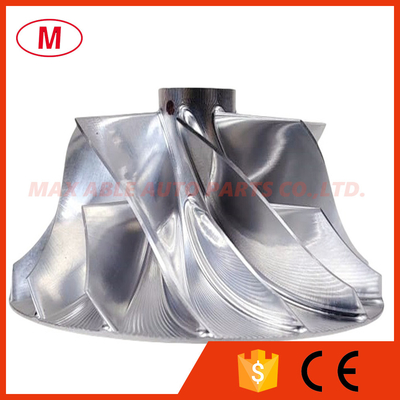

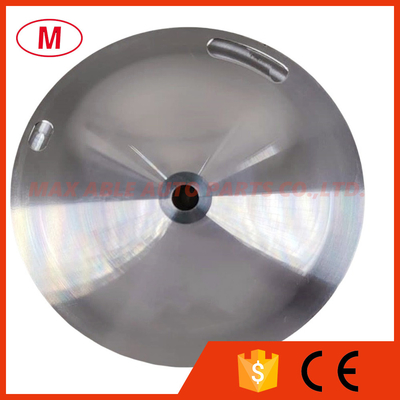

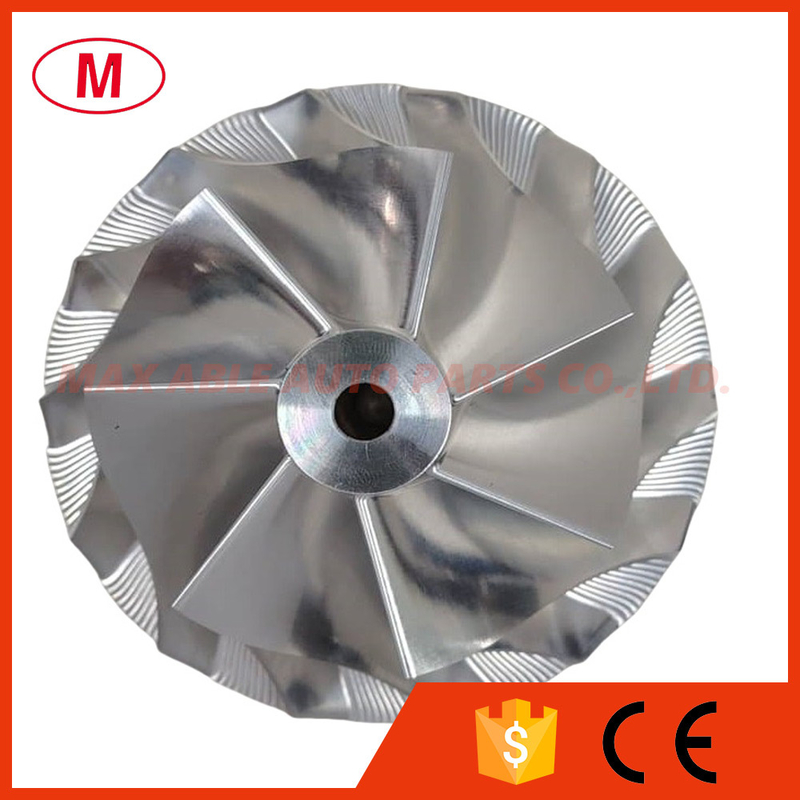

2.HE400VG 7+7 blades 67.30/93.00mm turbo billet/milling/aluminum 2618 compressor wheel
for 3775687, 3775690, 3775692, 3792914, 3792916, 3795154, 5350609, 5350636, 5350637, 2882083, 4105460 ISL engine
3.Size:
Nose diameter:20.05mm
Inducer:67.30mm
Exducer:93.00mm
Tip height:6.40mm
Superback:6.27mm
Overall height:44.90mm
Bore size:7.00mm
bore type:through
Trailing angle:40 degree
Cutback:3.5mm
SP height angle:1.00
Splitter height:18.20mm
Blade height:34.25mm
7+7 blades
Tapered tip angle:0 degree
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
We can produce as your requirements.
All the compressor wheels have been balanced
