| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | s300 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:S300 forward

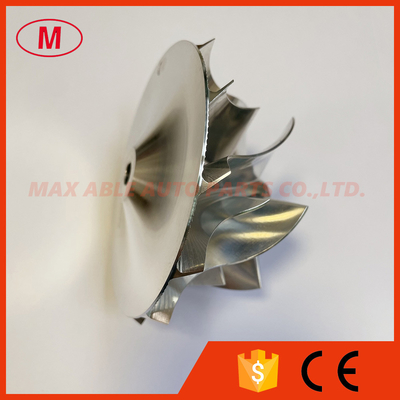

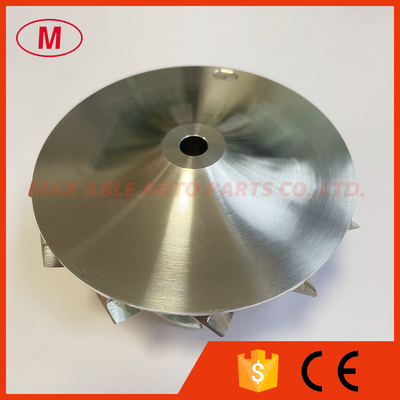

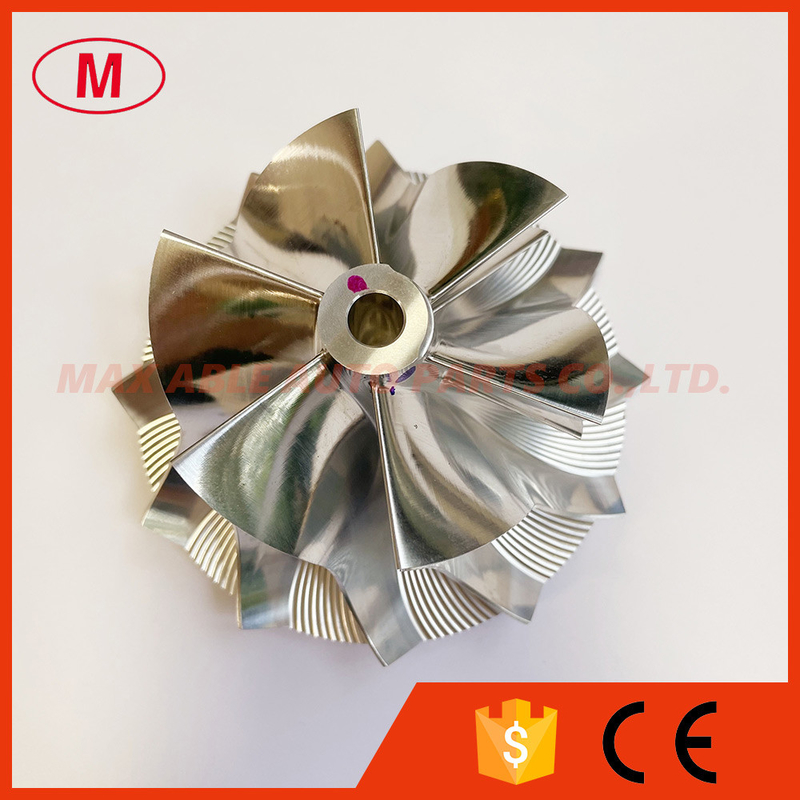

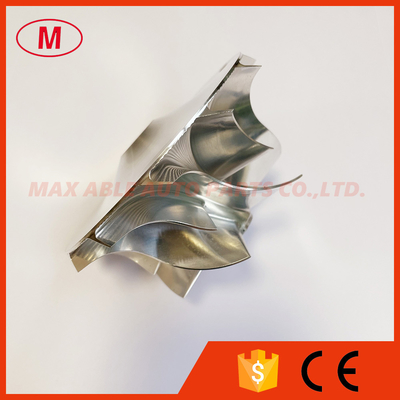

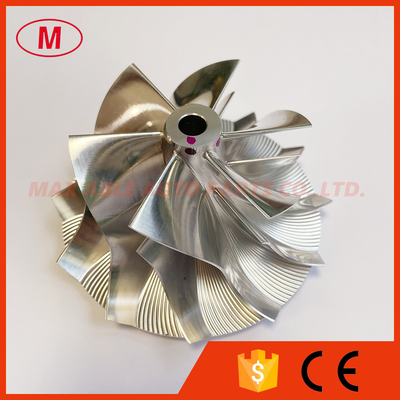

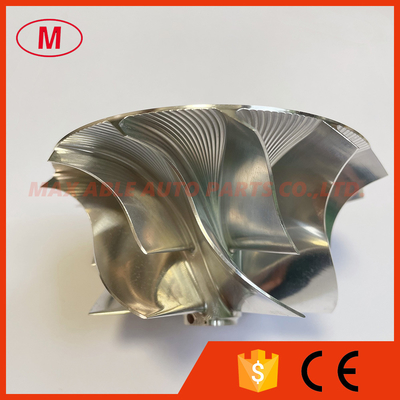

2.S300 69.66/93.35mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:16.55mm
inducer:69.66mm
Exduder:93.35mm
Tapered tip exducer:100.17mm
Tip height:6.91mm
Superback:6.95mm
Overall height:52.35mm
bore size :8.01mm
Bore type:through
Trailing Angle:45 degree
Cutback:-2.0mm
Blades height:42.71mm
SP height Angle:-8.30
Splitter height:28.95mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for custom size ,please check carefully before buyig.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
The more models we also have.
