Brand Name: | NO |
Certification: | ISO |
Model Number: | GT15-25 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |
1.Model:GT15-25 FORWARD

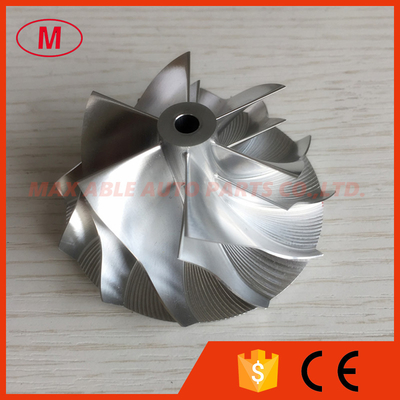

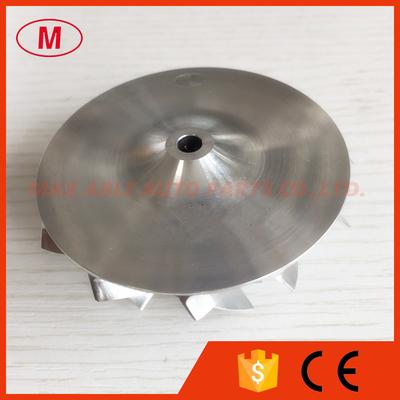

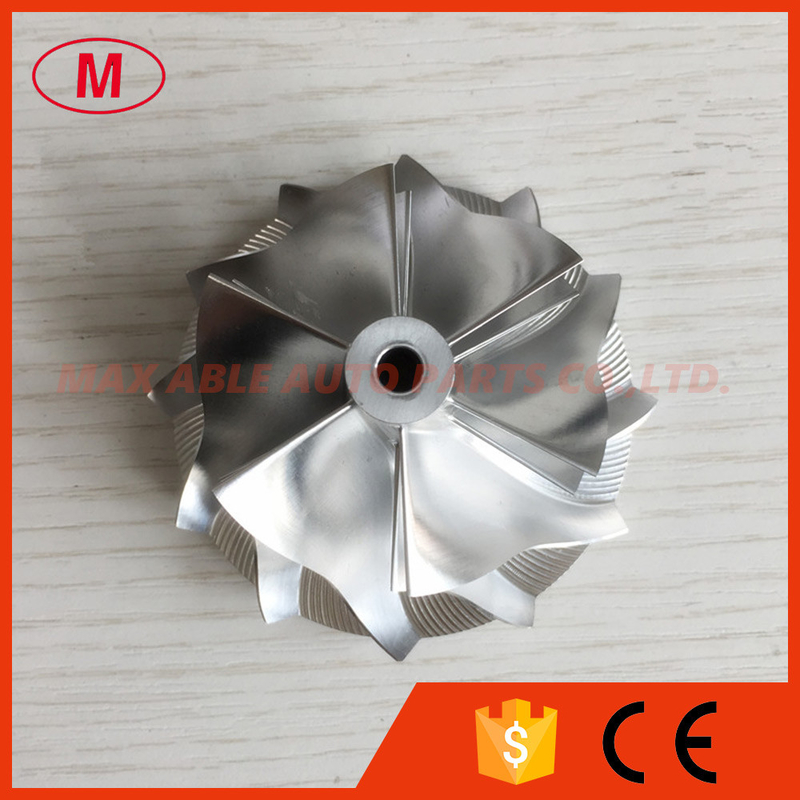

2. GT15-25 50.20/65.00mm 6+6 Blades 702549-0008HF V1 high performance turbo billet/aluminum 2618/milling compressor wheel for TOYOT-A
3.Size:
Nose diameter:12.43mm
Inducer:50.20mm
Exducer:65.00mm
Tapered tip exducer:69.83mm
Tip height:5.19mm
Superback:3.68mm
Overall height:32.28mm
Bore size:5.08mm
bore type:through
Trailing angle:60 degree
Cutback:1.0
SP Height angle:-4.50
Blades height:26.30mm
Splitter height:17.10mm
6+6 blades
foward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
702549-0008HF
All the compressor wheels have been balanced.
