| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
|
1. MODEL:GT15-25 forward

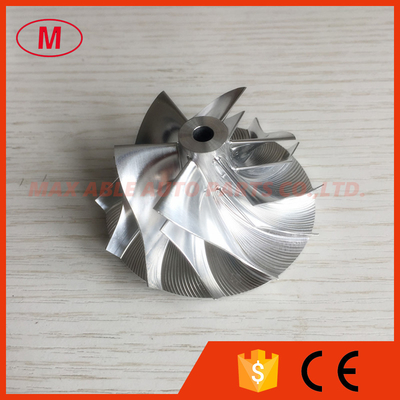

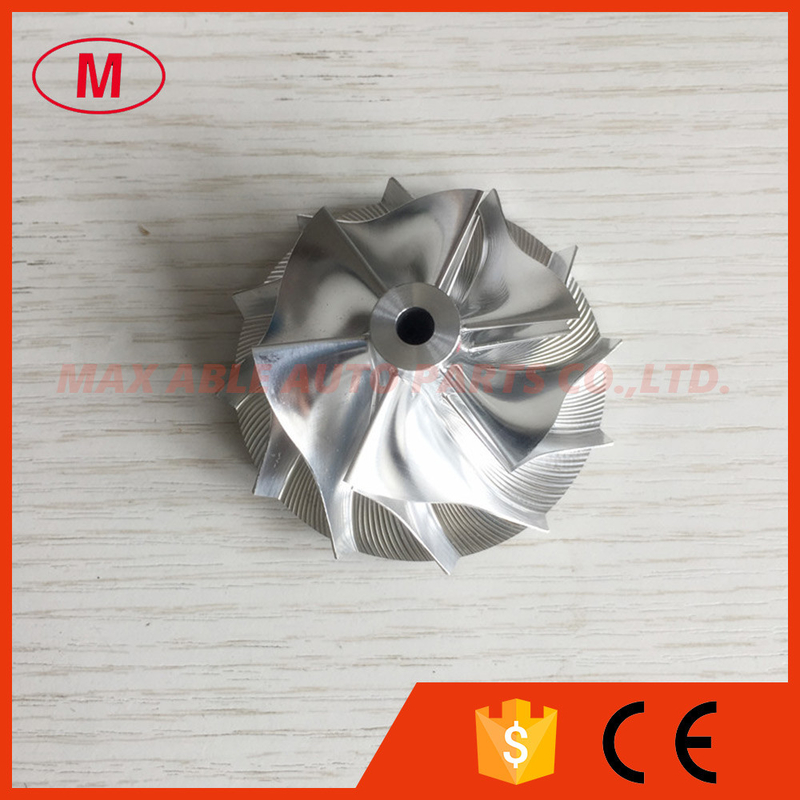

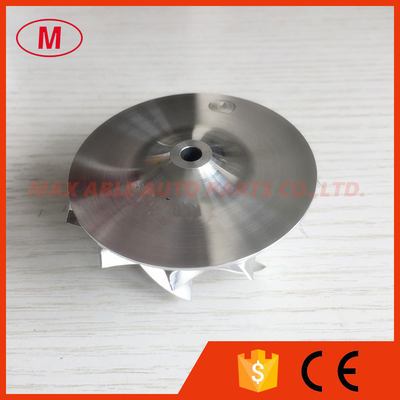

2.GT15-25 44.42/59.48mm 6+6 blades 702549-0008 High Performance Turbo Billet/milling/aluminum 2618 compressor wheel for 724483-0003/05/08/09/750001-0001
3.Size:
Nose diameter:12.13mm
Inducer:44.42mm
exducer:59.48mm
Tapered tip exducer:64.19mm
Tip height:5.08mm
Superback:3.68mm
bore size :5.08mm
bore type:through
Cutback:0.0
Overall height:32.38mm
Trailing Angle:70 degree
SP Height angle:-4.10
Blades height:25.72mm
Splitter height:16.95mm
6+6 blades
forward rotation
Tapered tip Angle:30 degree
Fit for OE compressor housing
Application:
724483-0003
724483-0005724483-0008 724483-0009 750001-0001
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
