Brand Name: | NO |
Model Number: | GT15-25 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
Size: | 47.56/61.98mm | Type: | Turbochargers |
---|
1.Model:GT15-25 Forward

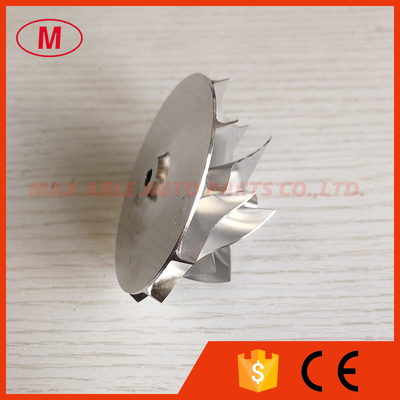

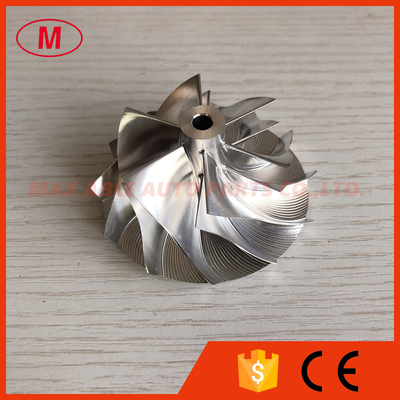

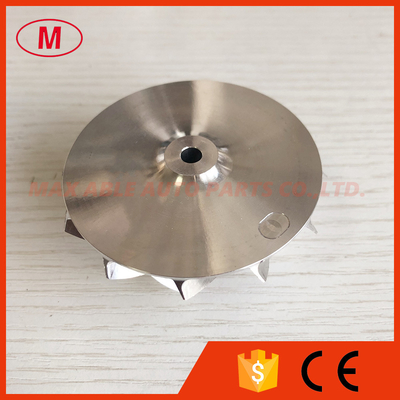

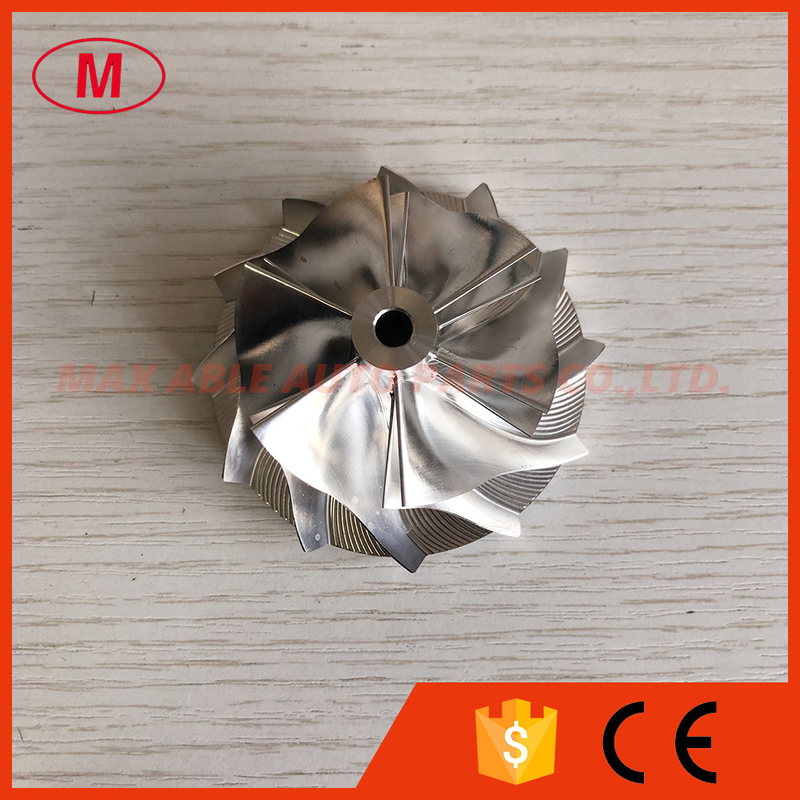

2. GT15-25 47.56/61.98mm 6+6 blades turbocharger turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.84mm
Inducer:47.56mm
Exducer:61.98mm
Tapered tip exducer:66.83mm
Tip height:5.20mm
Superback:2.67mm
Overall height:32.30mm
Bore size:5.08mm
bore type:through
Trailing angle:65 degree
Blade height:25.07mm
Cut back:3.0
Splitter height :17.90mm
SP height angle:-6.30
6+6 blades
Tapred tip angle:30 degree
It is for Cutom size ,please check carefully before buying.
4.Good quality and competitive price.
5.Forward rotation
6.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
We can produce as your requirement.
