| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TD05 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TD05 forward

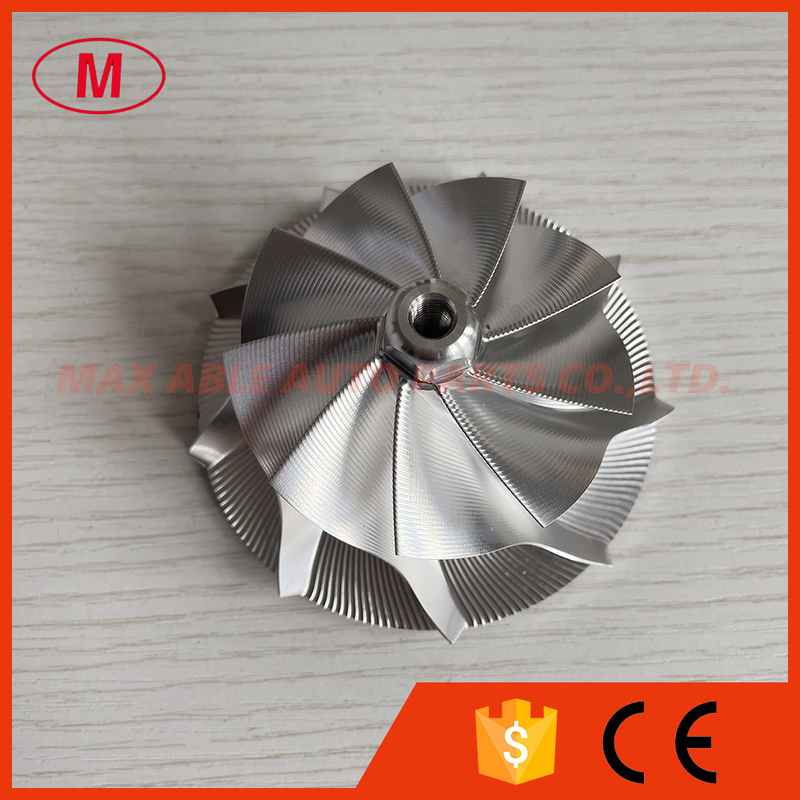

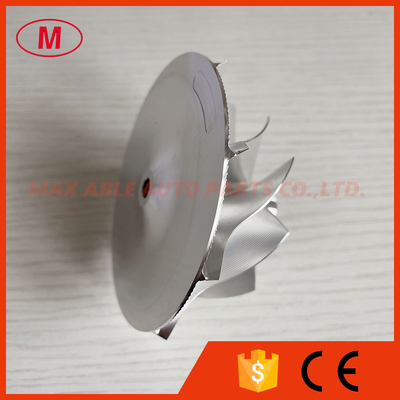

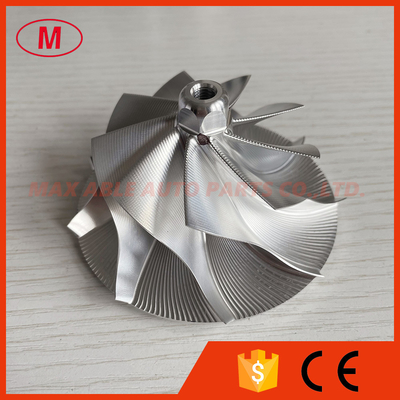

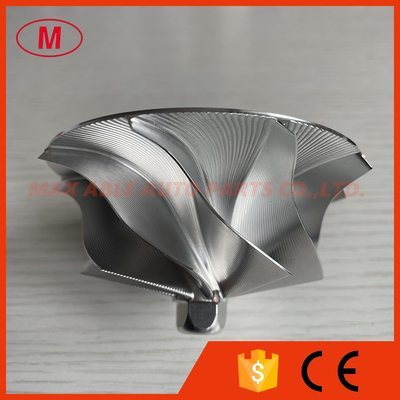

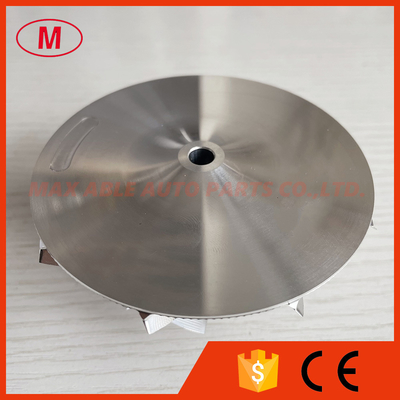

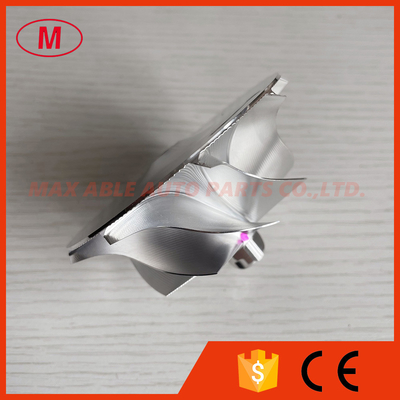

2. TD05 forward 64.40/86.00mm 9+0 blades point milling turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:15.05mm
inducer:64.40mm
exducer:86.00mm
tapered tip exducer:91.00mm
tip height:4.90mm
super back:2.90mm
Overall height:47.94mm
bore size :6.50mm
bore type:Threaded 1/4-28G-LHT
Trailing angle:60 degree
Cutback:12.0mm
Splitter height:0.00mm
SP height angle:0.00
blades height:35.15mm
9+0 blades
forward rotation
Tapered tip angle:32.7 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced
We can produce as your requirement.
