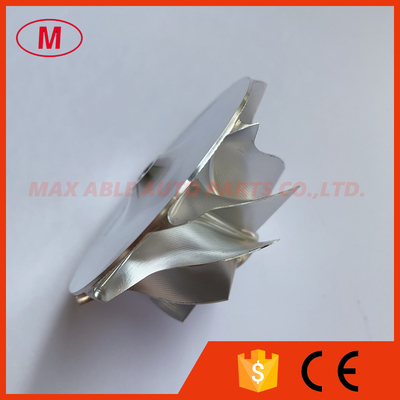

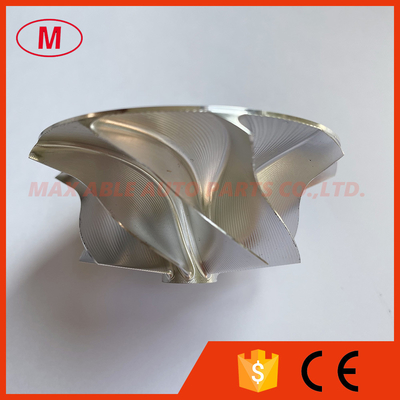

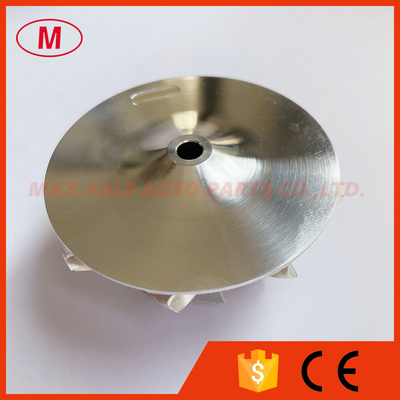

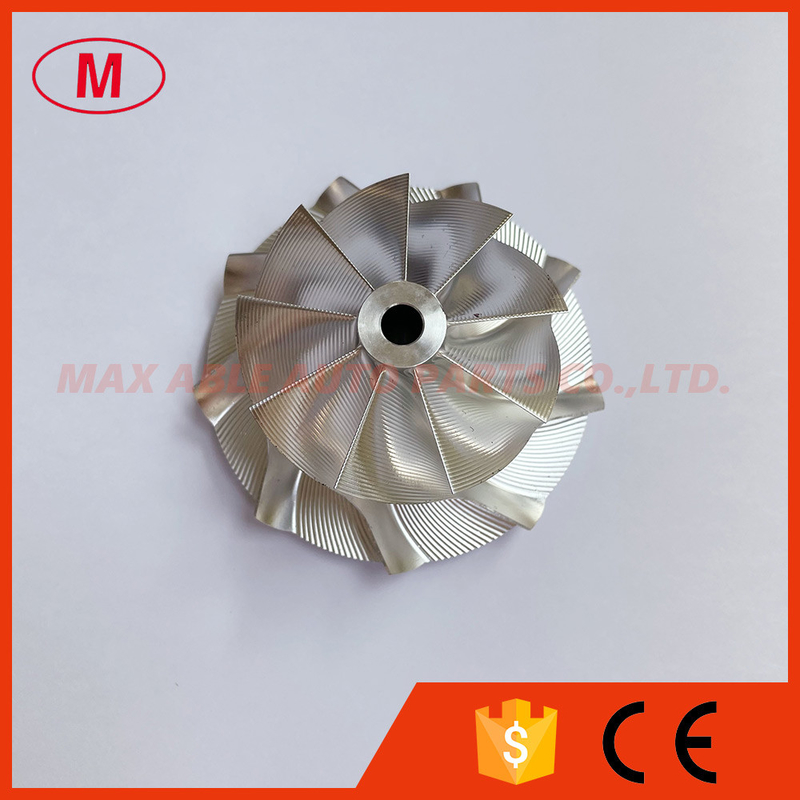

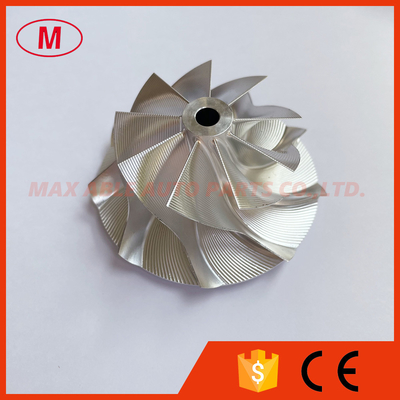

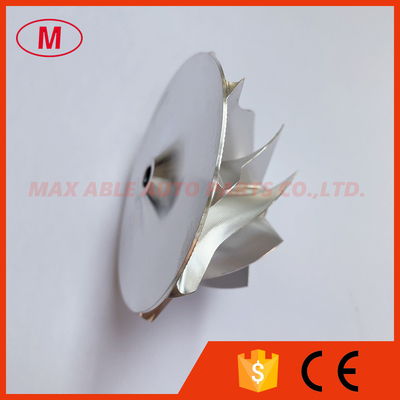

S100 50.00/68.01mm 9+0 blades point milling high performance turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1. MODEL:S100 forward

2.S100 50.00/68.01mm 9+0 blades point milling high performance turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:12.75mm

Inducer:50.00mm

exducer:68.01mm

Tapered tio exducer:71.57mm

Tip height:4.77mm

Superback:3.71mm

bore size :6.00mm

bore type:through

Overall height:34.00mm

Cutback:8.2mm

Trailing Angle:35 degree

Blades height:28.29mm

Splitter height:0.00mm

SP height angle:0.00

9+0 blades

forward rotation

It is custom size ,please check carefully before buying.

Tapered tip Angle:25.3 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
