| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
|
1. MODEL:T04E forward

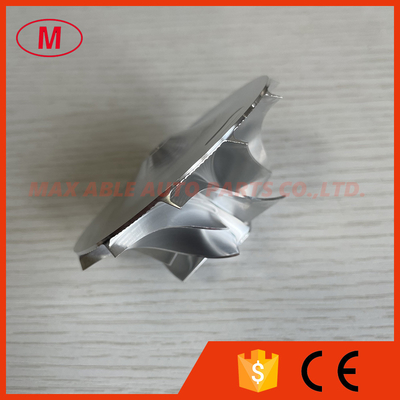

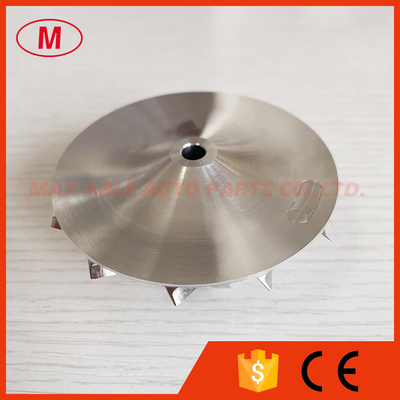

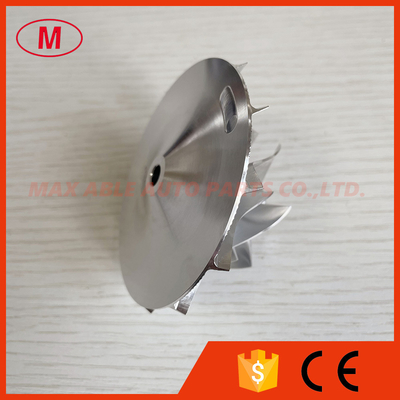

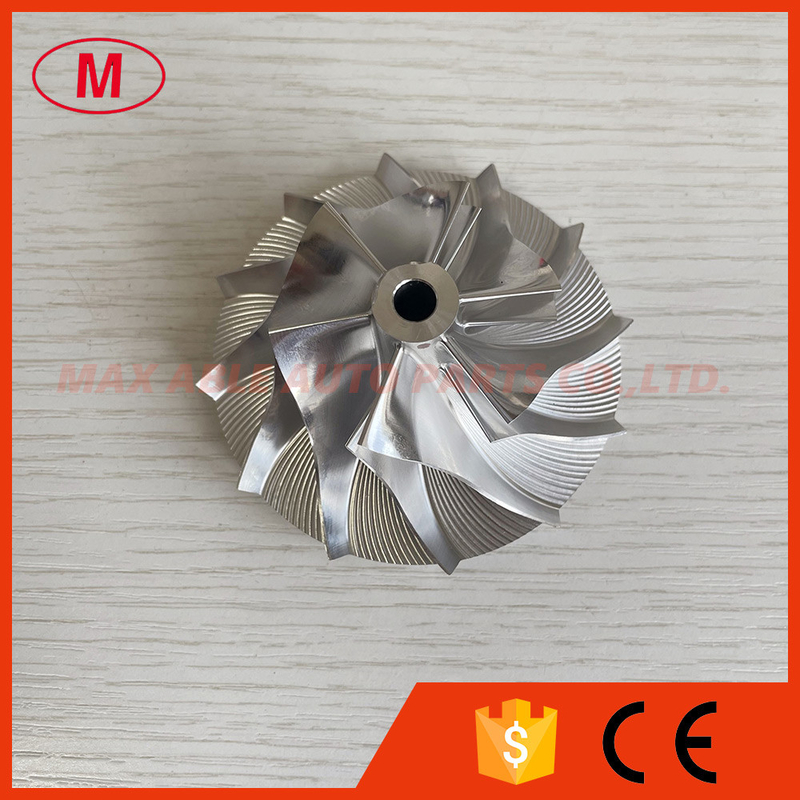

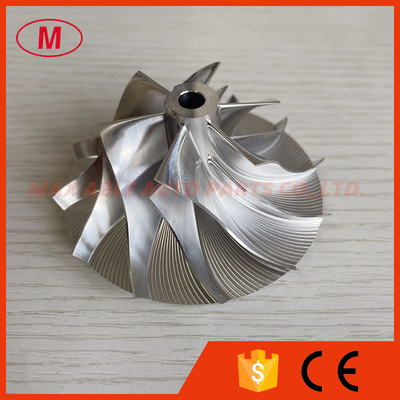

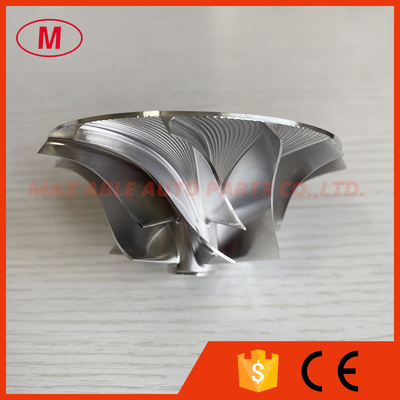

2.T04E 45.00/74.99mm 6+6 blades 442293-0002 high performance Turbo milling/aluminum 2618/billet compressor wheel for 452024-0003/452071-0001/0003/0006/452072-0001/452077-0002/0003/0004/0005/465403-0001/0003/0004/465425-0001/0002/0003/465443-0001/0002/0004/466970-0007
3.Size:
Nose diameter:13.05mm
Inducer:45.00mm
exducer:74.99mm
Tapered tip exducer:79.32mm
Tip height:4.75mm
Superback:4.96mm
bore size :6.35mm
bore type:through
Overall height:37.65mm
Trailing angle:65 degree
Cutback:6.0mm
Blades height:30.10mm
SP height Angle:-8.50
Splitter height:21.35mm
6+6 blades forward
Tapered tip Angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
